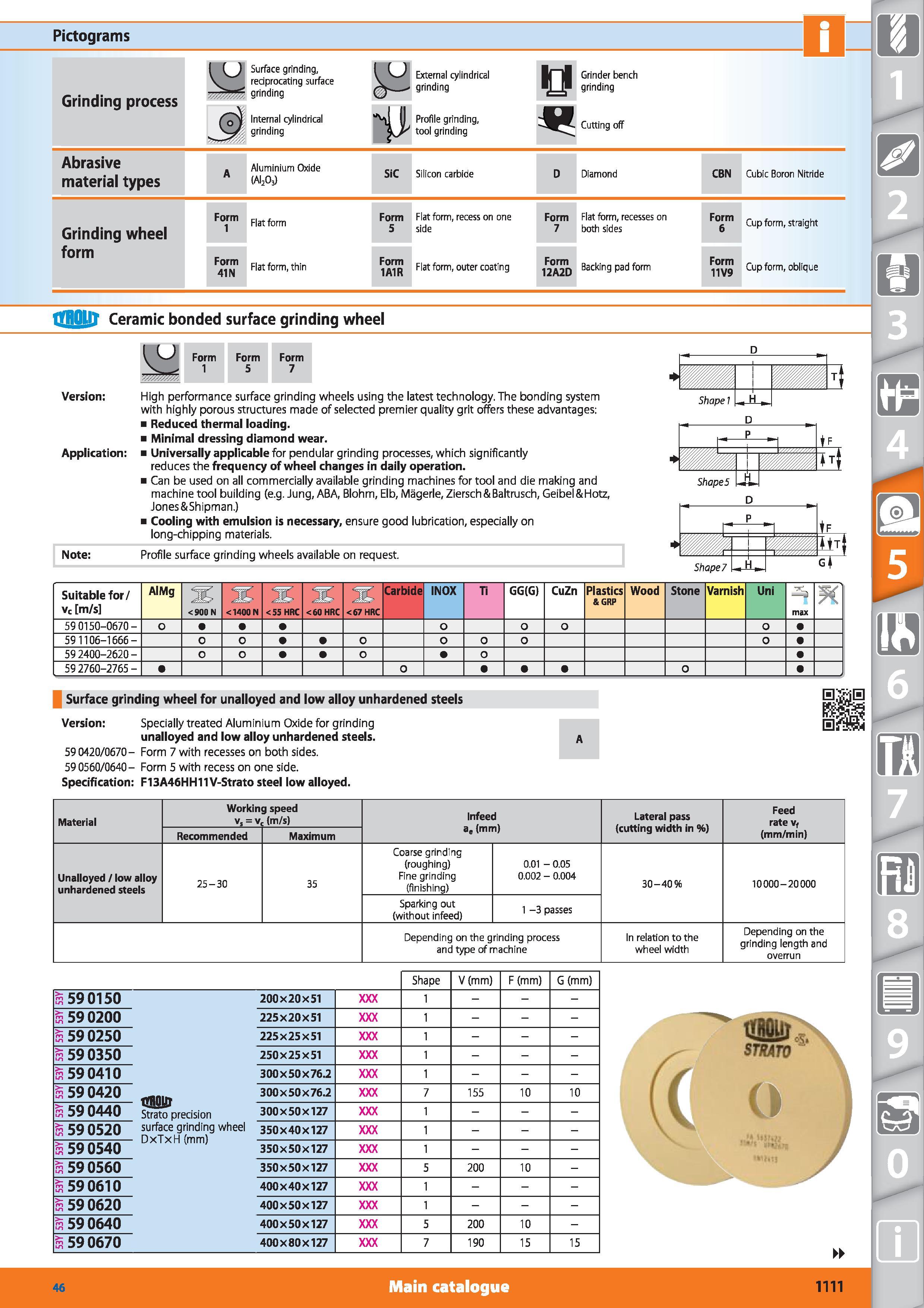

Pictograms Grinding process Abrasive material types Surface grinding, reciprocating surface grinding ii Aluminium Oxide SiC External cylindrical grinding Profile grinding, tool grinding Silicon carbide Grinder bench grinding Cutting off Diamond CBN Cubic Boron Nitride Grinding wheel Form 1 Flat form Form 5 Flat form, recess on one side Form 7 Flat form, recesses on both sides Form 6 Cup form, straight form Form 41N Flat form, thin Form 1A1R Flat form, outer coating Form 12A2D Backing pad form Form 11V9 Cup form, oblique trflOUl Ceramic bonded surface grinding wheel Form Form Form 1 5 7 Version Application High performance surface grinding wheels using the latest technology. The bonding system with highly porous structures made of selected premier quality grit offers these advantages Reduced thermal loading. Minimal dressing diamond wear. Universally applicable for pendular grinding processes, which significantly reduces the frequency of wheel changes in daily operation. Can be used on all commercially available grinding machines for tool and die making and machine tool building (e.g. Jung, ABA, Blohm, Elb, Magerle, Ziersch&Baltrusch, Geibel&Hotz, Jones&Shipman.) Cooling with emulsion is necessary, ensure good lubrication, especially on long-chipping materials. t Shape 1 , , Shape5 If Ti Note Profile surface grinding wheels available on request. tF iiiii + t Shape7 , i, Suitable for/ vc m/s AlMg <900 N <1400 N <55 HRC <60 HRC <67 HRC Carbide INOX Ti GG G) CuZn Plastics &GRP Wood Stone Varnish Uni -TT1 max 59 0150-0670 - 59 1106-1666- 0 59 2400-2620- 59 2760-2765- 0 0 Surface grinding wheel for unalloyed and low alloy unhardened steels Version Specially treated Aluminium Oxide for grinding unalloyed and low alloy unhardened steels. 590420/0670- Form 7 with recesses on both sides. 590560/0640- Form 5 with recess on one side. Specification F13A46HH11V-Strato steel low alloyed. Material Working speed vs vc (m/s) Infeed a, (mm) Lateral pass (cutting width in %) Feed rate vf Recommended Maximum (mm/m in) Unalloyed / low alloy unhardened steels 25-30 35 Coarse grinding (roughing) Fine grinding (finishing) 0.01 - 0.05 0.002 - 0.004 30-40% 10000 - 20000 Sparking out (without infeed) 1 -3 passes Depending on the grinding process and type of machine In relation to the wheel width Depending on the grinding length and overrun Shape V (mm) F (mm) G (mm) k 590150 200x20x51 1 - r 59 0200 225X20X51 1 - s 59 0250 225x25x51 1 - k 59 0350 250x25x51 1 - & 590410 300X 50X76.2 1 - a 59 0420 tfflStir Strato precision 300x 50x76.2 7 155 10 10 k 59 0440 300x50x127 1 - & 59 0520 surface grinding wheel DxTxH (mm) 350X40X127 1 - s 59 0540 350x50x127 1 - k 59 0560 350x50x127 5 200 10 - S 590610 400X 40X127 1 - n 59 0620 400x50x127 1 - k 59 0640 400X 50X127 5 200 10 - S 59 0670 400X80X127 7 190 15 15 Main catalogue Hoffmann Group 46 1111
