1109 Каталог HOFFMANN GROUP 2015 Инструмент режущий слесарный измерительный Стр.1109

Каталог HOFFMANN GROUP 2015 Tools Инструменты Ver 46 Стр. 1109 1109 ENG Lab2u

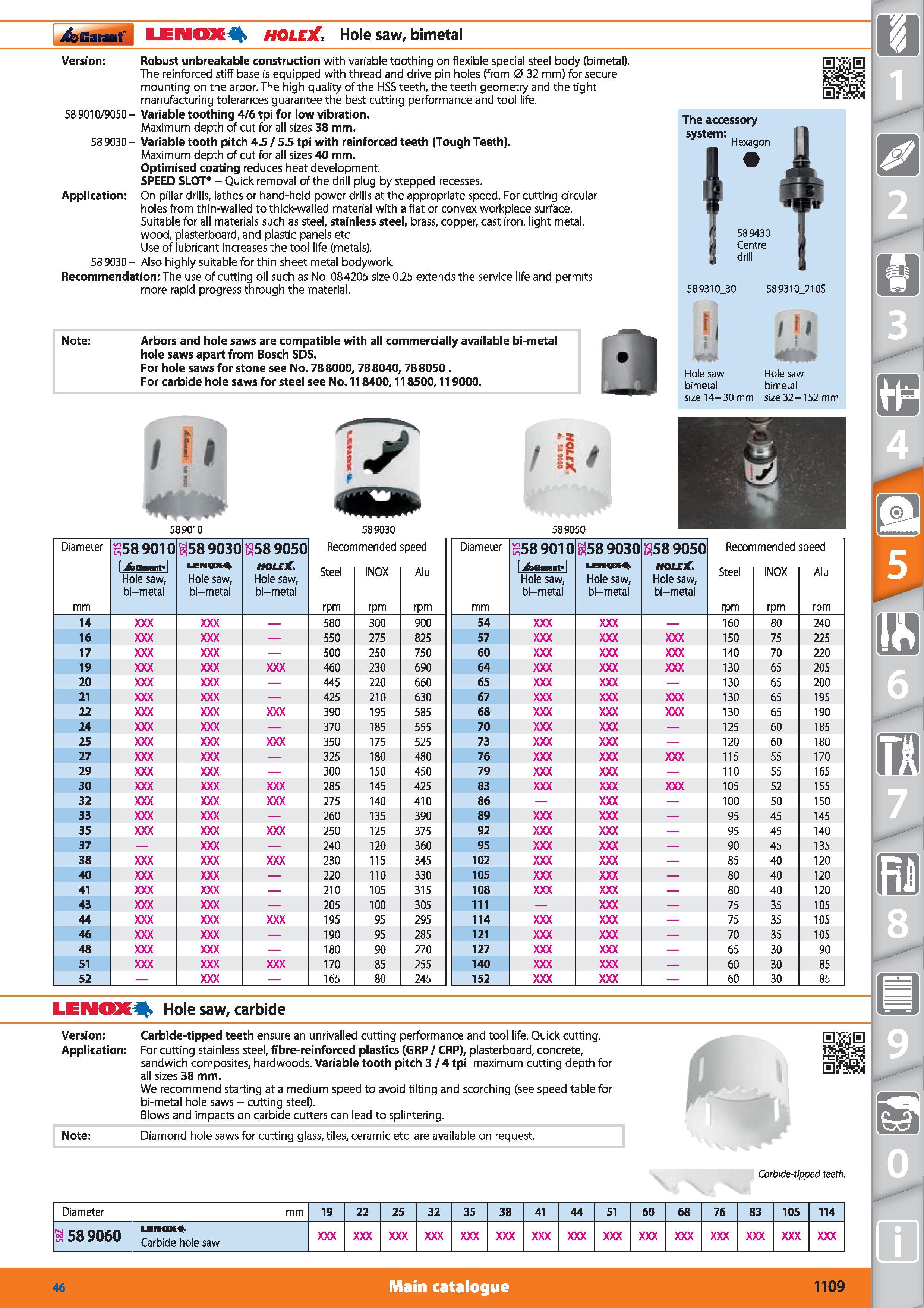

Garant LENOX > HOLEX Hole saw, bimetal Version Robust unbreakable construction with variable toothing on flexible special steel body (bimetal). The reinforced stiff base is equipped with thread and drive pin holes (from 0 32 mm) for secure mounting on the arbor. The high quality of the HSS teeth, the teeth geometry and the tight manufacturing tolerances guarantee the best cutting performance and tool life. 58 9010/9050 - Variable toothing 4/6 tpi for low vibration. Maximum depth of cut for all sizes 38 mm. 58 9030- Variable tooth pitch 4.5 / 5.5 tpi with reinforced teeth (Tough Teeth). Maximum depth of cut for all sizes 40 mm. Optimised coating reduces heat development. SPEED SLOT” - Quick removal of the drill plug by stepped recesses. Application On pillar drills, lathes or hand-held power drills at the appropriate speed. For cutting circular holes from thin-walled to thick-walled material with a flat or convex workpiece surface. Suitable for all materials such as steel, stainless steel, brass, copper, cast iron, light metal, wood, plasterboard, and plastic panels etc. Use of lubricant increases the tool life (metals). 58 9030- Also highly suitable for thin sheet metal bodywork Recommendation The use of cutting oil such as No. 084205 size 0.25 extends the service life and permits more rapid progress through the material. The accessory system 589310_30 589310_2105 Note Arbors and hole saws are compatible with all commercially available bi-metal hole saws apart from Bosch SDS. For hole saws for stone see No. 788000,788040,788050 For carbide hole saws for steel see No. 118400,118500,119000. J Hole saw bimetal size14-30mm size32-152mm 589010 589030 / it/ 589050 I Diameter 58 9010 -58 9030 8589050 Recommended speed Diameter 58 9010 8589030 58 9050 Recommended speed 1 ifbGnnt' LfNOX HOLEX Steel INOX Alu 1 ifbGnnt' wot HOLEX Steel INOX Alu Hole saw, bi-metal Hole saw, bi-metal Hole saw, bi-metal Hole saw, bi-metal Hole saw, bi-metal Hole saw, bi-metal mm rpm rpm rpm mm rpm rpm rpm 14 580 300 900 54 160 80 240 16 550 275 825 57 150 75 225 17 500 250 750 60 140 70 220 19 460 230 690 64 130 65 205 20 445 220 660 65 130 65 200 21 425 210 630 67 130 65 195 22 390 195 585 68 130 65 190 24 370 185 555 70 125 60 185 25 350 175 525 73 120 60 180 27 325 180 480 76 115 55 170 29 300 150 450 79 110 55 165 30 285 145 425 83 105 52 155 32 275 140 410 86 100 50 150 33 260 135 390 89 95 45 145 35 250 125 375 92 95 45 140 37 240 120 360 95 90 45 135 38 230 115 345 102 85 40 120 40 220 110 330 105 80 40 120 41 210 105 315 108 80 40 120 43 205 100 305 111 75 35 105 44 195 95 295 114 75 35 105 46 190 95 285 121 70 35 105 48 180 90 270 127 65 30 90 51 170 85 255 140 60 30 85 52 165 80 245 152 60 30 85 LENOX Hole saw, carbide Version Application Carbide-tipped teeth ensure an unrivalled cutting performance and tool life. Quick cutting. For cutting stainless steel, fibre-reinforced plastics (GRP / CRP), plasterboard, concrete, sandwich composites, hardwoods. Variable tooth pitch 3 / 4 tpi maximum cutting depth for all sizes 38 mm. We recommend starting at a medium speed to avoid tilting and scorching (see speed table for bi-metal hole saws - cutting steel). Blows and impacts on carbide cutters can lead to splintering. Note Diamond hole saws for cutting glass, tiles, ceramic etc. are available on request. Carbide-tipped teeth. Diameter mm 19 22 25 32 35 38 41 44 51 60 68 76 83 105 114 8 589060 LiiKnf Carbide hole saw Main catalogue Hoffmann Group 46 1109
