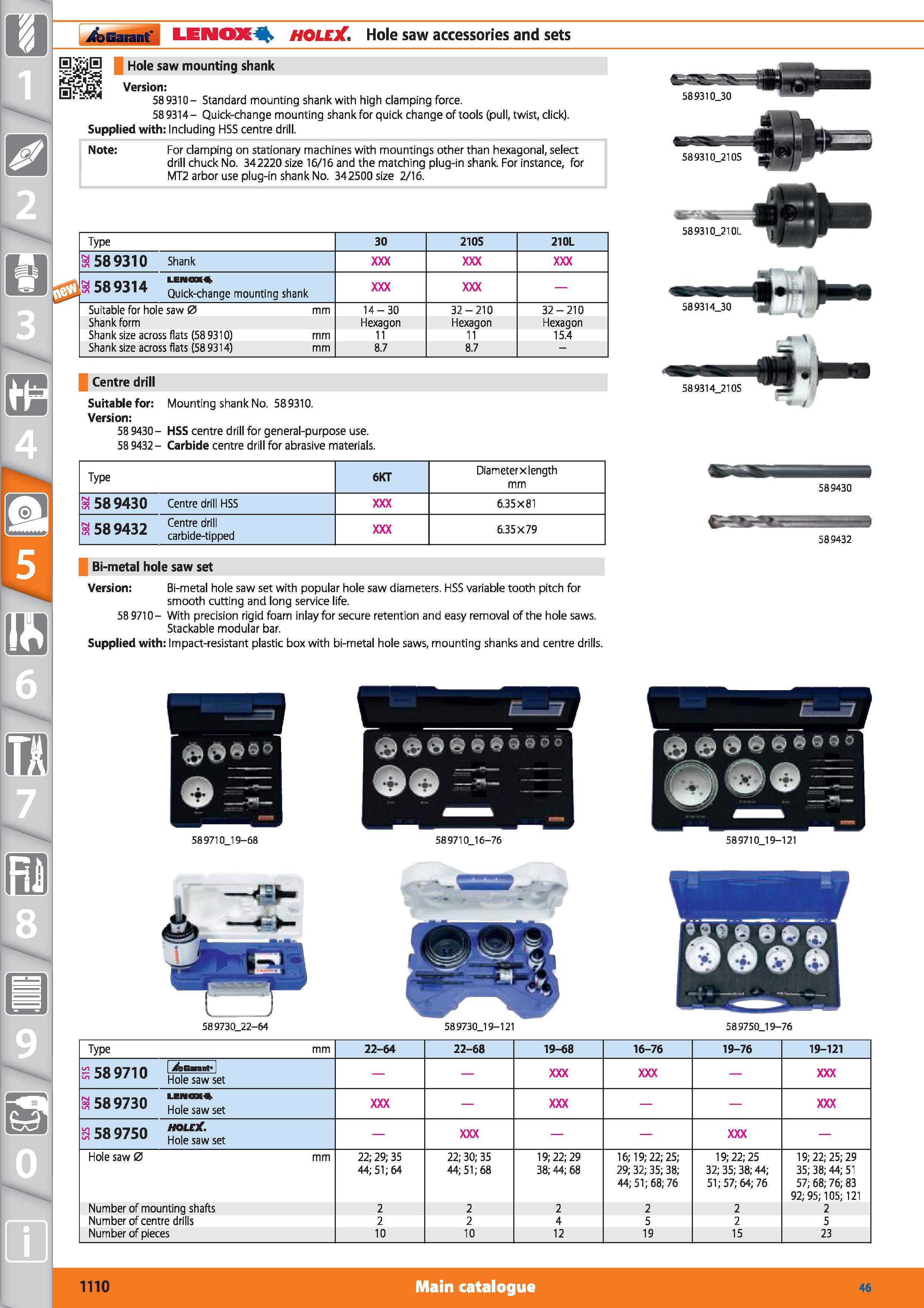

Garant LENOX4 HOLEX Hole saw accessories and sets Hole saw mounting shank Version 589310- Standard mounting shank with high clamping force. 589314- Quick-change mounting shank for quick change of tools (pull, twist, click). Supplied with Including HSS centre drill. Note For clamping on stationary machines with mountings other than hexagonal, select drill chuck No. 342220 size 16/16 and the matching plug-in shank. For instance, for MT2 arbor use plug-in shank No. 342500 size 2/16. 589310_30 Type 30 210S 210L 3 58 9310 Shank S 589314 10 Quick-change mounting shank Suitable for hole saw 0 mm 14-30 32-210 32-210 Shank form Flexagon Flexagon Hexagon Shank size across flats (589310) mm 11 11 15.4 Shank size across flats (58 9314) mm 8.7 8.7 - m Centre drill Suitablefor Mounting shank No. 589310. Version 58 9430- HSS centre drill for general-purpose use. 58 9432 - Carbide centre drill for abrasive materials. Type 6KT Diameterx length mm 589430 "589430 Centre drill HSS 6.35x81 s 58 9432 Centre drill carbide-tipped 6.35x79 589432 Bi-metal hole saw set Version Bi-metal hole saw set with popular hole saw diameters. HSS variable tooth pitch for smooth cutting and long service life. 58 9710 - With precision rigid foam inlay for secure retention and easy removal of the hole saws. Stackable modular bar. Supplied with Impact-resistant plastic box with bi-metal hole saws, mounting shanks and centre drills. 58 9710_19-68 58 9710_16-76 589710_19-121 58 9730_22-64 589730J 9-121 589750J9-76 Type mm 22-64 22-68 19-68 16-76 19-76 19-121 589710 1 ifbGnnt' 1 Hole saw set "589730 UIMK4 Hole saw set s 58 9750 HOLEX Hole saw set Hole saw 0 mm 22; 29; 35 44; 51; 64 22; 30; 35 44; 51; 68 19; 22; 29 38; 44; 68 16; 19; 22; 25; 29; 32; 35; 38; 44; 51; 68; 76 19; 22; 25 32; 35; 38; 44; 51; 57; 64; 76 19; 22; 25; 29 35; 38; 44; 51 57; 68; 76; 83 92; 95; 105; 121 Number of mounting shafts 2 2 2 2 2 2 Number of centre drills 2 2 4 5 2 5 Number of pieces 10 10 12 19 15 23 1110 Main catalogue Hoffmann Group 46 589310_210S 58 9310_21 OL 589314_30 589314_210S
