1093 Каталог HOFFMANN GROUP 2015 Инструмент режущий слесарный измерительный Стр.1093

Каталог HOFFMANN GROUP 2015 Tools Инструменты Ver 46 Стр. 1093 1093 ENG Lab2u

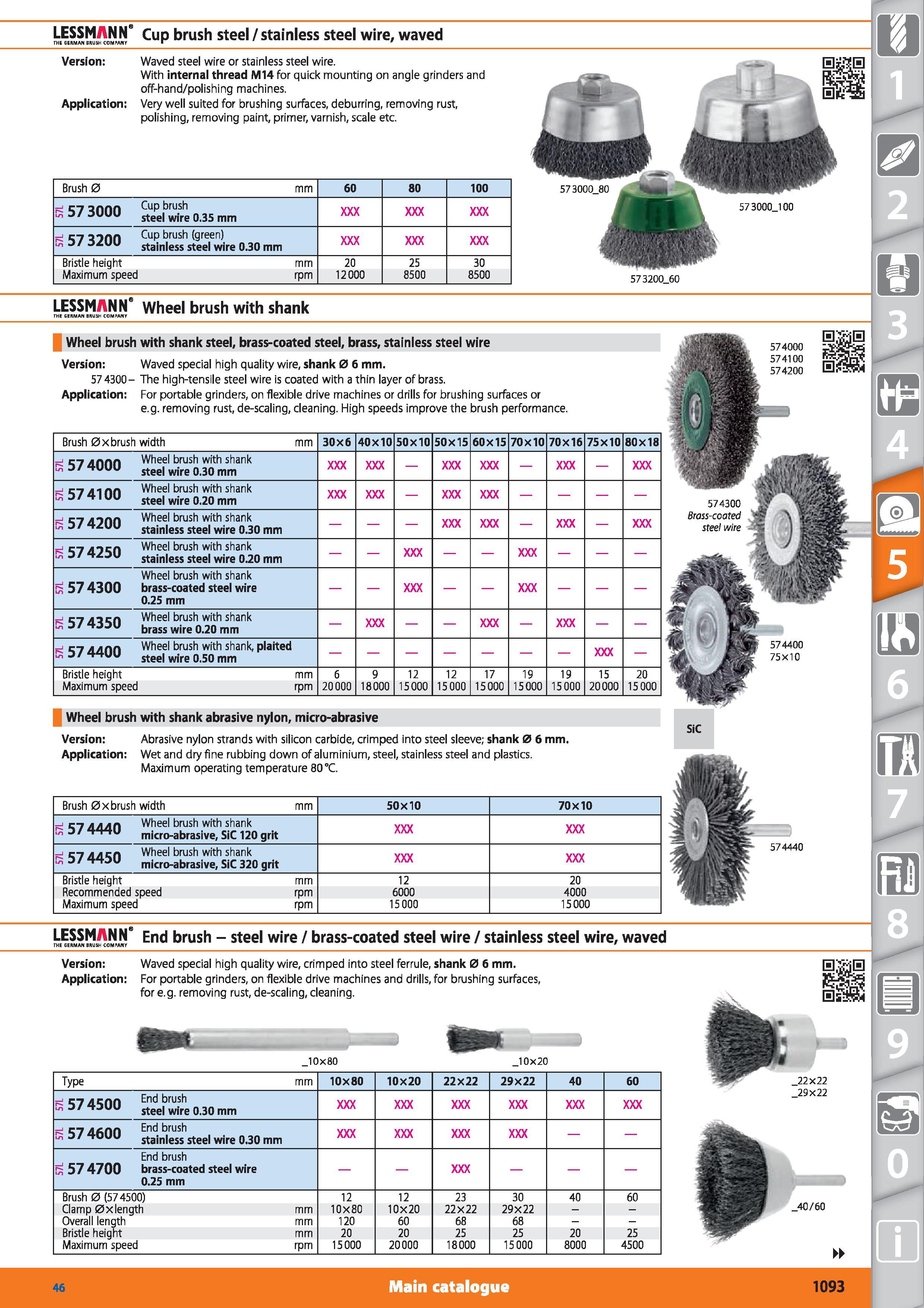

LESSMANN’ THE GERMAN BRUSH COMPANY Version Application Cup brush steel / stainless steel wire, waved Waved steel wire or stainless steel wire. With internal thread M14 for quick mounting on angle grinders and off-hand/polishing machines. Very well suited for brushing surfaces, deburring, removing rust, polishing, removing paint, primer, varnish, scale etc. Brush 0 mm 60 80 100 a 57 3000 Cup brush steel wire 0.35 mm a 57 3200 Cup brush (green) stainless steel wire 0.30 mm Bristle height mm 20 25 30 Maximum speed rpm 12000 8500 8500 LESSMANN Wheel brush with shank iH COMPANY Wheel brush with shank steel, brass-coated steel, brass, stainless steel wire Version Waved special high quality wire, shank 0 6 mm. 57 4300- The high-tensile steel wire is coated with a thin layer of brass. Application For portable grinders, on flexible drive machines or drills for brushing surfaces or e.g. removing rust, de-scaling, cleaning. High speeds improve the brush performance. Brush 0xbrush width mm 30X6 40X10 50X10 50X15 60X15 70X10 70X16 75X10 80X18 a 57 4000 Wheel brush with shark steel wire 0.30 mm a 574100 Wheel brush with shark steel wire 0.20 mm a 57 4200 Wheel brush with shark stainless steel wire 0.30 mm a 57 4250 Wheel brush with shark stainless steel wire 0.20 mm a 57 4300 Wheel brush with shark brass-coated steel wire 0.25 mm a 57 4350 Wheel brush with shark brass wire 0.20 mm a 57 4400 Wheel brush with shark, plaited steel wire 0.50 mm Bristle height mm 6 9 12 12 17 19 19 15 20 Maximum speed rpm 20000 18000 15000 15000 15000 15000 15000 20000 15000 Wheel brush with shank abrasive nylon, micro-abrasive Version Abrasive nylon strands with silicon carbide, crimped into steel sleeve; shank 0 6 mm Application Wet and dry fine rubbing down of aluminium, steel, stainless steel and plastics. Maximum operating temperature 80°C. Brush 0xbrush width mm 50X10 70X10 c-7 a a ai\ Wheel brush with shark micro-abrasive, SiC 120 grit c-7 j/cn Wheel brush with shark m 3/ micro-abrasive, SiC 320 grit Bristle height mm 12 20 Recommerded speed rpm 6000 4000 Maximum speed rpm 15000 15000 LESSMANN” End brush - steel wire / brass-coated steel wire / stainless steel wire, waved FHF GFRMAN BRUSH CflMPANY Version Waved special high quality wire, crimped into steel ferrule, shank 0 6 mm. Application For portable grinders, on flexible drive machines and drills, for brushing surfaces, for e.g. removing rust, de-scaling, cleaning. 10x80 10x20 Type mm 10X80 10X20 22X22 29X22 40 60 a 57 4500 End brush steel wire 0.30 mm a 57 4600 End brush stainless steel wire 0.30 mm a 57 4700 End brush brass-coated steel wire 0.25 mm Brush 0 (574500) 12 12 23 30 40 60 Clamp 0xlergth mm 10X80 10X20 22X22 29X22 Overall lergth mm 120 60 68 68 Bristle height mm 20 20 25 25 20 25 Maximum speed rpm 15000 20000 18000 15 000 8000 4500 m Main catalogue Hoffmann Group 46 1093
