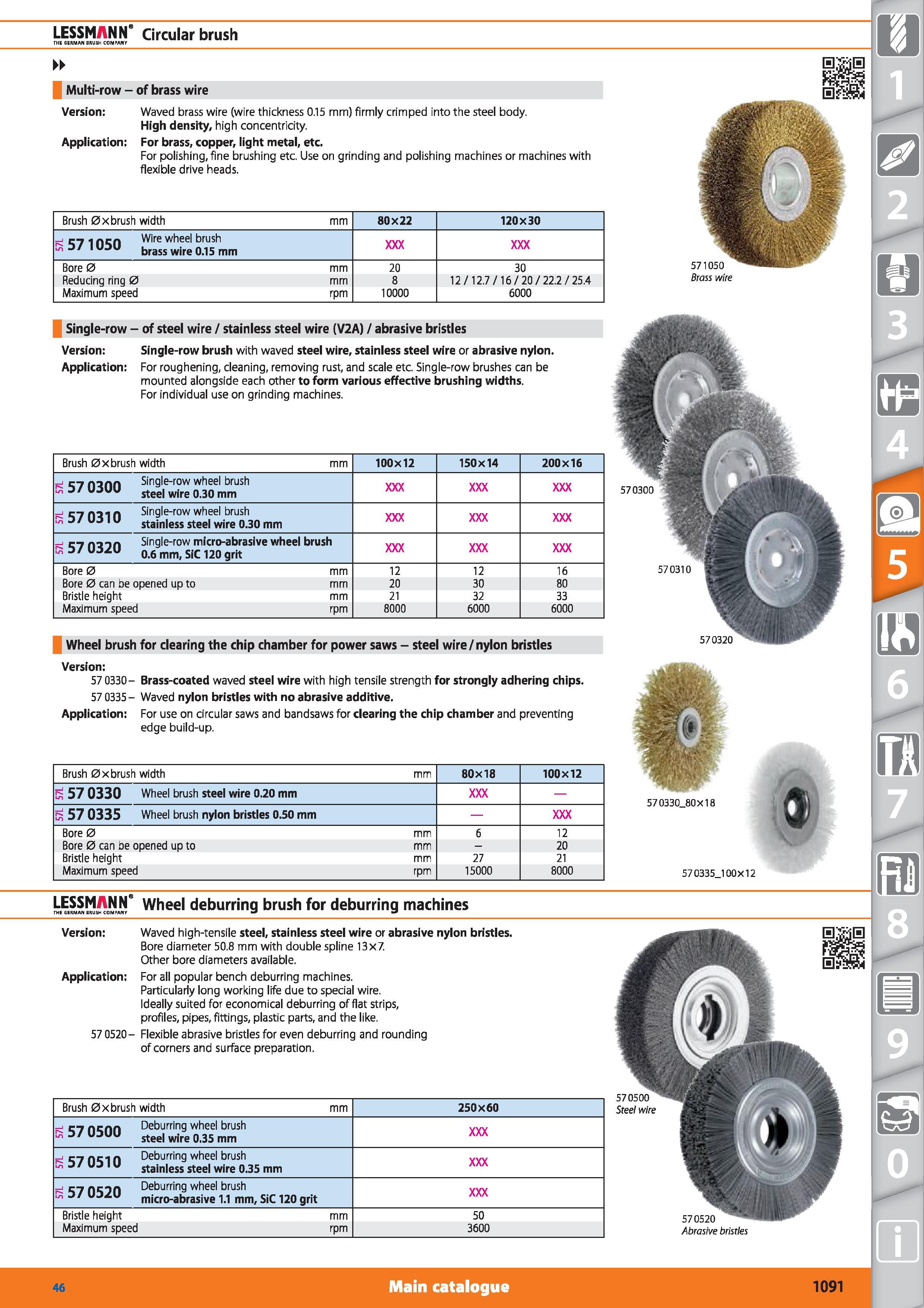

1091 Каталог HOFFMANN GROUP 2015 Инструмент режущий слесарный измерительный Стр.1091

Каталог HOFFMANN GROUP 2015 Tools Инструменты Ver 46 Стр. 1091 1091 ENG Lab2u

LESSMANN’ Circular brush THE GERMAN BRUSH COMPANY Multi-row - of brass wire Version Waved brass wire (wire thickness 0.15 mm) firmly crimped into the steel body. High density, high concentricity. Application For brass, copper, light metal, etc. For polishing, fine brushing etc. Use on grinding and polishing machines or machines with flexible drive heads. Brush 0xbrush width mm 80X22 120X30 j r fieri Wire wheel brush ft 3/ I UDU brasJ wjre 15 rnm Bore 0 mm 20 30 Reducing ring 0 mm 8 12/12.7/16/20/22.2/25.4 Maximum speed rpm 10000 6000 Brass wire Single-row - of steel wire / stainless steel wire (V2A) / abrasive bristles Version Single-row brush with waved steel wire, stainless steel wire or abrasive nylon. Application For roughening, cleaning, removing rust, and scale etc. Single-row brushes can be mounted alongside each other to form various effective brushing widths. For individual use on grinding machines. Brush 0xbrush width mm 100x12 150x14 200x16 ft 57 0300 Single-row wheel brush steel wire 0.30 mm ft 570310 Single-row wheel brush stainless steel wire 0.30 mm ft 57 0320 Single-row micro-abrasive wheel brush 0.6 mm, SiC 120 grit Bore 0 mm 12 12 16 Bore 0 can be opened up to mm 20 30 80 Bristle height mm 21 32 33 Maximum speec rpm 8000 6000 6000 Wheel brush for clearing the chip chamber for power saws - steel wire/nylon bristles Version 57 0330- Brass-coated waved steel wire with high tensile strength for strongly adhering chips. 57 0335 - Waved nylon bristles with no abrasive additive. Application For use on circular saws and bandsaws for clearing the chip chamber and preventing edge build-up. Brush 0xbrush width mm 80x18 100x12 ft 57 0330 Wheel brush steel wire 0.20 mm ft 57 0335 Wheel brush nylon bristles 0.50 mm Bore 0 mm 6 12 Bore 0 can be opened up to mm - 20 Bristle height mm 27 21 Maximum speed rpm 15000 8000 570330_80x18 57 0335_100X12 LESSMANN Wheel deburring brush for deburring machines THE GERMAN BRUSH COMPANY Version Waved high-tensile steel, stainless steel wire or abrasive nylon bristles. Bore diameter 50.8 mm with double spline 13x7. Other bore diameters available. Application For all popular bench deburring machines. Particularly long working life due to special wire. Ideally suited for economical deburring of flat strips, profiles, pipes, fittings, plastic parts, and the like. 57 0520- Flexible abrasive bristles for even deburring and rounding of corners and surface preparation. Brush 0xbrush width mm 250X60 ft 57 0500 Deburring wheel brush steel wire 0.35 mm ft 570510 Deburring wheel brush stainless steel wire 0.35 mm ft 57 0520 Deburring wheel brush micro-abrasive 1.1 mm, SiC 120 grit Bristle height mm 50 Maximum speec rpm 3600 570300 570310 570320 570520 Abrasive bristles 57 0500 Steel wire Main catalogue Hoffmann Group 46 1091
