1096 Каталог HOFFMANN GROUP 2015 Инструмент режущий слесарный измерительный Стр.1096

Каталог HOFFMANN GROUP 2015 Tools Инструменты Ver 46 Стр. 1096 1096 ENG Lab2u

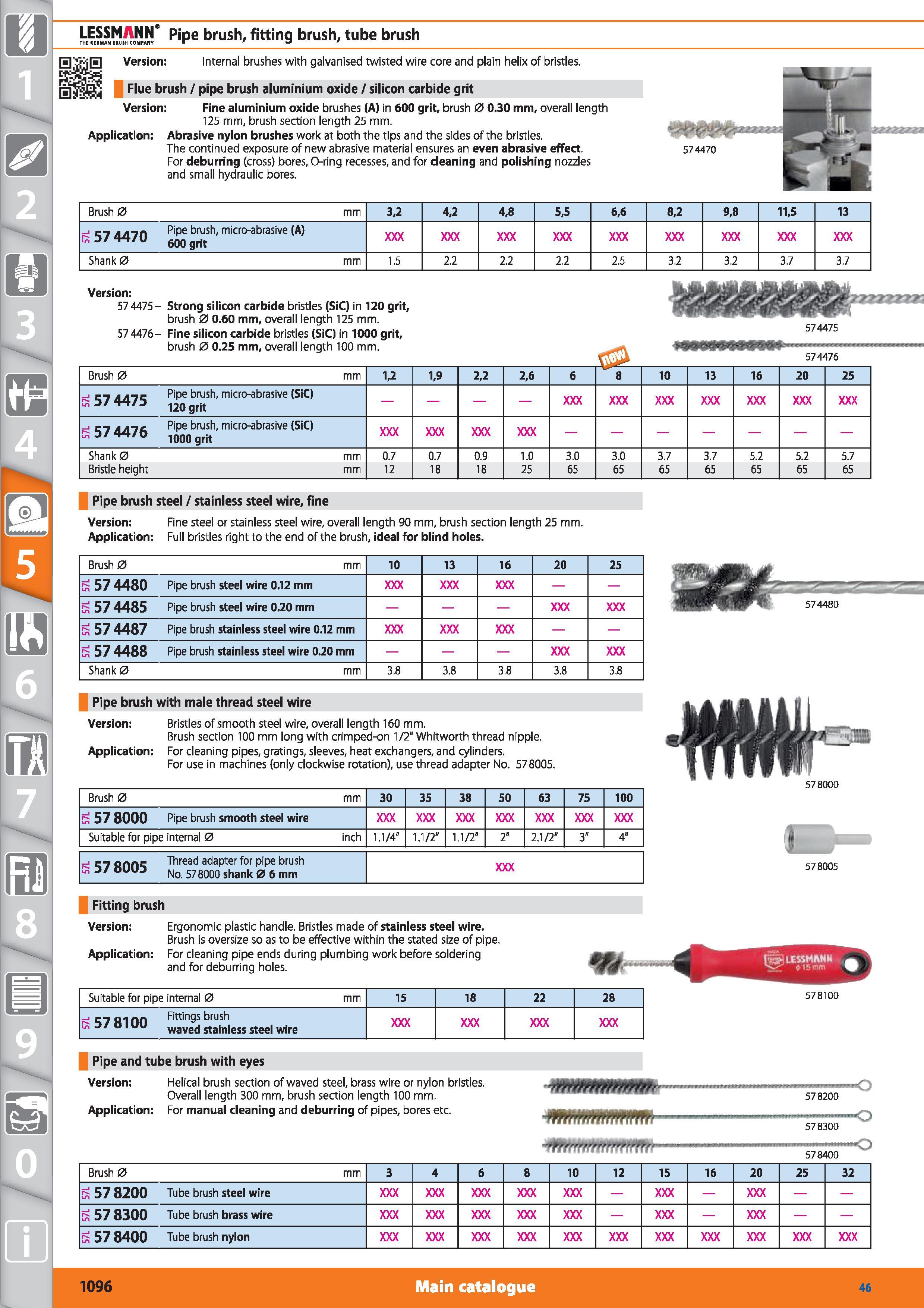

1 LESSMANN8 Pipe brush, fitting brush, tube brush THE GERMAN BRUSH COMPANY ’ ’ Version Internal brushes with galvanised twisted wire core and plain helix of bristles. Flue brush / pipe brush aluminium oxide / silicon carbide grit Version Fine aluminium oxide brushes (A) in 600 grit, brush 0 0.30 mm, overall length 125 mm, brush section length 25 mm. Application Abrasive nylon brushes work at both the tips and the sides of the bristles. The continued exposure of new abrasive material ensures an even abrasive effect. For deburring (cross) bores, O-ring recesses, and for cleaning and polishing nozzles and small hydraulic bores. Brush 0 mm 3,2 4,2 4,8 5,5 6,6 8,2 9,8 11,5 13 k574470 Pipe brush, micro-abrasive (A) 600 grit Shank 0 mm 1.5 2.2 2.2 2.2 2.5 3.2 3.2 3.7 3.7 Version 57 4475- Strong silicon carbide bristles (SiC) in 120 grit, brush 0 0.60 mm, overall length 125 mm. 57 4476- Fine silicon carbide bristles (SiC) in 1000 grit, brush 0 0.25 mm, overall length 100 mm. 574475 574476 Brush 0 mm 1,2 1,9 2,2 2,6 6 8 10 13 16 20 25 a 57 4475 Pipe brush, micro-abrasive (SiC) 120 grit k574476 Pipe brush, micro-abrasive (SiC) 1000 grit Shank 0 mm 0.7 0.7 0.9 1.0 3.0 3.0 3.7 3.7 5.2 5.2 5.7 Bristle height mm 12 18 18 25 65 65 65 65 65 65 65 Pipe brush steel / stainless steel wire, fine Version Fine steel or stainless steel wire, overall length 90 mm, brush section length 25 mm. Application Full bristles right to the end of the brush, ideal for blind holes. Brush 0 mm 10 13 16 20 25 ft 57 4480 Pipe brush steel wire 0.12 mm a 57 4485 Pipe brush steel wire 0.20 mm ft 57 4487 Pipe brush stainless steel wire 0.12 mm ft 57 4488 Pipe brush stainless steel wire 0.20 mm Shank 0 mm 3.8 3.8 3.8 3.8 3.8 574480 Pipe brush with male thread steel wire Version Bristles of smooth steel wire, overall length 160 mm. Brush section 100 mm long with crimped-on 1/2" Whitworth thread nipple. Application For cleaning pipes, gratings, sleeves, heat exchangers, and cylinders. For use in machines (only clockwise rotation), use thread adapter No. 578005. Brush 0 mm 30 35 38 50 63 75 100 ft 57 8000 Pipe brush smooth steel wire Suitable for pipe internal 0 inch 1.1/4" 1.1/2" 1.1/2" 2" 2.1/2" 3„ 4" ft 57 8005 Thread adapter for pipe brush No. 578000 shank 0 6 mm 578000 578005 Fitting brush Version Application Ergonomic plastic handle. Bristles made of stainless steel wire. Brush is oversize so as to be effective within the stated size of pipe. For cleaning pipe ends during plumbing work before soldering and for deburring holes. 1-1 rSSMftNh Suitable for pipe internal 0 mm 15 18 22 28 C7 oi nn Fittings brush “’3/oluu waved stainless steel wire 578100 Pipe and tube brush with eyes Version Helical brush section of waved steel, brass wire or nylon bristles. Overall length 300 mm, brush section length 100 mm. Application For manual cleaning and deburring of pipes, bores etc. 578200 578300 578400 -Q Brush 0 mm 3 4 6 8 10 12 15 16 20 25 32 ft 57 8200 Tube brush steel wire ft 57 8300 Tube brush brass wire ft 57 8400 Tube brush nylon 1096 Main catalogue Hoffmann Group 46
