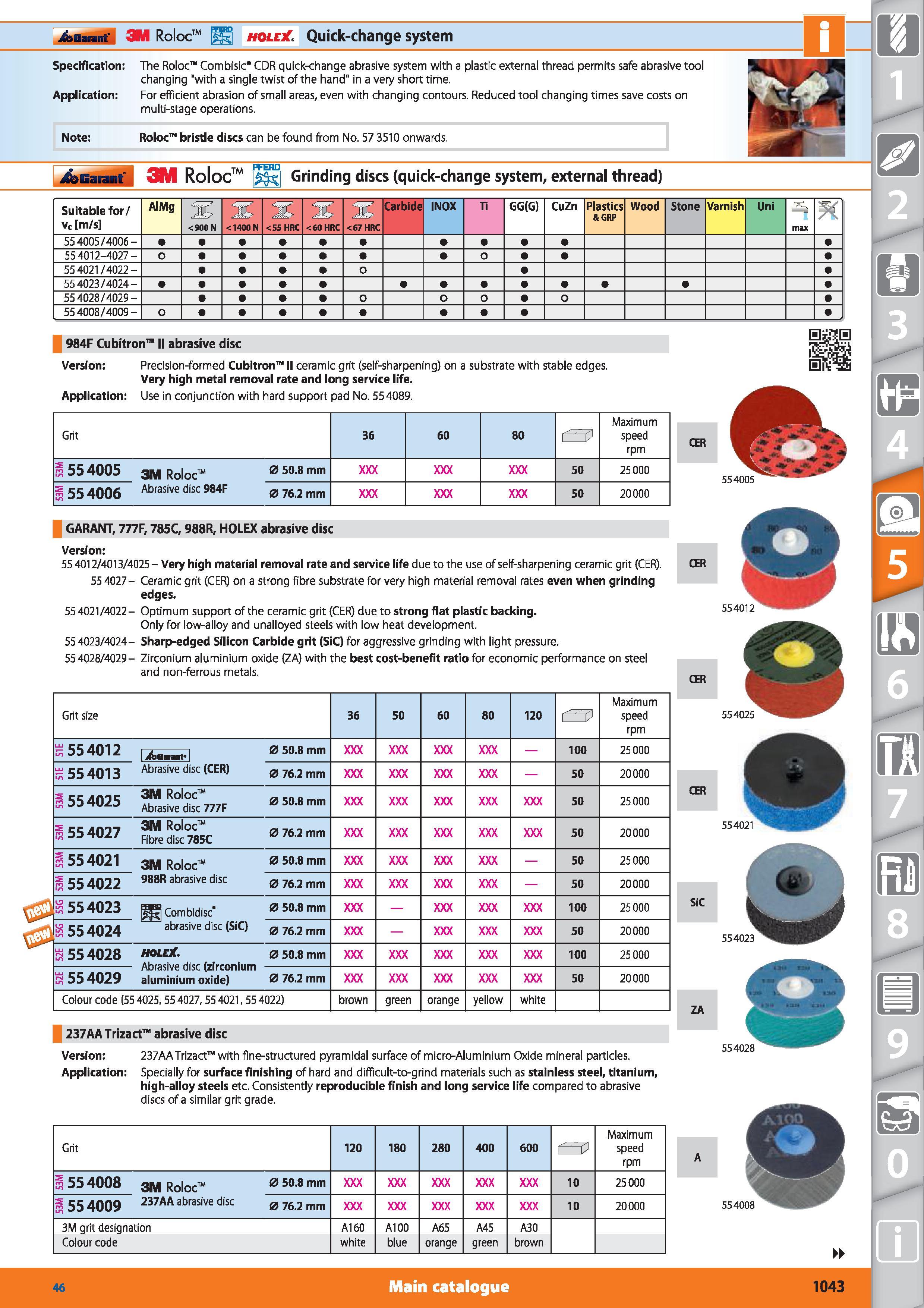

Garant I 3M Roloc7 hole Quick-change system Specification The Roloc Combisic CDR quick-change abrasive system with a plastic external thread permits safe abrasive tool changing "with a single twist of the hand" in a very short time. Application For efficient abrasion of small areas, even with changing contours. Reduced tool changing times save costs on multi-stage operations. Note Roloc bristle discs can be found from No. 57 3510 onwards. Garant 3M Roloc ,TM Grinding discs (quick-change system, external thread) Suitable for/ vc m/s AIMg OOON <1400 N <55 HRC <60 HRC <67 HRC Carbide INOX Ti GG(G) CuZn Plastics &GRP Wood Stone Varnish Uni max 554005/4006- 55 4012-4027- 554021/4022- O 554023/4024- 554028/4029- O 554008/4009- o 984F Cubitron II abrasive disc Version Precision-formed Cubitron II ceramic grit (self-sharpening) on a substrate with stable edges. Very high metal removal rate and long service life. Application Use in conjunction with hard support pad No. 554089. Grit 36 60 80 3 Maximum speed rpm 1554005 3M Roloc 0 50.8 mm 50 25000 1554006 Abrasive disc 984F 0 76.2 mm 50 20000 GARANT, 777F, 785C, 988R, HOLEX abrasive disc Version 55 4012/4013/4025 - Very high material removal rate and service life due to the use of self-sharpening ceramic grit (CER). 55 4027 - Ceramic grit (CER) on a strong fibre substrate for very high material removal rates even when grinding edges. 55 4021/4022 - Optimum support of the ceramic grit (CER) due to strong flat plastic backing. Only for low-alloy and unalloyed steels with low heat development. 554023/4024- Sharp-edged Silicon Carbide grit (SiC) for aggressive grinding with light pressure. 554028/4029- Zirconium aluminium oxide (ZA) with the best cost-benefit ratio for economic performance on steel and non-ferrous metals. 237AATrizact abrasive disc Version 237AATrizact with fine-structured pyramidal surface of micro-Aluminium Oxide mineral particles. Application Specially for surface finishing of hard and difficult-to-grind materials such as stainless steel, titanium, high-alloy steels etc. Consistently reproducible finish and long service life compared to abrasive discs of a similar grit grade. Grit 120 180 280 400 600 es Maximum speed rpm 1 55 4008 3M r0 0C 0 50.8 mm 10 25000 1 55 4009 237AA abrasive disc 0 76.2 mm 10 20000 3M grit designation A160 A100 A65 A45 A30 Colour code white blue orange green brown CER 554005 CER 554012 CER Grit size 36 50 60 80 120 0 Maximum speed rpm S 554012 1 j&Gmnt”l 0 50.8 mm 100 25000 n 554013 Abrasive disc (CER) 0 76.2 mm 50 20000 1554025 3M Roloc Abrasive disc 777F 0 50.8 mm 50 25000 1554027 3M Roloc Fibre disc 785C 0 76.2 mm 50 20000 1554021 3M Roloc 0 50.8 mm 50 25000 1554022 988R abrasive disc 0 76.2 mm 50 20000 s 55 4023 Combidisc' 0 50.8 mm 100 25000 s 55 4024 abrasive disc (SiC) 0 76.2 mm 50 20000 s 55 4028 HOLEX Abrasive disc (zirconium aluminium oxide) 0 50.8 mm 100 25000 s 55 4029 0 76.2 mm 50 20000 Colour code (55 4025,55 4027, 55 4021,55 4022) brown green orange yellow white 554025 CER 554021 SiC 554023 ZA 554028 554008 Main catalogue Hoffmann Group 46 1043
