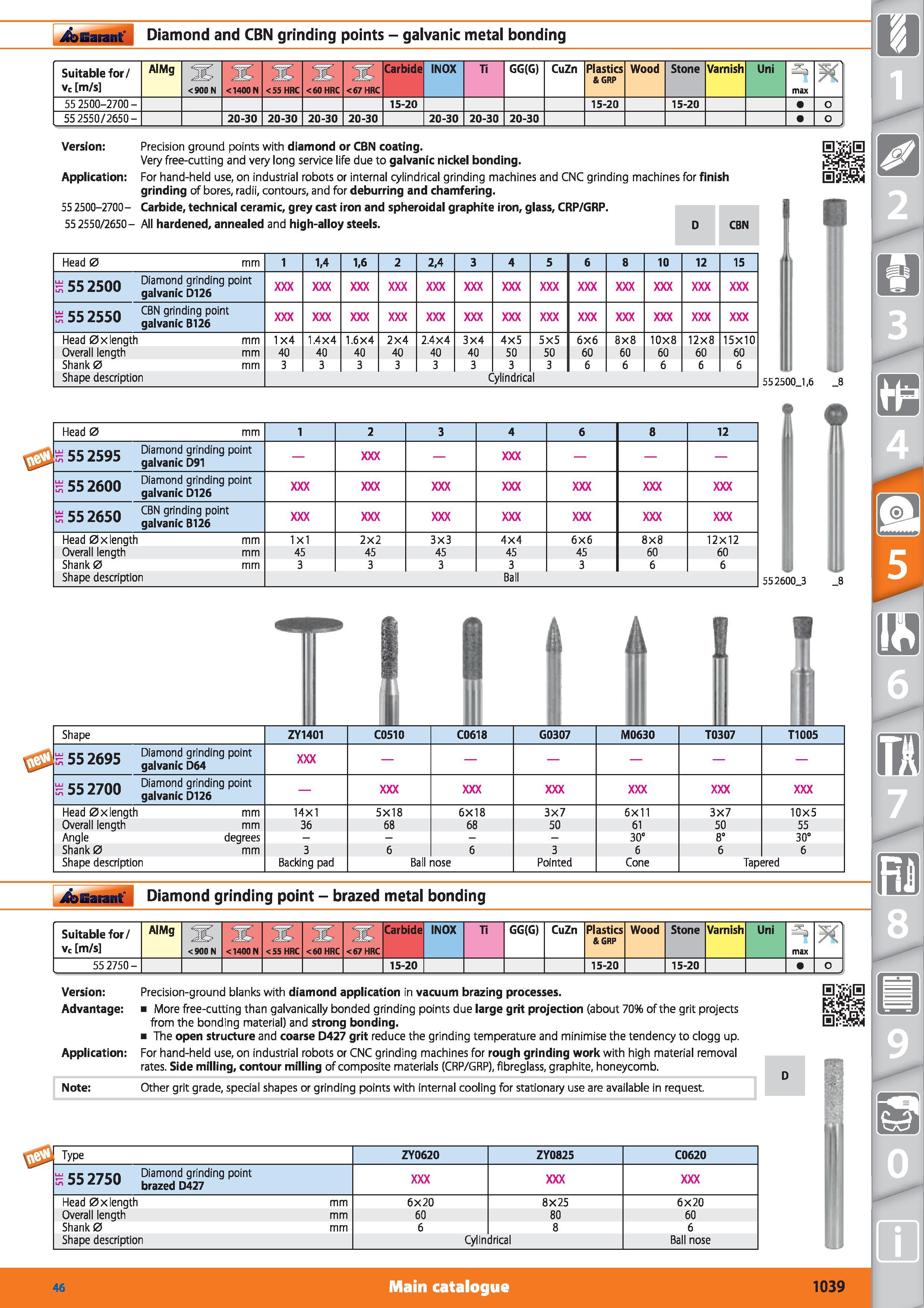

Garant Diamond and CBN grinding points - galvanic metal bonding Suitable for/ vc m/s AIMg <900 N <1400N <55 HRC <60 HRC <67 HRC Carbide INOX Ti GG(G) CuZn Plastics &GRP Wood Stone Varnish Uni max 55 2500-2700 - 15-20 15-20 15-20 o 55 2550/2650- 20-30 20-30 20-30 20-30 20-30 20-30 20-30 o Version Precision ground points with diamond or CBN coating. Very free-cutting and very long service life due to galvanic nickel bonding. Application For hand-held use, on industrial robots or internal cylindrical grinding machines and CNC grinding machines for finish grinding of bores, radii, contours, and for deburring and chamfering. 55 2500-2700- Carbide, technical ceramic, grey cast iron and spheroidal graphite iron, glass, CRP/GRP. 55 2550/2650- All hardened, annealed and high-alloy steels. D CBN Head 0 mm 1 1,4 1,6 2 2,4 3 4 5 6 8 10 12 15 ocnn Diamond grinding point 5 33 Z3UU ga vanic D126 uj rc vrn CBN grinding point 5 33 Z33U galvanic B126 Head 0x length mm 1X4 1.4X4 1.6X4 2X4 2.4X4 3X4 4X5 5X5 6X6 8X8 10X8 12X8 15X10 Overall length mm 40 40 40 40 40 40 50 50 60 60 60 60 60 Shank 0 mm 3 3 3 3 3 3 3 3 6 6 6 6 6 Shape description Cylindrical 552500_1,6 _8 Head 0 mm 1 2 3 4 6 8 12 552595 Diamond grinding point galvanic D91 552600 Diamond grinding point galvanic D126 552650 CBN grinding point galvanic B126 Head 0x length mm 1x1 2X2 3X3 4x4 6X6 8x8 12x12 Overall length mm 45 45 45 45 45 60 60 Shank 0 mm 3 3 3 3 3 6 6 Shape description Ball 55 2600_3 Shape ZY1401 C0510 C0618 G0307 M0630 T0307 T1005 552695 Diamond grinding point galvanic D64 552700 Diamond grinding point galvanic D126 Head 0x length mm 14x1 5X18 6X18 3X7 6X11 3X7 10X5 Overall length mm 36 68 68 50 61 50 55 Angle degrees 30° 8° 30° Shank 0 mm 3 6 6 3 6 6 6 Shape description Backing pad Ball nose Pointed Cone Tapered 3; Garant Diamond grinding point - brazed metal bonding Suitable for/ Vc m/s AIMg <900 N 1 IfC, 1 ‘TfC, 1 rt, Carbide <1400N <55 HRC <60 HRC <67 HRC INOX Ti GG(G) CuZn Plastics &GRP Wood Stone Varnish Uni 3 max 55 2750 - 15-20 15-20 15-20 Version Precision-ground blanks with diamond application in vacuum brazing processes. Advantage More free-cutting than galvanically bonded grinding points due large grit projection (about 70% of the grit projects from the bonding material) and strong bonding. The open structure and coarse D427 grit reduce the grinding temperature and minimise the tendency to dogg up. Application For hand-held use, on industrial robots or CNC grinding machines for rough grinding work with high material removal rates. Side milling, contour milling of composite materials (CRP/GRP), fibreglass, graphite, honeycomb. Note Other grit grade, special shapes or grinding points with internal cooling for stationary use are available in request. Type ZY0620 ZY0825 C0620 lu cc 77cn Diamond grinding point 55 33 Z/3U brazed D427 Head 0x length mm 6X20 8X25 6X20 Overall length mm 60 80 60 Shank 0 mm 6 8 6 Shape description Cylindrical Ball nose Main catalogue Hoffmann Group 46 1039
