1021 Каталог HOFFMANN GROUP 2015 Инструмент режущий слесарный измерительный Стр.1021

Каталог HOFFMANN GROUP 2015 Tools Инструменты Ver 46 Стр. 1021 1021 ENG Lab2u

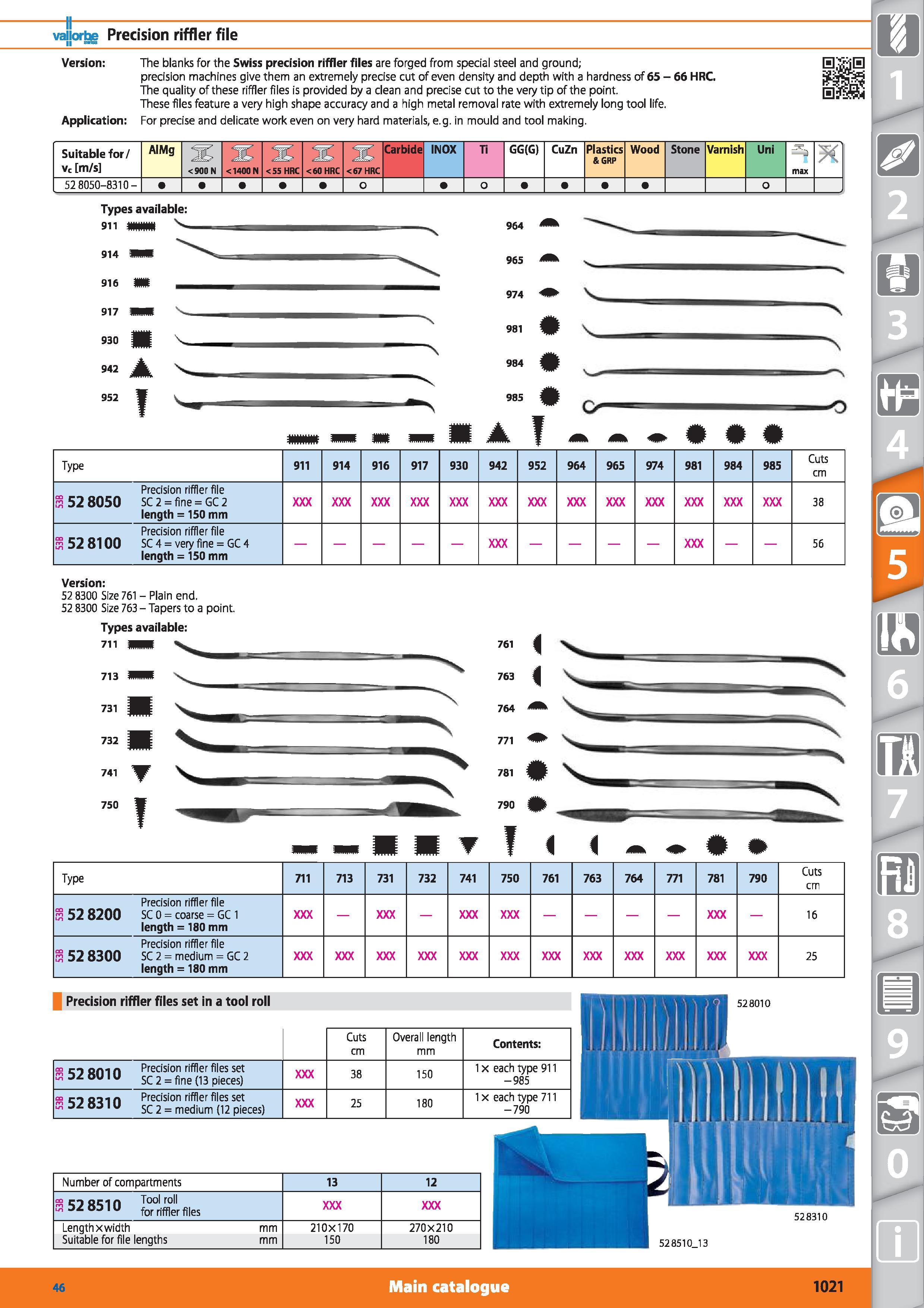

vaiiorbe Precision riffler file ii Version The blanks for the Swiss precision riffler files are forged from special steel and ground; precision machines give them an extremely precise cut of even density and depth with a hardness of 65 - 66 HRC. The quality of these riffler files is provided by a clean and precise cut to the very tip of the point. These files feature a very high shape accuracy and a high metal removal rate with extremely long tool life. Application For precise and delicate work even on very hard materials, e.g. in mould and tool making. Suitable for/ Vc m/s AIMg <900 N <1400N <55 HRC <60 HRC <67 HRC Carbide INOX Ti GG(G) CuZn Plastics &GRP Wood Stone Varnish Uni max 1 52 8050-8310 - O J Types available "N 964 965 974 981 984 985 A Type 911 914 916 917 930 942 952 964 965 974 981 984 985 Cuts cm 3 52 8050 Precision riffler file SC 2 fine GC 2 length 150 mm 38 3 52 8100 Precision riffler file SC 4 very fine GC 4 length 150 mm 56 Version 52 8300 Size 761 - Plain end. 52 8300 Size 763 - Tapers to a point. Types available 711 713 731 732 741 750 Type 711 713 731 732 741 750 761 763 764 771 781 790 Cuts cm 3 52 8200 Precision riffler file SC 0 coarse GC 1 length 180 mm 16 3 52 8300 Precision riffler file SC 2 medium GC 2 length 180 mm 25 Precision riffler files set in a tool roll Number of compartments 13 12 3 52 8510 “fe Lengthxwidth mm 210X170 270X210 Suitable for file lengths mm 150 180 528010 Cuts cm Overall length mm Contents 3 52 8010 Precision riffler files set SC 2 fine (13 pieces) 38 150 1 x each type 911 -985 3 52 8310 Precision riffler files set SC 2 medium (12 pieces) 25 180 1 x each type 711 -790 528310 528510J3 Main catalogue Hoffmann Group 46 1021
