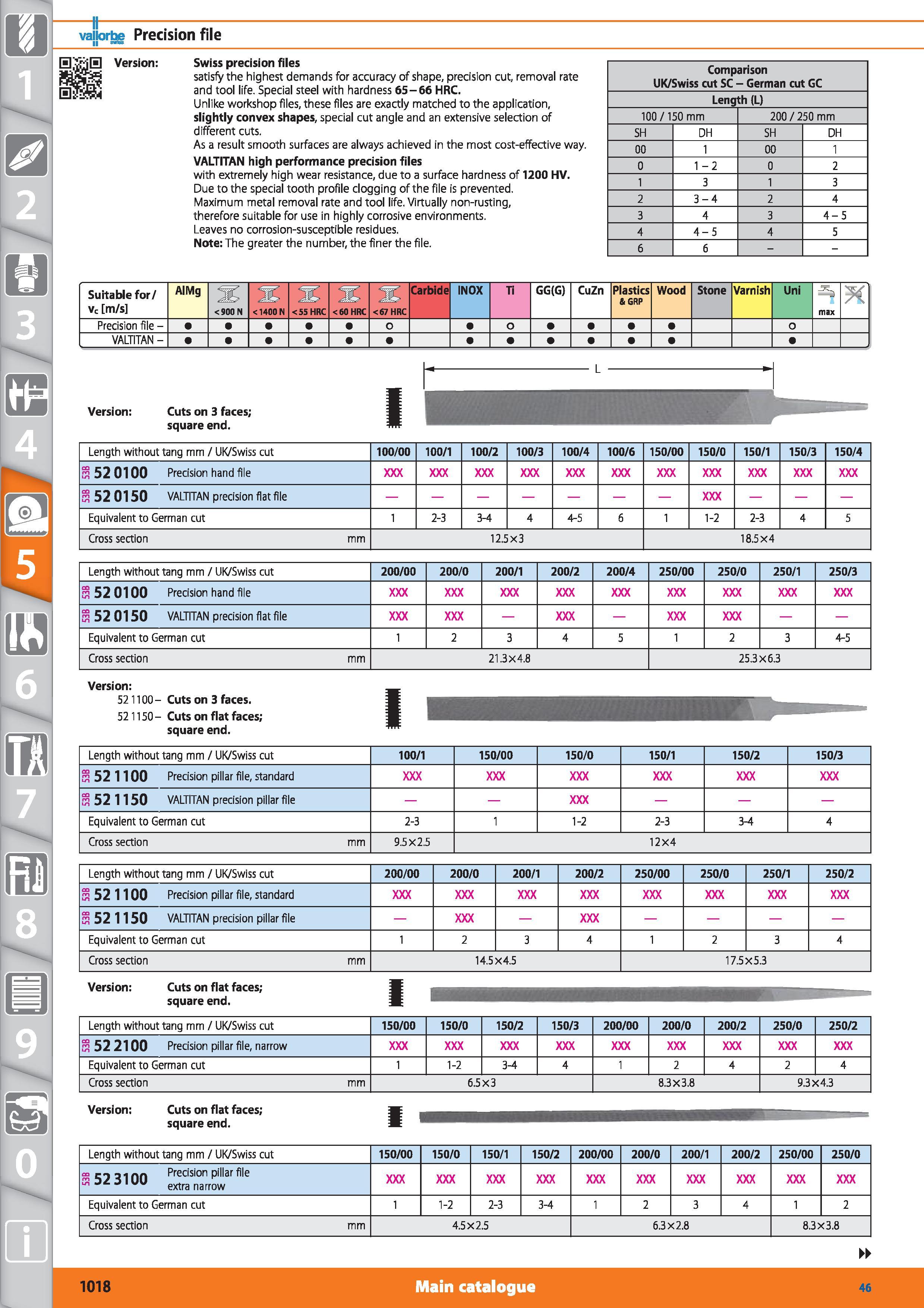

vaiiorbe Precision file li tlSjS Version Swiss precision files satisfy the highest demands for accuracy of shape, precision cut, removal rate gjpgjj and tool life. Special steel with hardness 65-66 HRC. Unlike workshop files, these files are exactly matched to the application, slightly convex shapes, special cut angle and an extensive selection of different cuts. As a result smooth surfaces are always achieved in the most cost-effective way. VALTITAN high performance precision files with extremely high wear resistance, due to a surface hardness of 1200 HV. Due to the special tooth profile clogging of the file is prevented. Maximum metal removal rate and tool life. Virtually non-rusting, therefore suitable for use in highly corrosive environments. Leaves no corrosion-susceptible residues. Note The greater the number, the finer the file. Comparison UK/Swiss cut SC - German cut GC Length (L) 100/150 mm 200 / 250 mm SH DH SH DH 00 1 00 1 0 1-2 0 2 1 3 1 3 2 3-4 2 4 3 4 3 4-5 4 4-5 4 5 6 6 Length without tang mm / UK/Swiss cut 100/00 100/1 100/2 100/3 100/4 100/6 150/00 150/0 150/1 1503 150/4 3 520100 Precision hand file 3 520150 VALTITAN precision flat file Equivalent to German cut 1 2-3 3-4 4 6 1 1-2 4 5 Cross section mm 12.5x3 18.5x4 Length without tang mm / UK/Swiss cut 200/00 200/0 200/1 200/2 200/4 250/00 250/0 250/1 250/3 3 520100 Precision hand file 3 52 0150 VALTITAN precision flat file Equivalent to German cut 1 2 3 4 5 1 2 3 4-5 Cross section mm 21.3X4.8 25.3X6.3 Version 521100- Cuts on 3 faces. 521150 - Cuts on flat faces; square end. 8 0 m Length without tang mm / UK/Swiss cut 100/1 150/00 150/0 150/1 150/2 150/3 3 521100 Precision pillar file, standard 3 521150 VALTITAN precision pillar file Equivalent to German cut 2-3 1 1-2 2-3 3-4 4 Cross section mm 9.5 X 2.5 12X4 Length without tang mm / UK/Swiss cut 200/00 200/0 200/1 200/2 250/00 250/0 250/1 250/2 3 52 1100 Precision pillar file, standard 3 521150 VALTITAN precision pillar file Equivalent to German cut 1 2 3 4 1 2 3 4 Cross section mm 14.5X4.5 17.5X5.3 Version Cuts on flat faces; square end. Length without tang mm / UK/Swiss cut 150/00 150/0 150/2 150/3 200/00 200/0 200/2 250/0 250/2 3 52 2100 Precision pillar file, narrow Equivalent to German cut 1 1-2 3-4 4 1 2 4 2 4 Cross section mm 6.5X3 8.3 X 3.8 9.3 X 4.3 Version Cuts on flat faces; square end. Length without tang mm / UK/Swiss cut 150/00 150/0 150/1 150/2 200/00 200/0 200/1 200/2 250/00 250/0 S 11 31 nn decision pillar file K jZ. j UU extra narrow Equivalent to German cut 1 1-2 2-3 3-4 1 2 3 4 1 2 Cross section mm 4.5 x 2.5 6.3 x 2.8 8.3X3.8 1018 Main catalogue Hoffmann Group 46
