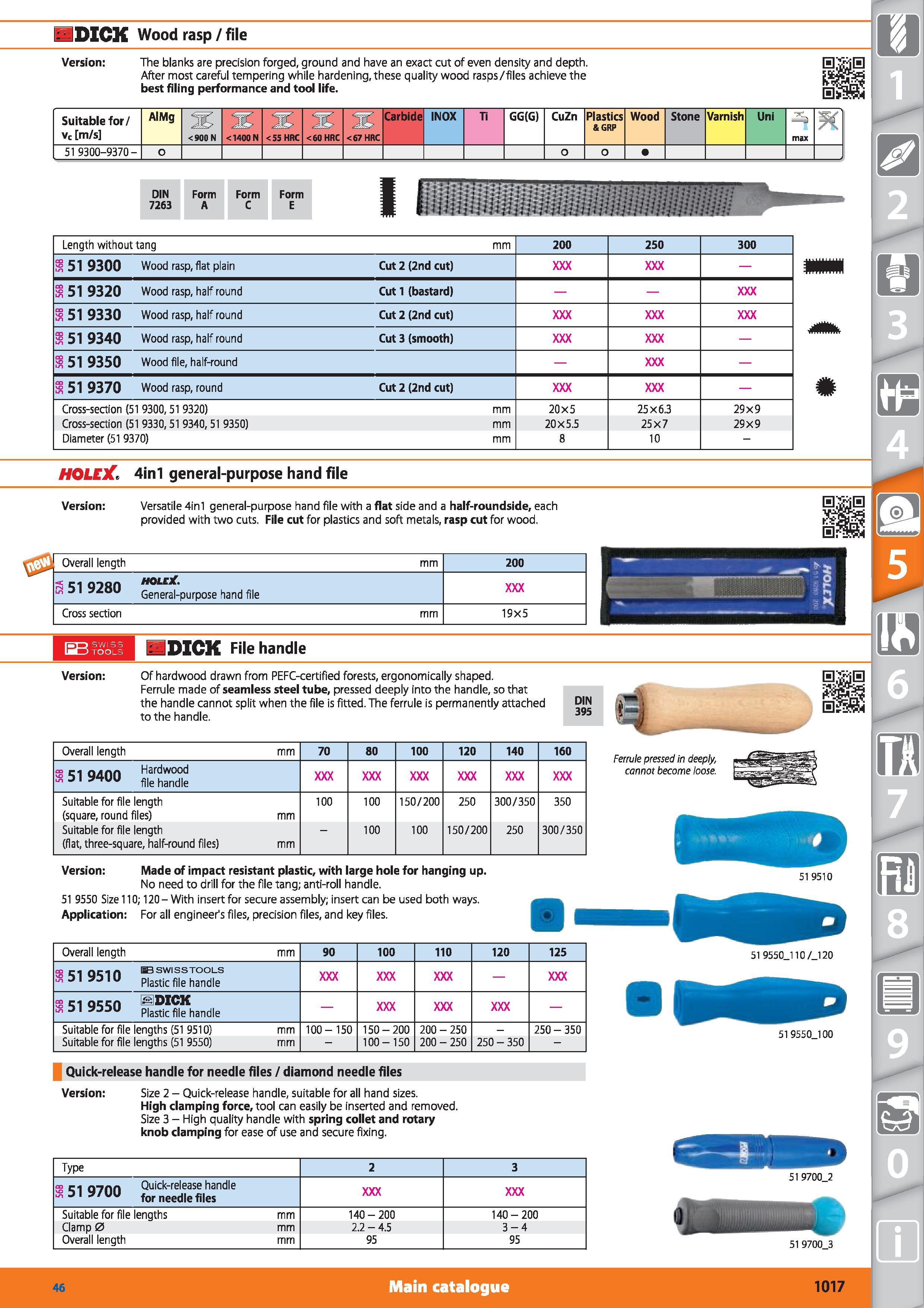

DICK Wood rasp / file Version The blanks are precision forged, ground and have an exact cut of even density and depth. After most careful tempering while hardening, these quality wood rasps/files achieve the best filing performance and tool life. Suitable for/ vc m/s AIMg <900 N < 1400 N <55 HRC <60 HRC <67 HRC Carbide INOX Ti GG(G) CuZn Plastics &GRP Wood Stone Varnish Uni max 51 9300-9370- O J DIN 7263 Form A Form C Form E Length without tang mm 200 250 300 a 51 9300 Wood rasp, flat plain Cut 2 (2nd cut) a 51 9320 Wood rasp, half round Cut 1 (bastard) a 51 9330 Wood rasp, half round Cut 2 (2nd cut) a 51 9340 Wood rasp, half round Cut 3 (smooth) a 51 9350 Wood file, half-round a 51 9370 Wood rasp, round Cut 2 (2nd cut) Cross-section (51 9300,51 9320) mm 20x5 25x6.3 29x9 Cross-section (51 9330,51 9340,51 9350) mm 20x5.5 25x7 29X9 Diameter (51 9370) mm 8 10 - m HOLEX 4in1 general-purpose hand file Version Versatile 4in1 general-purpose hand file with a flat side and a half-roundside, each provided with two cuts. File cut for plastics and soft metals, rasp cut for wood. 3. Overall length mm 200 3 51 9280 holbC. General-purpose hand file Cross section mm 19X5 i K DICK File handle Version Of hardwood drawn from PEFC-certified forests, ergonomically shaped. Ferrule made of seamless steel tube, pressed deeply into the handle, so that the handle cannot split when the file is fitted. The ferrule is permanently attached to the handle. DIN 395 Overall length mm 70 80 100 120 140 160 “51 9400 Hardwood 3 I WUU fl e hgnd e Suitable for file length (square, round files) mm 100 100 150/200 250 300/350 350 Suitable for file length (flat, three-square, half-round files) mm 100 100 150/200 250 300/350 Version Made of impact resistant plastic, with large hole for hanging up. No need to drill for the file tang; anti-roll handle. 51 9550 Size 110; 120-With insert for secure assembly; insert can be used both ways. Application For all engineer's files, precision files, and key files. Overall length mm 90 100 110 120 125 a 51 9510 IESWISSTOOLS Plastic file handle a 51 9550 HI DICK Plastic file handle Suitable for file lengths (51 9510) mm XC XX 150-200 200 - 250 - 250-350 Suitable for file lengths (51 9550) mm - 100-150 200 - 250 250 - 350 - 51 9550_110 /_120 519550J00 Quick-release handle for needle files / diamond needle files Version Size 2 - Quick-release handle, suitable for all hand sizes. High clamping force, tool can easily be inserted and removed. Size 3 - High quality handle with spring collet and rotary knob clamping for ease of use and secure fixing. Type 2 3 a 51 9700 Quick-release handle for needle files Suitable for file lengths mm 140 - 200 140 - 200 Clamp 0 mm 2.2 - 4.5 3-4 Overall length mm 95 95 Main catalogue Hoffmann Group 46 1017
