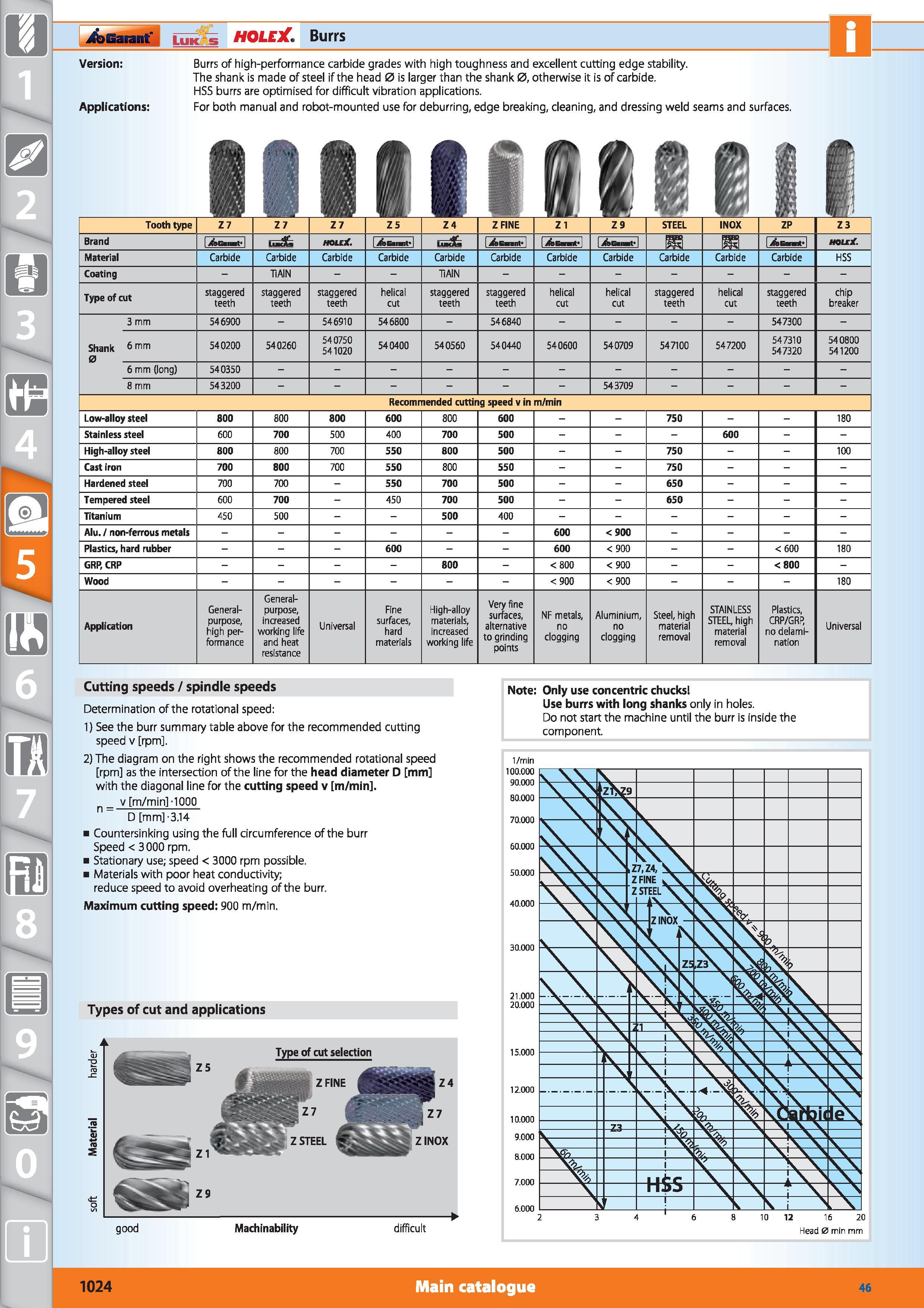

i&Gaiaiit Luk s HOLEX Burrs Version Applications Burrs of high-performance carbide grades with high toughness and excellent cutting edge stability. The shank is made of steel if the head 0 is larger than the shank 0, otherwise it is of carbide. HSS burrs are optimised for difficult vibration applications. For both manual and robot-mounted use for deburring, edge breaking, cleaning, and dressing weld seams and surfaces. Tooth type Z 7 Z 7 Z 7 Z 5 Z 4 Z FINE Z1 Z 9 STEEL INOX ZP Z3 Brand 1 j&GhmpI HQLEjC' I J&E lt a&L j bEaiit jfeEmt1 1 j&GmmpI m m J&E lt" HOUlC. Material Carbide Carbide Carbide Carbide Carbide Carbide Carbide Carbide Carbide Carbide Carbide HSS Coating - TiAIN - Type of cut staggered teeth staggered teeth staggered teeth helical cut staggered teeth staggered teeth helical cut helical cut staggered teeth helical cut staggered teeth chip breaker 3 mm 546900 - 546910 546800 - 546840 547300 - Shank 6 mm <3 540200 540260 540750 541020 540400 540560 540440 540600 54 0709 547100 547200 547310 547320 540800 541200 6 mm (long) 540350 - 8 mm 543200 543709 Recommended cutting speed v in m/min Low-alloy steel 800 800 800 600 800 600 750 180 Stainless steel 600 700 500 400 700 500 - 600 High-alloy steel 800 800 700 550 800 500 750 100 Cast iron 700 800 700 550 800 550 750 - Hardened steel 700 700 - 550 700 500 650 - Tempered steel 600 700 - 450 700 500 650 - Titanium 450 500 500 400 Alu. / non-ferrous metals 600 <900 Plastics, hard rubber - 600 600 <900 <600 180 GRP, CRP 800 - <800 <900 <800 - Wood <900 <900 - 180 Application General-purpose, high performance General-purpose, increased working life and heat resistance Universal Fine surfaces, hard materials High-alloy materials, increased working life Very fine surfaces, alternative to grinding points NF metals, no clogging Aluminium, no clogging Steel, high material removal STAINLESS STEEL, high material removal Plastics, CRP/GRP, no delamination Universal Cutting speeds / spindle speeds Determination of the rotational speed 1) See the burr summary table above for the recommended cutting speed v rpm , 2) The diagram on the right shows the recommended rotational speed rpm as the intersection of the line for the head diameter D mm with the diagonal line for the cutting speed v m/min v m/min -1000 D mm -3.14 Countersinking using the full circumference of the burr Speed < 3000 rpm. Stationary use; speed < 3000 rpm possible. Materials with poor heat conductivity; reduce speed to avoid overheating of the burr. Maximum cutting speed 900 m/min. Types of cut and applications good Machinability difficult Type of cut selection Note Only use concentric chucks Use burrs with long shanks only in holes. Do not start the machine until the burr is inside the component. 1024 Main catalogue Hoffmann Group 46
