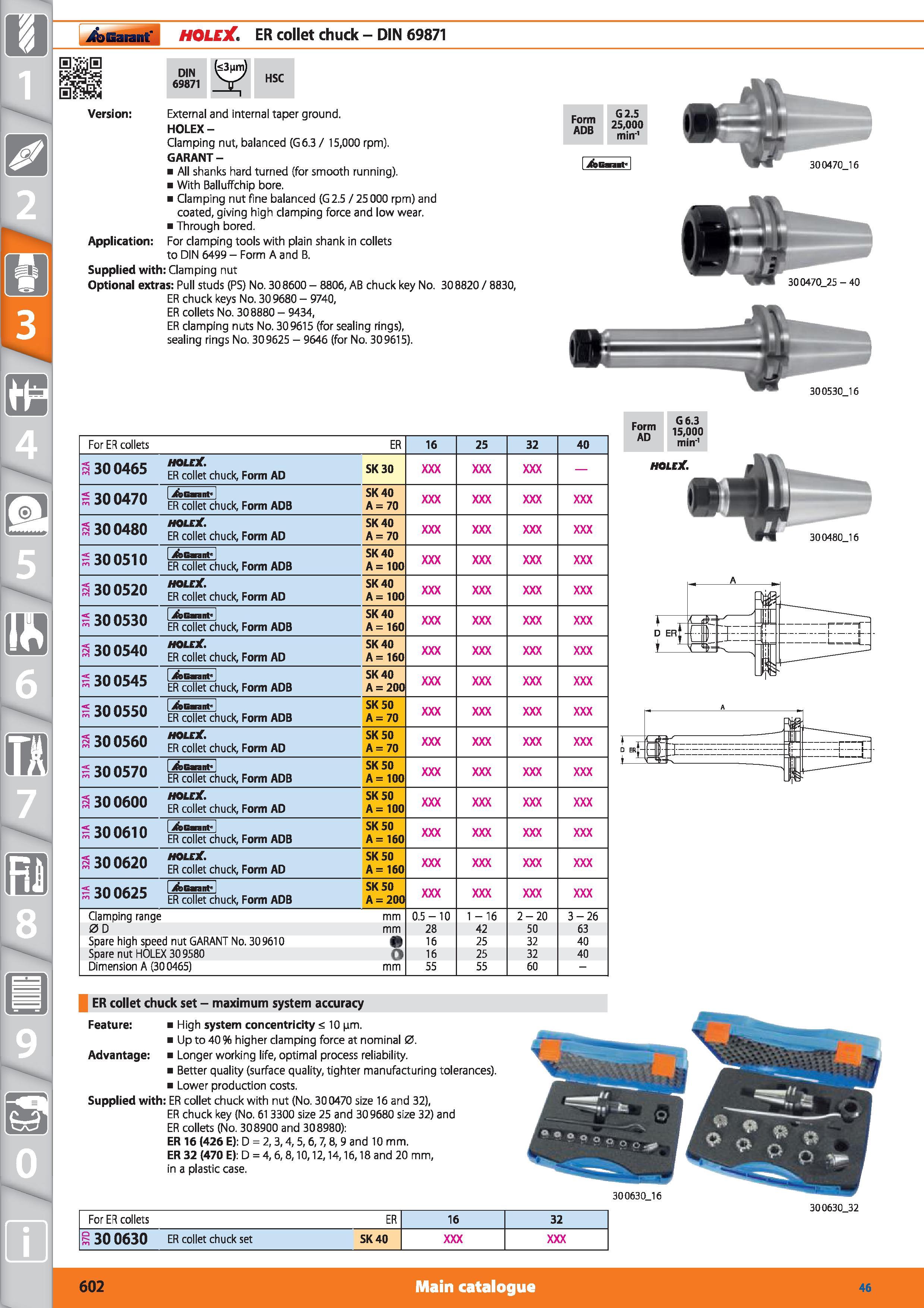

Garant HOLEX ER collet chuck - DIN 69871 DIN 69871 HSC Version External and internal taper ground HOLEX - Clamping nut, balanced (G6 3 / 15,000 r

Garant HOLEX ER collet chuck - DIN 69871 DIN 69871 HSC Version External and internal taper ground. HOLEX - Clamping nut, balanced (G6.3 / 15,000 rpm). GARANT- All shanks hard turned (for smooth running). With Balluffchip bore. Clamping nut fine balanced (G 2.5 / 25 000 rpm) and coated, giving high clamping force and low wear. Through bored. Application For clamping tools with plain shank in collets to DIN 6499 - Form A and B. Supplied with Clamping nut Optional extras Pull studs (PS) No. 308600 - 8806, AB chuck key No. 308820/8830, ER chuck keys No. 30 9680 - 9740, ER collets No. 308880 - 9434, ER clamping nuts No. 309615 (for sealing rings), sealing rings No. 309625 - 9646 (for No. 309615). 300530J6 8 0 x For ER collets ER 16 25 32 40 30 0465 hqleX. ER collet chuck, Form AD SK 30 300470 1 jftoGanmt' ER collet chuck. Form ADB SK40 A 70 300480 HOLEX ER collet chuck, Form AD SK40 A 70 300510 1 Garant ER collet chuck, Form ADB SK40 A= 100 300520 hqleX. ER collet chuck. Form AD SK40 A= 100 300530 1 jfbGanmt1 ER collet chuck. Form ADB SK40 A= 160 300540 HOLEX ER collet chuck, Form AD SK40 A= 160 300545 1 jfeGnnP ER collet chuck, Form ADB SK40 A 200 300550 1 Xb Garant ER collet chuck. Form ADB SK 50 A 70 300560 HOLEX ER collet chuck, Form AD SK 50 A 70 300570 I J(b Garant ER collet chuck, Form ADB SK 50 A= 100 300600 HOLEX ER collet chuck, Form AD SK 50 A= 100 300610 1 Xbcanint' ER collet chuck, Form ADB SK 50 A= 160 300620 HOLEX ER collet chuck, Form AD SK 50 A= 160 300625 I JfbGarant' ER collet chuck, Form ADB SK 50 A 200 Clamping range mm 0.5-10 1-16 2-20 3-26 0 D mm 28 42 50 63 Spare high speed nut GARANT No. 309610 m 16 25 32 40 Spare nut HOLEX 309580 o 16 25 32 40 Dimension A (300465) mm 55 55 60 - 602 Main catalogue Hoffmann Group 46 30 0470.16 Form AD 15,000 in-1 min 300480.16 For ER collets ; 30 0630 ER collet chuck set SK40 ER collet chuck set - maximum system accuracy Feature High system concentricity < 10 jm. Up to 40 higher clamping force at nominal 0. Advantage Longer working life, optimal process reliability. Better quality (surface quality, tighter manufacturing tolerances). Lower production costs. Supplied with ER collet chuck with nut (No. 300470 size 16 and 32), ER chuck key (No. 613300 size 25 and 309680 size 32) and ER collets (No. 308900 and 308980) ER 16 426 E) D 2,3,4,5,6,7,8, 9 and 10 mm. ER 32 (470 E) D 4,6,8,10,12,14,16,18 and 20 mm, in a plastic case. 300630_32
