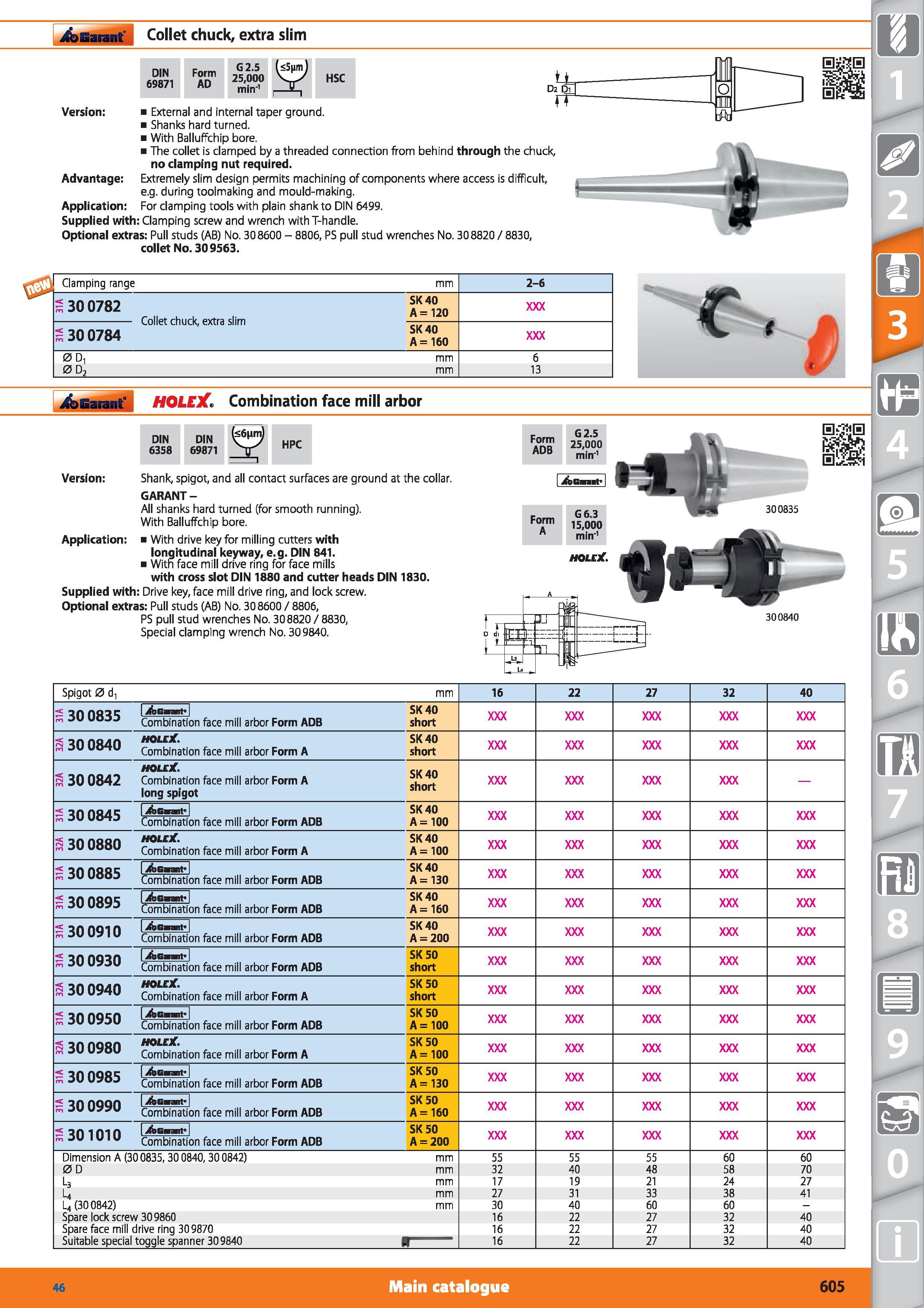

Garant Collet chuck, extra slim DIN 69871 Form AD G 2.5 25,000 min'1 HSC Version External and internal taper ground. Shanks hard turned. With Balluffchip bore. The collet is clamped by a threaded connection from behind through the chuck, no clamping nut required. Advantage Extremely slim design permits machining of components where access is difficult, e.g. during toolmaking and mould-making. Application For clamping tools with plain shank to DIN 6499. Supplied with Clamping screw and wrench with T-handle. Optional extras Pull studs (AB) No. 308600 - 8806, PS pull stud wrenches No. 308820/ 8830, collet No. 309563. 3. Clamping range mm 2-6 s 30 0782 SK40 A= 120 VwwllvrL LllULKf caud blliiI 30 0784 SK40 A= 160 0D, mm 6 0D2 mm 13 J&Garant‘ i HOLEJC„ Combination face mill arbor DIN 6358 DIN 69871 HPC Version Application Shank, spigot, and all contact surfaces are ground at the collar. GARANT- All shanks hard turned (for smooth running). With Balluffchip bore. With drive key for milling cutters with longitudinal keyway, e.g. DIN 841. With face mill drive ring for face mills Form ADB G2.5 25,000 min'1 1 jCbGarait1 Form A G6.3 15,000 min'1 holcjC. with cross slot DIN 1880 and cutter heads DIN 1830. Supplied with Drive key, face mill drive ring, and lock screw. Optional extras Pull studs (AB) No. 308600 / 8806, PS pull stud wrenches No. 308820 / 8830, Special clamping wrench No. 309840. m t n -I I )\\ D di 1-f 1- tL 1 Ip 300840 Spigot 0 d. mm 16 22 27 32 40 30 0835 lifeGnnt Combination face mill arbor Form ADB SK40 short r 30 0840 holeX. Combination face mill arbor Form A SK40 short a 30 0842 mu/. Combination face mill arbor Form A SK40 short long spigot 30 0845 Combination face mill arbor Form ADB SK40 A =100 30 0880 holcjC. Combination face mill arbor Form A SK40 A= 100 300885 (ifeGnnt1' Combination face mill arbor Form ADB SK40 A= 130 30 0895 (i&Gnnt Combination face mill arbor Form ADB SK40 A= 160 30 0910 1 jfecmnt 1 Combination face mill arbor Form ADB SK40 A 200 30 0930 1 jfecmnt 1 Combination face mill arbor Form ADB SK 50 short 30 0940 HOLEX Combination face mill arbor Form A SK 50 short 30 0950 1 jfacmnt 1 Combination face mill arbor Form ADB SK 50 A= 100 30 0980 HOLEX Combination face mill arbor Form A SK 50 A 100 30 0985 1 jfocnnt 1 Combination face mill arbor Form ADB SK 50 A= 130 300990 1 jfecnnt 1 Combination face mill arbor Form ADB SK 50 A= 160 301010 jtbGmnt” Combination face mill arbor Form ADB SK 50 A 200 Dimension A (30 0835,30 0840,30 0842) mm 55 55 55 60 60 0 D mm 32 40 48 58 70 l3 mm 17 19 21 24 27 L4 mm 27 31 33 38 41 L4 (30 0842) mm 30 40 60 60 - Spare lock screw 309860 16 22 27 32 40 Spare face mill drive ring 309870 16 22 27 32 40 Suitable special toggle spanner 309840 I 16 22 27 32 40 Main catalogue Hoffmann Group 46 605
