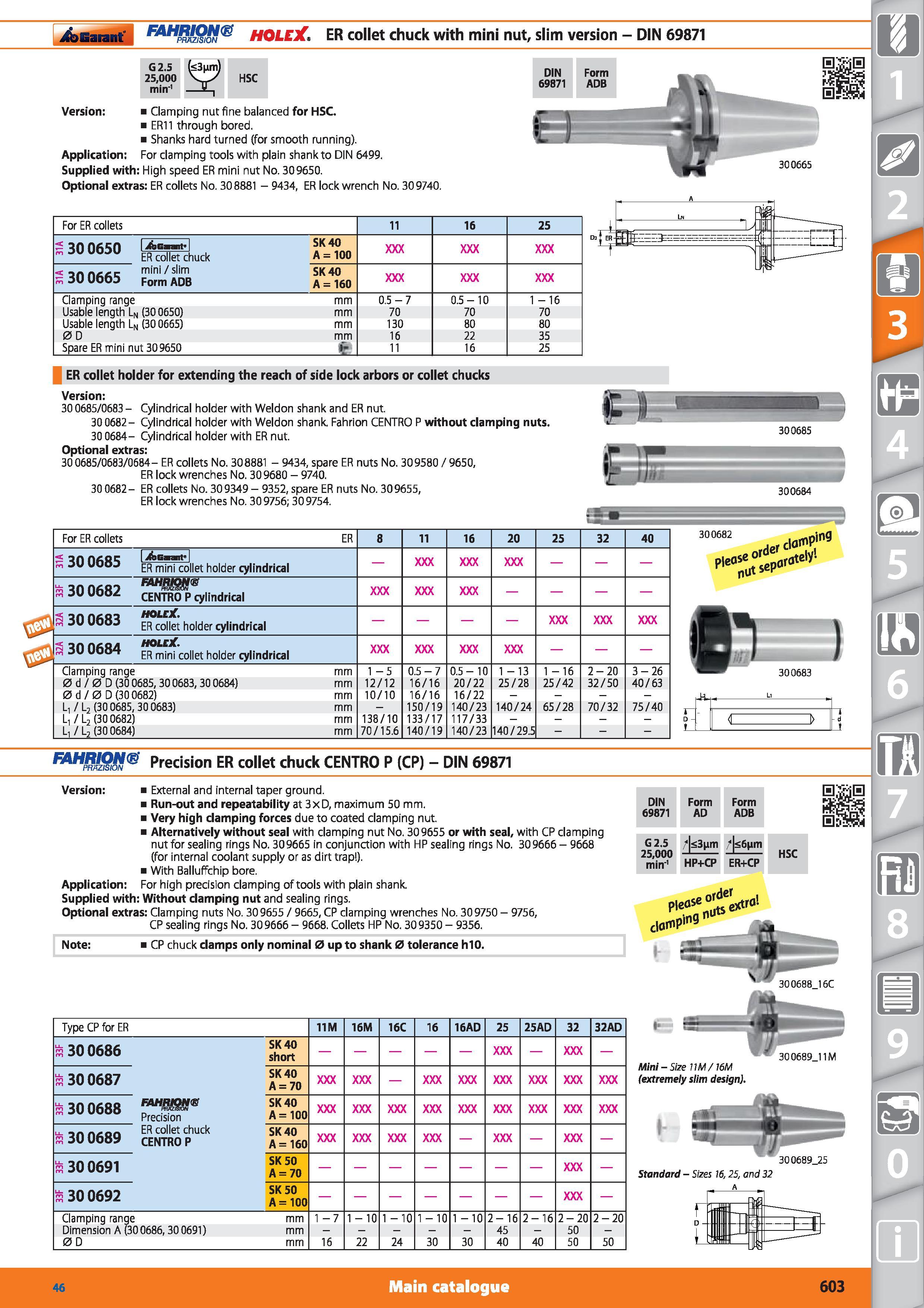

ER collet chuck Garant FAHRION HOLEX with mini nut, slim version DIN 69871 G2 5 25,000 min-1 HSC Version Clamping nut fine balanced for HSC ER11

ER collet chuck Garant FAHRION HOLEX with mini nut, slim version DIN 69871 G2.5 25,000 min-1 HSC Version Clamping nut fine balanced for HSC. ER11 through bored. Shanks hard turned (for smooth running). Application For clamping tools with plain shank to DIN 6499. Supplied with High speed ER mini nut No. 309650. Optional extras ER collets No. 308881 - 9434, ER lock wrench No. 309740. For ER collets 11 16 25 30 0650 ER collet chuck SK40 A 100 ii/ /r mini/slim - JU UDDj Form ADB SK40 A 160 Clamping range mm 0.5-7 0.5-10 1 -16 Usable length LN (300650) mm 70 70 70 Usable length LN (300665) mm 130 80 80 0 D mm 16 22 35 Spare ER mini nut 309650 r 11 16 25 ER collet holder for extending the reach of side lock arbors or collet chucks Version 30 0685/0683 - Cylindrical holder with Weldon shank and ER nut. 300682- Cylindrical holder with Weldon shank. Fahrion CENTRO P without clamping nuts. 30 0684- Cylindrical holder with ERnut. Optional extras 30 0685/0683/0684- ER collets No. 308881 - 9434, spare ER nuts No. 309580 / 9650, ER lock wrenches No. 309680 - 9740. 30 0682- ER collets No. 309349 - 9352, spare ER nuts No. 309655, ER lock wrenches No. 309756; 30 9754. 4 300684 For ER collets ER 8 11 16 20 25 32 40 300685 jfeGmnt” ER mini collet holder cylindrical s 30 0682 FAHRIQNS PRXZ&ION CENTRO P cylindrical 300683 HOLCX. ER collet holder cylindrical 300684 HOLEX ER mini collet holder cylindrical Clamping range mm 1 -5 0.5-7 0.5-10 1 -13 1 -16 2-20 3-26 0 d / 0 D (30 0685,30 0683,30 0684) mm 12/12 16/16 20/22 25/28 25/42 32/50 40/63 0 d / 0 D (30 0682) mm 10/10 16/16 16/22 L, / L2 (30 0685,300683) mm 150/19 140/23 140/24 65/28 70/32 75/40 L, / L2 (30 0682) mm 138/10 133/17 117/33 L, / L2 (30 0684) mm 70/15.6 140/19 140/23 140/29.5 - 300682 ,dercl 1 - d 1 Ifffl FAHRION PRAZISION Precision ER collet chuck CENTRO P (CP) - DIN 69871 Version External and internal taper ground. Run-out and repeatability at 3xD, maximum 50 mm. Very high clamping forces due to coated clamping nut. Alternatively without seal with clamping nut No. 309655 or with seal, with CP clamping nut for sealing rings No. 309665 in conjunction with HP sealing rings No. 309666 - 9668 (for internal coolant supply or as dirt trap ). With Balluffchip bore. Application For high precision clamping of tools with plain shank. Supplied with Without clamping nut and sealing rings. Optional extras Clamping nuts No. 309655 / 9665, CP clamping wrenches No. 30 9750 - 9756, CP sealing rings No. 309666 - 9668. Collets HP No. 309350 - 9356. DIN 69871 Form AD Form ADB G 2.5 25,000 min'1 / s3(im f <6nm HSC HP+CP ER+CP Note i CP chuck clamps only nominal 0 up to shank 0 tolerance hlO. Type CP for ER 11M 16M 16C 16 16AD 25 25AD 32 32AD 5 30 0686 FAHR QN
