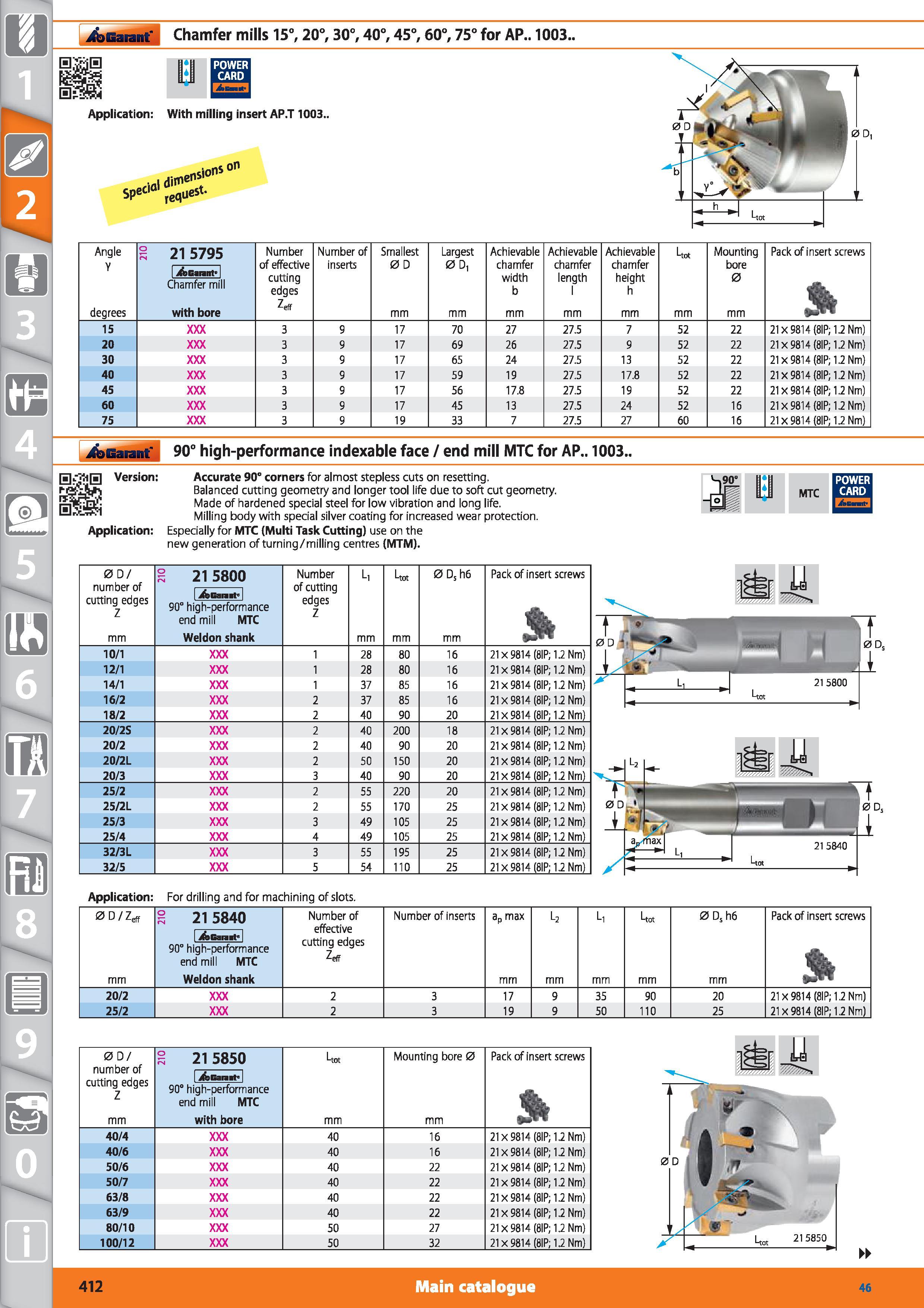

Garant Chamfer mills 15°, 20°, 30°, 40°, 45°, 60°, 75° for AP 1003 Application With milling insert AP.T 1003 Chamfer mill Number of effective cutting edges Number of inserts Smallest 0 D Largest 0 D, Achievable chamfer width b Achievable chamfer length 1 Achievable chamfer height h Uot Mounting bore 0 Pack of insert screws jiJTT degrees with bore mm 15 3 9 17 70 27 27.5 7 52 22 21x9814 (8IP; 1.2 Nm) 20 3 9 17 69 26 27.5 9 52 22 21x9814 (8IP; 1.2 Nm) 30 3 9 17 65 24 27.5 13 52 22 21x9814 (8IP; 1.2 Nm) 40 3 9 17 59 19 27.5 17.8 52 22 21x9814 (8IP; 1.2 Nm) 45 3 9 17 56 17.8 27.5 19 52 22 21x9814 (8IP; 1.2 Nm) 60 3 9 17 45 13 27.5 24 52 16 21x9814 (8IP; 1.2 Nm) 75 3 9 19 33 7 27.5 27 60 16 21x9814 (8IP; 1.2 Nm) iCbBarant' 90° high-performance indexable face / end mill MTC for AP 1003 Version Application Accurate 90° corners for almost stepless cuts on resetting. Balanced cutting geometry and longer tool life due to soft cut geometry. Made of hardened special steel for low vibration and long life. Milling body with special silver coating for increased wear protection. Especially for MTC (Multi Task Cutting) use on the new generation of turning/milling centres (MTM). MTC 0 D/ number of cutting edges Z mm S 215800 1 /bCarait' I 90° high-performance end mill MTC Weldon shank Number of cutting edges Z L, mm Uot mm 0 Ds h6 mm Pack of insert screws 10/1 1 28 80 16 21x9814 (8IP; 1.2 Nm) 12/1 1 28 80 16 21x9814 (8IP; 1.2 Nm) 14/1 1 37 85 16 21x9814 (SIP; 1.2 Nm) 16/2 2 37 85 16 21x9814 (8IP; 1.2 Nm) 18/2 2 40 90 20 21 x 9814 (SIP; 1.2 Nm) 20/2S 2 40 200 18 21x9814 (8IP; 1.2 Nm) 20/2 2 40 90 20 21x9814 (SIP; 1.2 Nm) 20/2L 2 50 150 20 21X 9814 (SIP; 1.2 Nm) 20/3 3 40 90 20 21x9814 (8IP; 1.2 Nm) 25/2 2 55 220 20 21 x 9814 (SIP; 1.2 Nm) 25/2L 2 55 170 25 21 x 9814 (SIP; 1.2 Nm) 25/3 3 49 105 25 21 x 9814 (SIP; 1.2 Nm) 25/4 4 49 105 25 21 x 9814 (SIP; 1.2 Nm) 32/3L 3 55 195 25 21x9814 (8IP; 1.2 Nm) 32/5 5 54 110 25 21 x 9814 (SIP; 1.2 Nm) Application For drilling and for machining of slots. 00/Z H 215840 1 Garant I 90° high-performance end mill MTC Number of effective cutting edges Zeff Number of inserts ap max l2 L, Uot 0Dsh6 Pack of insert screws mm Weldon shank mm 20/2 2 3 17 9 35 90 20 21X 9814 (SIP; 1.2 Nm) 25/2 2 3 19 9 50 110 25 21X 9814 (8IP; 1.2 Nm) 00/ number of cutting edges Z mm M 215850 1 XbCaraBt' I 90° high-performance end mill MTC with bore Uot mm Mounting bore 0 mm Pack of insert screws 40/4 40 16 21 x 9814 (SIP; 1.2 Nm) 40/6 40 16 21 x 9814 (SIP; 1.2 Nm) 50/6 40 22 21 x 9814 (SIP; 1.2 Nm) 50/7 40 22 21 x 9814 (SIP; 1.2 Nm) 63/8 40 22 21X 9814 (SIP; 1.2 Nm) 63/9 40 22 21x9814 (8IP; 1.2 Nm) 80/10 50 27 21 x 9814 (SIP; 1.2 Nm) 100/12 50 32 21 x 9814 (SIP; 1.2 Nm) 412 Main catalogue Hoffmann Group 46
