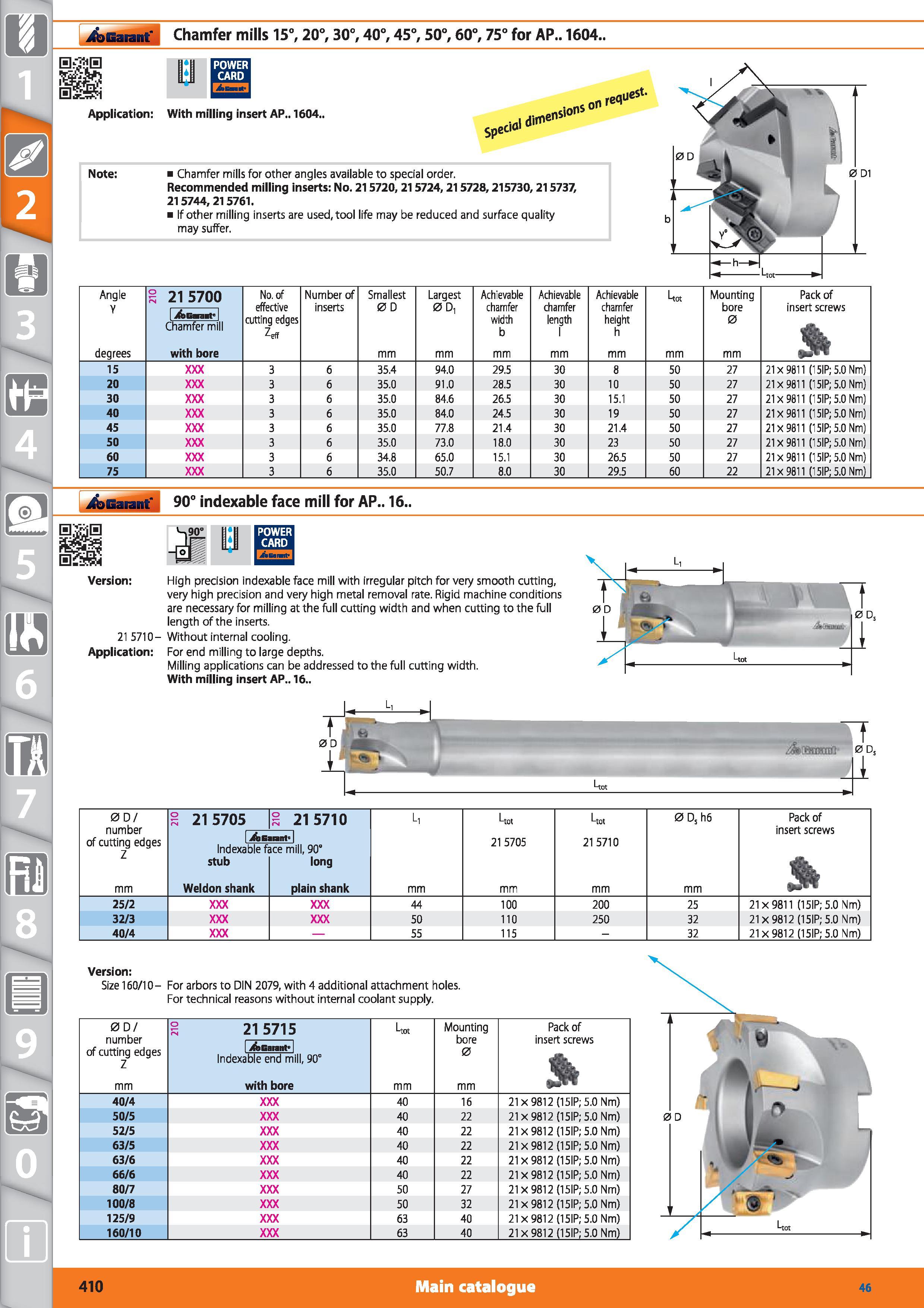

Garant Chamfer mills 15°, 20°, 30°, 40°, 45°, 50°, 60°, 75° for AP 1604 Application With milling insert AP 1604 Sped on req' iijest- Note Chamfer mills for other angles available to special order. Recommended milling inserts No. 215720, 215724,215728,215730,215737, 215744, 215761. If other milling inserts are used, tool life may be reduced and surface quality may suffer. Angle Y degrees g 215700 J&Gmat" Chamfer mill with bore No. of effective cutting edges Zeff Number of inserts Smallest 0 D mm Largest 0D, mm Achievable chamfer width b mm Achievable chamfer length 1 mm Achievable chamfer height h mm Uot mm Mounting bore 0 mm Pack of insert screws 15 3 6 35.4 94.0 29.5 30 8 50 27 21x9811 (1 SIP; 5.0 Nm) 20 3 6 35.0 91.0 28.5 30 10 50 27 21x9811 (15IP; 5.0 Nm) 30 3 6 35.0 84.6 26.5 30 15.1 50 27 21x9811 (15IP; 5.0 Nm) 40 3 6 35.0 84.0 24.5 30 19 50 27 21X9811 (15IP; 5.0 Nm) 45 3 6 35.0 77.8 21.4 30 21.4 50 27 21x9811 (15IP; 5.0 Nm) 50 3 6 35.0 73.0 18.0 30 23 50 27 21X9811 (15IP; 5.0 Nm) 60 3 6 34.8 65.0 15.1 30 26.5 50 27 21x9811 (1 SIP; 5.0 Nm) 75 3 6 35.0 50.7 8.0 30 29.5 60 22 21x9811 (15IP; 5.0 Nm) ioBanrf 90° indexable face mill for AP 16 Version High precision indexable face mill with irregular pitch for very smooth cutting, very high precision and very high metal removal rate. Rigid machine conditions are necessary for milling at the full cutting width and when cutting to the full length of the inserts. 21 5710- Without internal cooling. Application For end milling to large depths. Milling applications can be addressed to the full cutting width. With milling insert AP 16 0 D/ number of cutting edges Z S 215705 S 215710 L, L-tOt L-tOt 0Dsh6 Pack of insert screws I Jks Indexable f stub nnt 1 ice mill, 90° long 21 5705 215710 mm Weldon shank plain shank mm pJlTC 25/2 44 100 200 25 21x9811 (15IP; 5.0 Nm) 32/3 50 110 250 32 21x9812 (15IP; 5.0 Nm) 40/4 55 115 - 32 21x9812 (15IP; 5.0 Nm) Version Size 160/10- For arbors to DIN 2079, with 4 additional attachment holes. For technical reasons without internal coolant supply. 0 D/ number of cutting edges Z mm S 215715 1 Garant Indexable end mill, 90° with bore Uot mm Mounting bore 0 mm Pack of insert screws 40/4 40 16 21 x 9812 (15IP; 5.0 Nm) 50/5 40 22 21 x 9812 (15IP; 5.0 Nm) 52/5 40 22 21 x 9812 (15IP; 5.0 Nm) 63/5 40 22 21 x 9812 (15IP; 5.0 Nm) 63/6 40 22 21X 9812 (15IP; 5.0 Nm) 66/6 40 22 21X 9812 (15IP; 5.0 Nm) 80/7 50 27 21X 9812 (15IP; 5.0 Nm) 100/8 50 32 21 x 9812 (15IP; 5.0 Nm) 125/9 63 40 21 x 9812 (15IP; 5.0 Nm) 160/10 63 40 21X 9812 (15IP; 5.0 Nm) 410 Main catalogue Hoffmann Group 46
