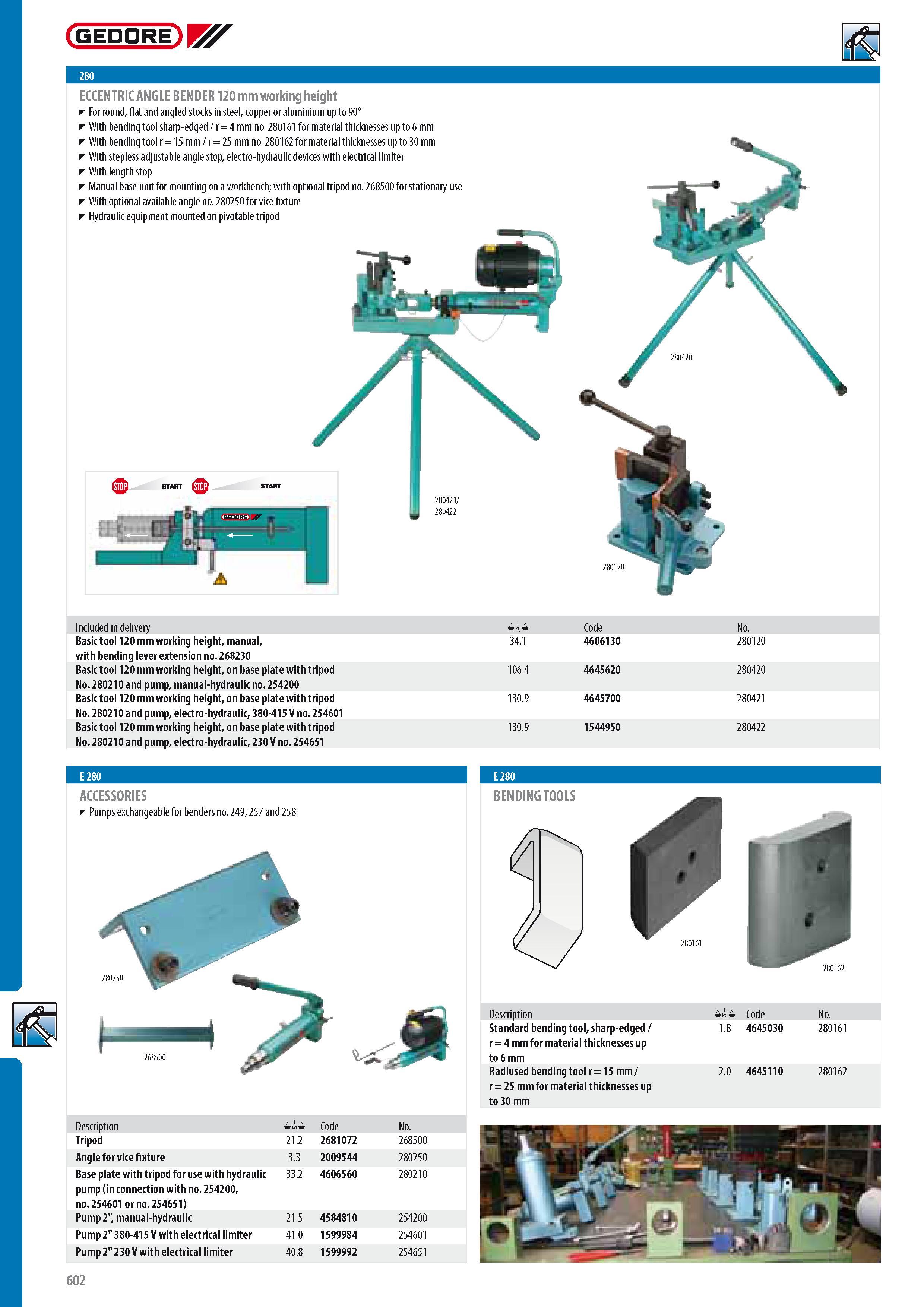

GEDORE ECCENTRIC ANGLE BENDER 120 mm working height For round flat and angled stocks in steel copper or aluminium up to 90 With bending tool sharp-edged r4 mm no. 280161 for material thicknesses up to 6 mm With bending tool r 15 mm r 25 mm no. 280162 for material thicknesses up to 30 mm With stepless adjustable angle stop electro-hydraulic devices with electrical limiter With length stop Manual base unit for mounting on a workbench; with optional tripod no. 268500 for stationary use With optional available angle no. 280250 for vice fixture Hydraulic equipment mounted on pivotable tripod Included in delivery Basic tool 120 mm working height manual with bending lever extension no. 268230 Basic tool 120 mm working height on base plate with tripod No. 280210 and pump manual-hydraulic no. 254200 Basic tool 120 mm working height on base plate with tripod No. 280210 and pump electro-hydraulic 380-415 V no. 254601 Basic tool 120 mm working height on base plate with tripod No. 280210 and pump electro-hydraulic 230 V no. 254651 106.4 130.9 130.9 4645620 4645700 1544950 No. 280120 280420 280421 280422 ACCESSORIES Pumps exchangeable for benders no. 249 257 and 258 BENDING TOOLS Description 0 Code No. Tripod 21.2 2681072 268500 Angle for vice fixture 3.3 2009544 280250 Base plate with tripod for use with hydraulic pump (in connection with no. 254200 no. 254601 or no. 254651) 33.2 4606560 280210 Pump 2" manual-hydraulic 21.5 4584810 254200 Pump 2" 380-415 V with electrical limiter 41.0 1599984 254601 Pump 2" 230 V with electrical limiter 40.8 1599992 254651 Description 0 Code No. Standard bending tool sharp-edged 1.8 4645030 280161 r 4 mm for material thicknesses up to 6 mm Radiused bending tool r 15 mm 2.0 4645110 280162 r 25 mm for material thicknesses up to 30 mm 280 280162 602
