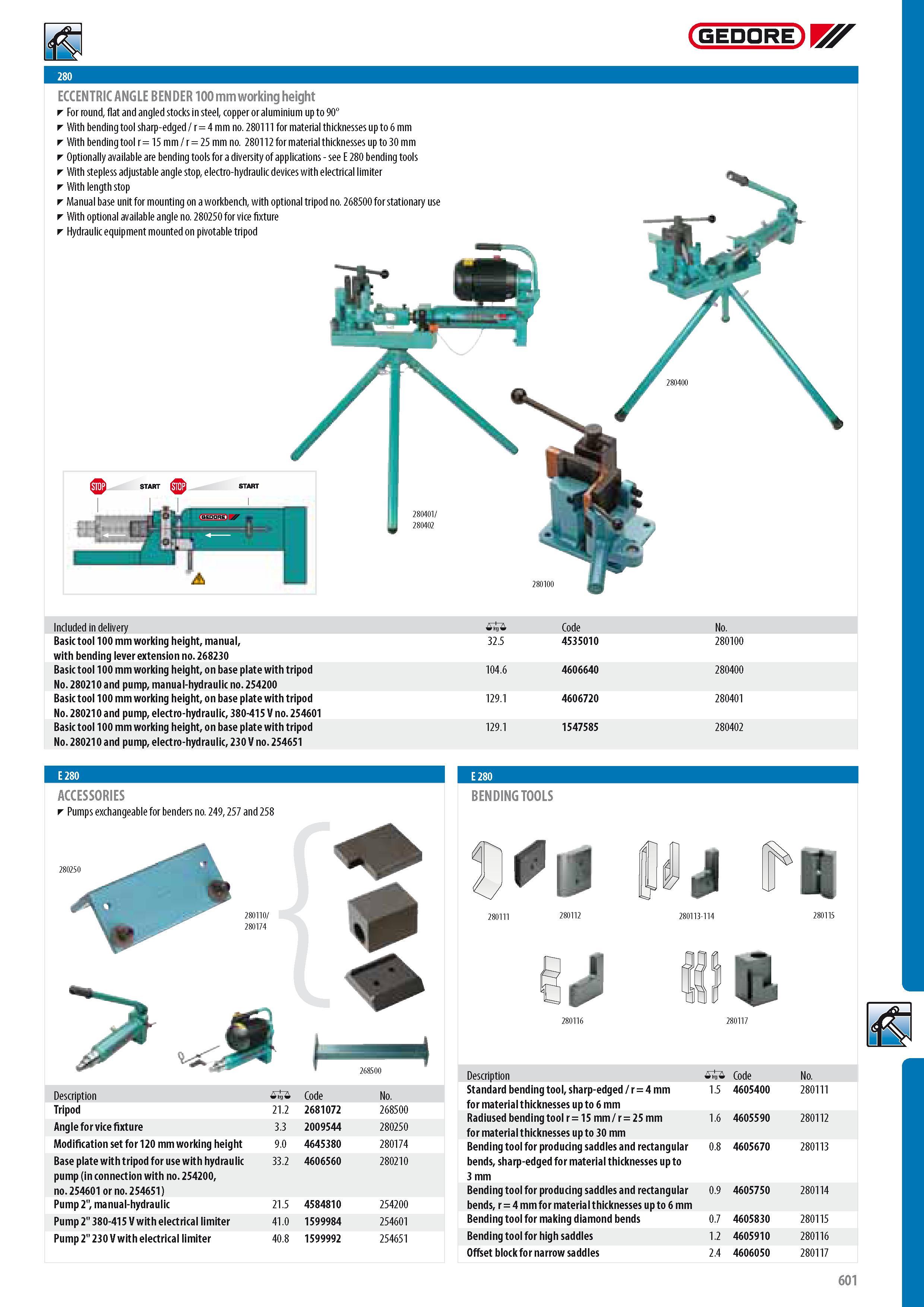

GEDORE ECCENTRIC ANGLE BENDER 100 mm working height For round flat and angled stocks in steel copper or aluminium up to 90 With bending tool sharp-edged r4 mm no. 280111 for material thicknesses up to 6 mm With bending tool r 15 mm r 25 mm no. 280112 for material thicknesses up to 30 mm Optionally available are bending tools for a diversity of applications - see E 280 bending tools With stepless adjustable angle stop electro-hydraulic devices with electrical limiter With length stop Manual base unit for mounting on a workbench with optional tripod no. 268500 for stationary use With optional available angle no. 280250 for vice fixture Hydraulic equipment mounted on pivotable tripod Included in delivery 0 Code No. Basic tool 100 mm working height manual with bending lever extension no. 268230 32.5 4535010 280100 Basic tool 100 mm working height on base plate with tripod No. 280210 and pump manual-hydraulic no. 254200 104.6 4606640 280400 Basic tool 100 mm working height on base plate with tripod No. 280210 and pump electro-hydraulic 380-415 V no. 254601 129.1 4606720 280401 Basic tool 100 mm working height on base plate with tripod No. 280210 and pump electro-hydraulic 230 V no. 254651 129.1 1 547585 280402 E 280 E 280 ACCESSORIES BENDING TOOLS Pumps exchangeable for benders no. 249 257 and 258 280110 280174 280111 280112 Description 0 Code No. Tripod 21.2 2681072 268500 Angle for vice fixture 3.3 2009544 280250 Modification set for 120 mm working height 9.0 4645380 280174 Base plate with tripod for use with hydraulic pump (in connection with no. 254200 no. 254601 or no. 254651) 33.2 4606560 280210 Pump 2" manual-hydraulic 21.5 4584810 254200 Pump 2" 380-415 V with electrical limiter 41.0 1599984 254601 Pump 2" 230 V with electrical limiter 40.8 1599992 254651 Description 0 Code No. Standard bending tool sharp-edged r 4 mm for material thicknesses up to 6 mm 1.5 4605400 280111 Radiused bending tool r 15 mm r 25 mm for material thicknesses up to 30 mm 1.6 4605590 280112 Bending tool for producing saddles and rectangular bends sharp-edged for material thicknesses up to 3 mm 0.8 4605670 280113 Bending tool for producing saddles and rectangular bends r 4 mm for material thicknesses up to 6 mm 0.9 4605750 280114 Bending tool for making diamond bends 0.7 4605830 280115 Bending tool for high saddles 1.2 4605910 280116 Offset block for narrow saddles 2.4 4606050 280117 280 280115 280116 601
