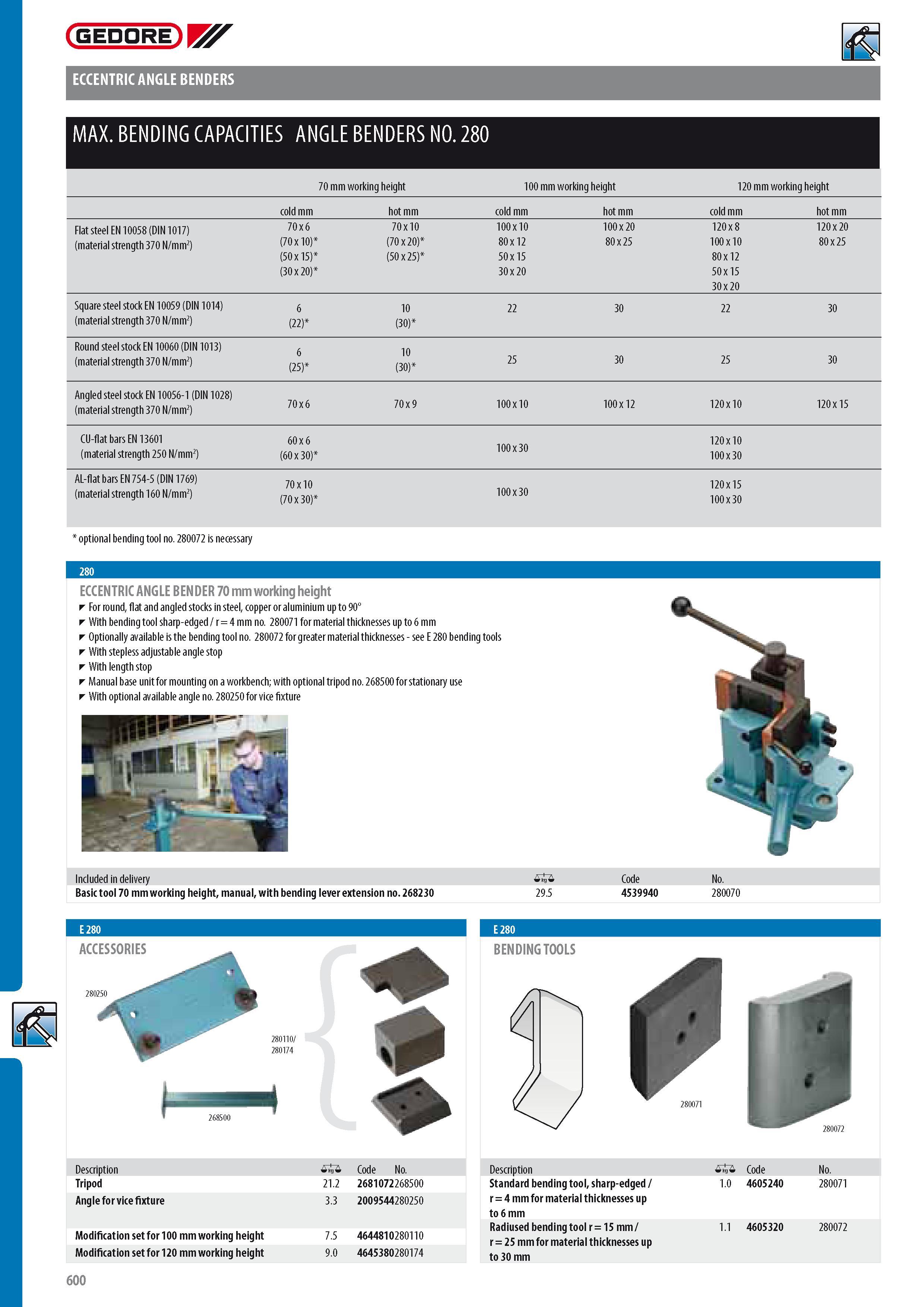

GEDORE ECCENTRIC ANGLE BENDERS MAX. BENDING CAPACITIES ANGLE BENDERS NO. 280 70 mm working height 100 mm working height 120 mm working height cold mm hot mm cold mm hot mm cold mm hot mm Flat steel EN 10058 (DIN 1017) (material strength 370 N mm2) 70 x 6 (70 x 10) (50 x 15) (30x20) 70 x 10 100x 10 (70 x 20) 80 x 12 (50 x 25) 50 x 15 30 x 20 100 x 20 80 x 25 120 x 8 100x 10 80 x 12 50 x 15 30 x 20 120 x 20 80 x 25 Square steel stock EN 10059 (DIN 1014) 6 10 22 30 22 30 (material strength 370 N mm2) (22) (30) Round steel stock EN 10060 (DIN 1013) 6 (25) 10 (material strength 370 N mm2) 10 25 (30) 25 30 25 30 Angled steel stock EN 10056-1 (DIN 1028) (material strength 370 N mm2) 70 x 6 70x9 100x 10 100 x 12 120 x 10 120 x 15 CU-flat bars EN 13601 (material strength 250 N mm2) 60 x 6 (60x30) 100 x 30 120 x 10 100 x 30 AL-flat bars EN 754-5 (DIN 1769) (material strength 160 N mm2) 70 x 10 (70 x 30) 100 x 30 120 x 15 100 x 30 optional bending tool no. 280072 is necessary ECCENTRIC ANGLE BENDER 70 mm working height For round flat and angled stocks in steel copper or aluminium up to 90 With bending tool sharp-edged r4 mm no. 280071 for material thicknesses up to 6 mm Optionally available is the bending tool no. 280072 for greater material thicknesses - see E 280 bending tools With stepless adjustable angle stop With length stop Manual base unit for mounting on a workbench; with optional tripod no. 268500 for stationary use With optional available angle no. 280250 for vice fixture Included in delivery -i0 Code No. Basic tool 70 mm working height manual with bending lever extension no. 268230 29.5 4539940 280070 E280 E 280 ACCESSORIES BENDING TOOLS Description 2 685 00 0 Code No. Tripod 21.2 2681072268500 Angle for vice fixture 3.3 2009544280250 Modification set for 100 mm working height 7.5 4644810280110 Modification set for 120 mm working height 9.0 4645380280174 Description 0 Code No. Standard bending tool sharp-edged 1.0 4605240 280071 r 4 mm for material thicknesses up to 6 mm Radiused bending tool r 15 mm 1.1 4605320 280072 r 25 mm for material thicknesses up to 30 mm 280 600
