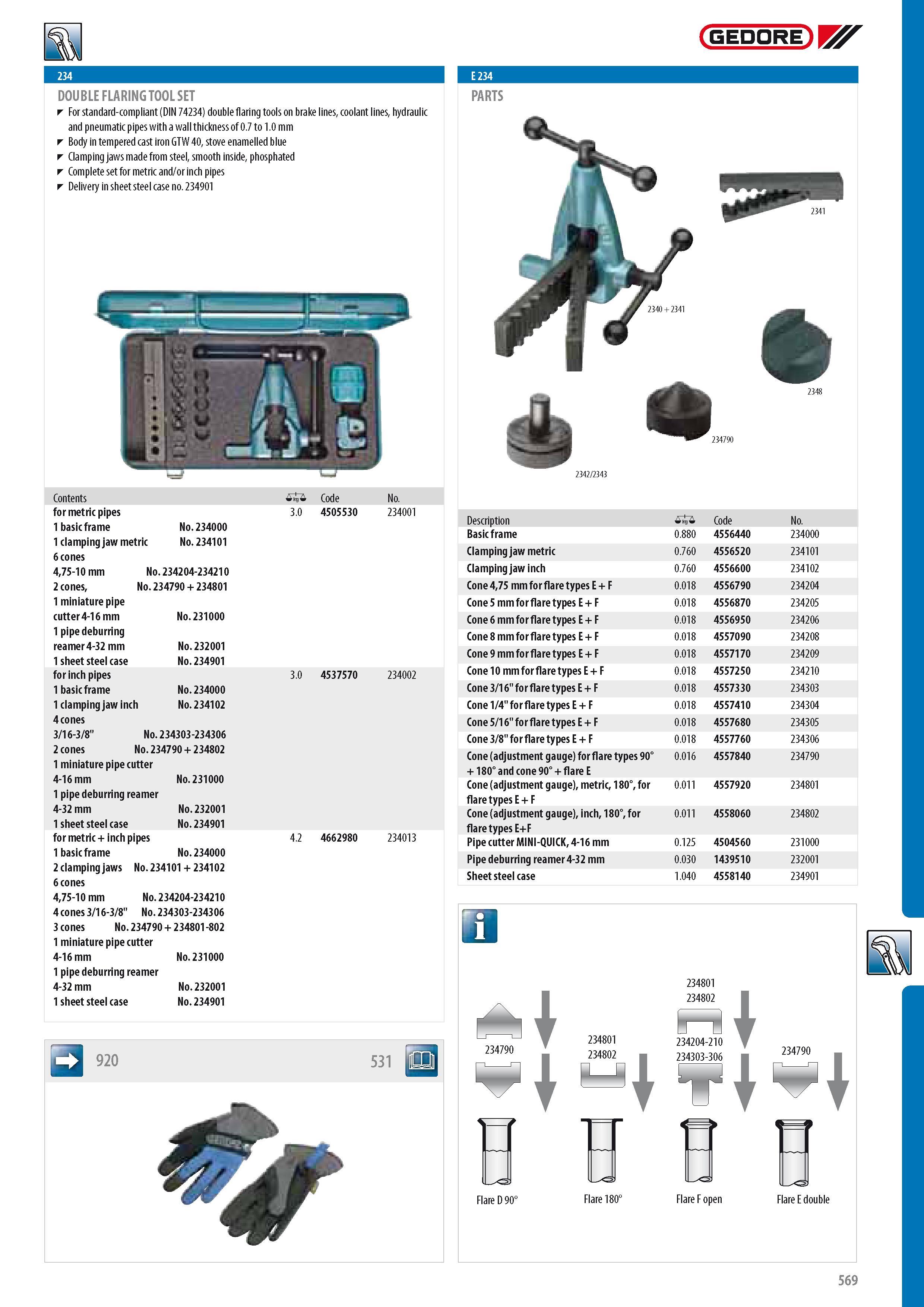

GEDORE DOUBLE FLARING TOOL SET For standard-compliant (DIN 74234) double flaring tools on brake lines coolant lines hydraulic and pneumatic pipes with a wall thickness of 0.7 to 1.0 mm Body in tempered cast iron GTW 40 stove enamelled blue Clamping jaws made from steel smooth inside phosphated Complete set for metric and or inch pipes Delivery in sheet steel case no. 234901 PARTS Contents for metric pipes 1 basic frame 1 clamping jaw metric 6 cones 475-10 mm 2 cones 1 miniature pipe No.234000 No. 234101 No. 234204-234210 No.234790+234801 for metric + inch pipes 1 basic frame No. 234000 2 clamping jaws No. 234101 + 234102 6 cones 475-10 mm No. 234204-234210 4 cones 3 16-3 8" No. 234303-234306 3 cones No.234790 + 234801-802 1 miniature pipe cutter 4-16 mm No. 231000 1 pipe deburring reamer 4-32 mm No. 232001 1 sheet steel case No. 234901 920 0 Code No. 3.0 4505530 234001 4.2 4662980 234013 cutter 4-16 mm 1 pipe deburring reamer 4-32 mm 1 sheet steel case No. 231000 No. 232001 No. 234901 for inch pipes 3.0 4537570 234002 1 basic frame No. 234000 1 clamping jaw inch No. 234102 4 cones 3 16-3 8" No. 234303-234306 2 cones No.234790 + 234802 1 miniature pipe cutter 4-16 mm No. 231000 1 pipe deburring reamer 4-32 mm No. 232001 1 sheet steel case No. 234901 Description 0 Code No. Basic frame 0.880 4556440 234000 Clamping jaw metric 0.760 4556520 234101 Clamping jaw inch 0.760 4556600 234102 Cone 475 mm for flare types E + F 0.018 4556790 234204 Cone 5 mm for flare types E + F 0.018 4556870 234205 Cone 6 mm for flare types E + F 0.018 4556950 234206 Cone 8 mm for flare types E + F 0.018 4557090 234208 Cone 9 mm for flare types E + F 0.018 4557170 234209 Cone 10 mm for flare types E + F 0.018 4557250 234210 Cone 3 16" for flare types E + F 0.018 4557330 234303 Cone 1 4" for flare types E + F 0.018 4557410 234304 Cone 5 16" for flare types E + F 0.018 4557680 234305 Cone 3 8" for flare types E + F 0.018 4557760 234306 Cone (adjustment gauge) for flare types 90 + 180 and cone 90 + flare E 0.016 4557840 234790 Cone (adjustment gauge) metric 180 for flare types E + F 0.011 4557920 234801 Cone (adjustment gauge) inch 180 for flare types E+F 0.011 4558060 234802 Pipe cutter MINI-QUICK 4-16 mm 0.125 4504560 231000 Pipe deburring reamer 4-32 mm 0.030 1439510 232001 Sheet steel case 1.040 4558140 234901 234801 234802 234801 234204-210 234790 234802 . 234303-306 234790 J Flare D 90 Flare 180 Flare F open Flare E double 234 2342 2343 569
