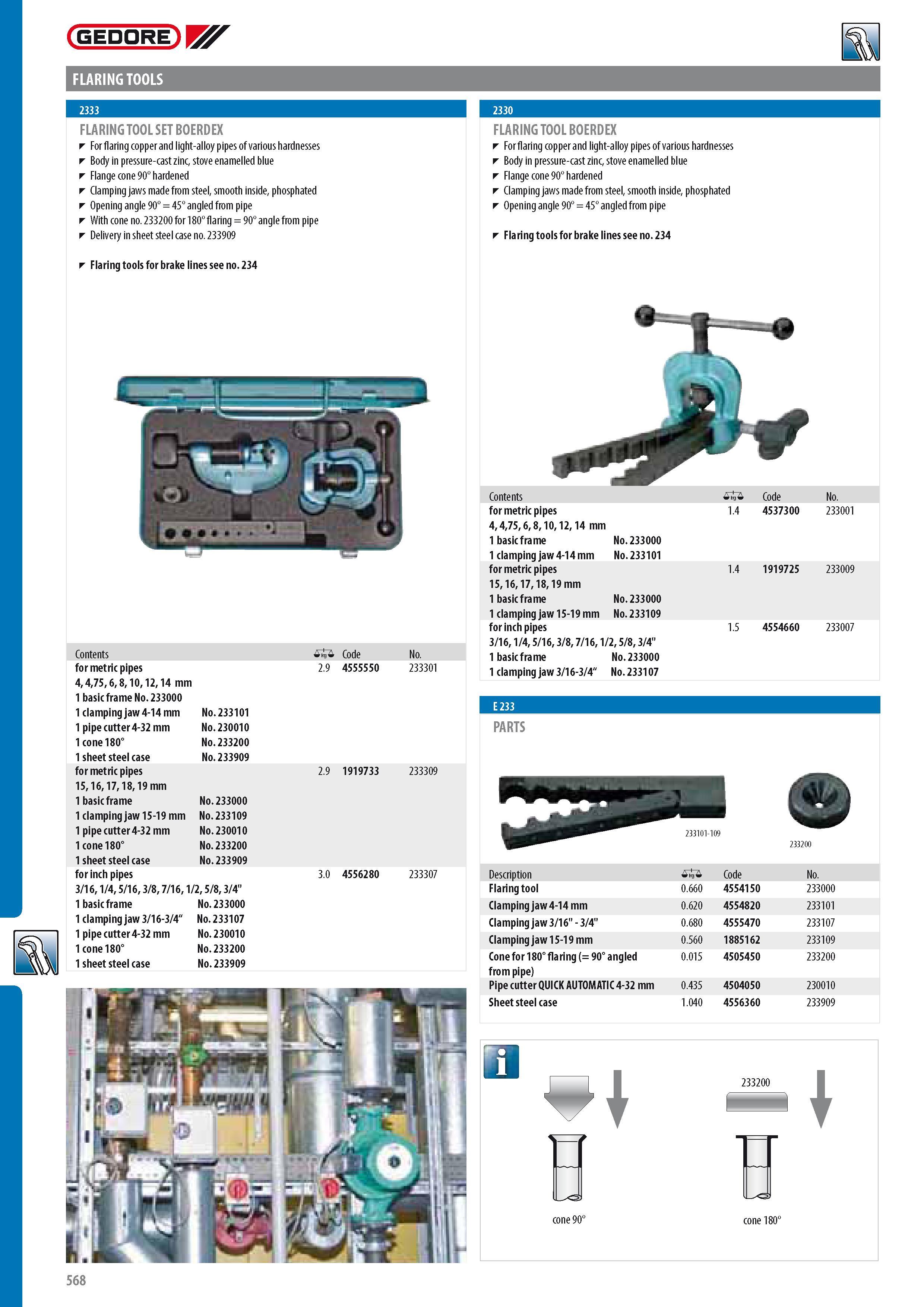

GEDORE FLARING TOOLS FLARING TOOL SET BOERDEX F orflaring copper and light-alloy pipes of various hardnesses Body in pressure-cast zinc stove enamelled blue Flange cone 90 hardened Clamping jaws made from steel smooth inside phosphated Opening angle 90 45 angled from pipe With cone no. 233200 for 180 flaring 90 angle from pipe Delivery in sheet steel case no. 233909 FLARING TOOL BOERDEX F orflaring copperand light-alloy pipes of various hardnesses Body in pressure-cast zinc stove enamelled blue Flange cone 90 hardened Clamping jaws made from steel smooth inside phosphated Opening angle 90 45 angled from pipe Flaring tools for brake lines see no. 234 Flaring tools for brake lines see no. 234 Contents for metric pipes 4 475 6 8 10 12 14 mm 1 basic frame No. 233000 1 clamping jaw 4-14 mm No.233101 1 pipe cutter 4-32 mm No.230010 1 cone 180 No.233200 1 sheet steel case No. 233909 for metric pipes 15 16 17 18 19 mm 1 basic frame No.233000 1 clamping jaw 15-19 mm No.233109 1 pipe cutter 4-32 mm No.230010 1 cone 180 No. 233200 1 sheet steel case No.233909 0 Code 2.9 4555550 No. 233301 2.9 1919733 233309 for inch pipes 3 16 1 4 5 16 3 8 7 16 1 2 5 8 3 4" 1 basic frame No. 233000 1 clamping jaw 3 16-3 4 No. 233107 1 pipe cutter 4-32 mm No. 230010 1 cone 180 No.233200 1 sheet steel case No. 233909 3.0 4556280 233307 Contents for metric pipes 4 475 6 8 10 12 14 mm 1 basic frame 1 clamping jaw 4-14 mm for metric pipes 15 16 17 18 19 mm 1 basic frame 1 clamping jaw 15-19 mm for inch pipes 3 16 1 4 5 16 3 8 7 16 1 2 5 8 3 4" 1 basic frame No. 233000 1 clamping jaw 3 16-3 4 No. 233107 PARTS No. 233000 No. 233101 No. 233000 No. 233109 0 Code No. 1.4 4537300 233001 1.4 1919725 233009 1.5 4554660 233007 Description 0 Code No. Flaring tool 0.660 4554150 233000 Clamping jaw 4-14 mm 0.620 4554820 233101 Clamping jaw 3 16" - 3 4" 0.680 4555470 233107 Clamping jaw 15-19 mm 0.560 1885162 233109 Cone for 180 flaring ( 90 angled from pipe) 0.015 4505450 233200 Pipe cutter QUICK AUTOMATIC 4-32 mm 0.435 4504050 230010 Sheet steel case 1.040 4556360 233909 568 2333 2330 233200
