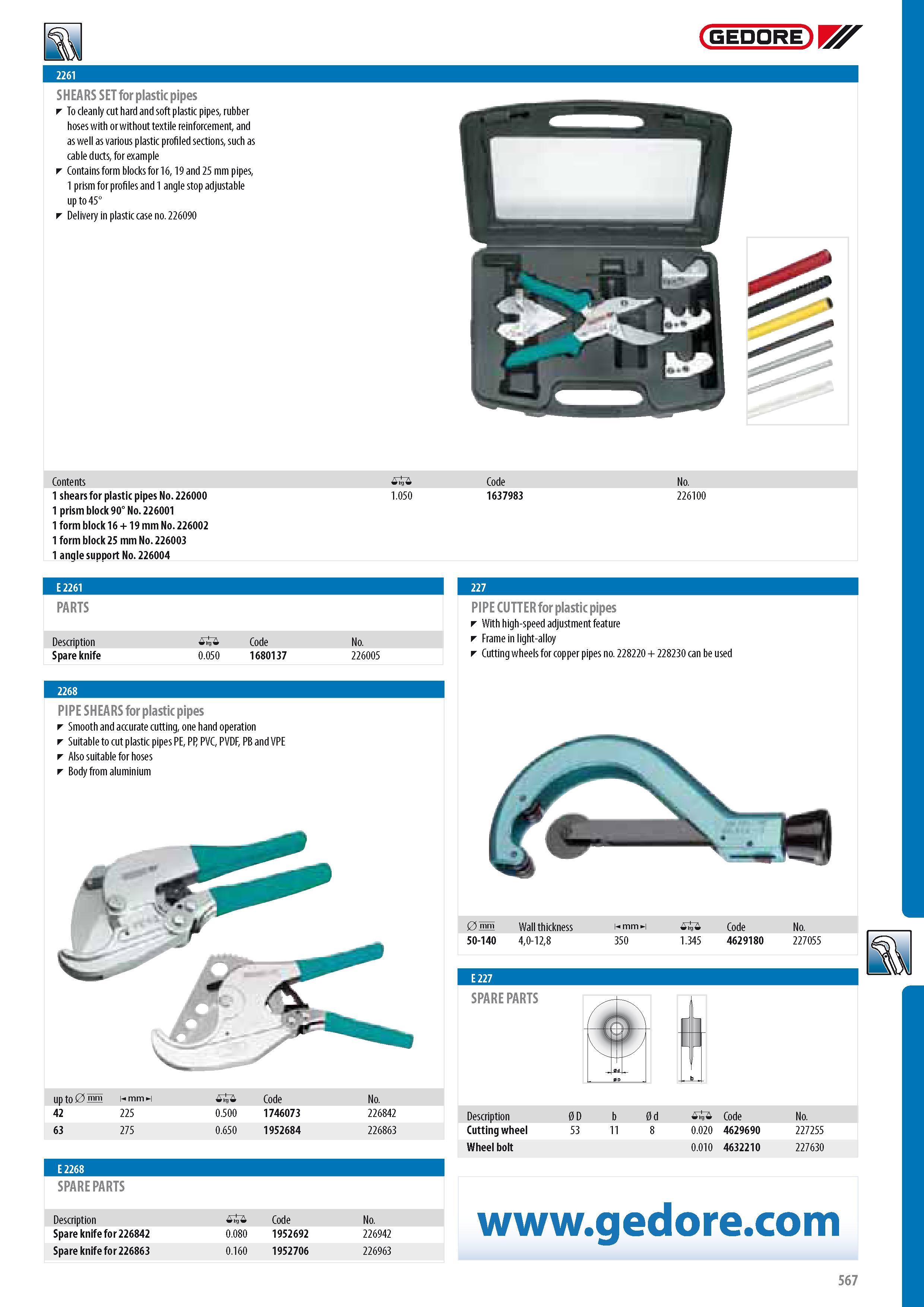

GEDORE SHEARS SET for plastic pipes To cleanly cut hard and soft plastic pipes rubber hoses with or without textile reinforcement and as well as various plastic profiled sections such as cable ducts for example Contains form blocks for 16 19 and 25 mm pipes 1 prism for profiles and 1 angle stop adjustable up to 45 Delivery in plastic case no. 226090 Contents 0 Code No. 1 shears for plastic pipes No. 226000 1 prism block 90 No. 226001 1 form block 16 + 19 mm No. 226002 1 form block 25 mm No. 226003 1 angle support No. 226004 1.050 1637983 226100 PARTS Description Spare knife 0 Code 0.050 1 6801 37 No. 226005 PIPE CUTTER for plastic pipes With high-speed adjustment feature Frame in light-alloy Cutting wheels for copper pipes no. 228220 + 228230 can be used 227 PIPE SHEARS for plastic pipes Smooth and accurate cutting one hand operation Suitable to cut plastic pipes PE PP PVC PVDF PB and VPE Also suitable for hoses Body from aluminium m mm Wall thickness m mm ml -i0 Code No. 50-140 40-128 350 1.345 4629180 227055 E 227 SPARE PARTS R up to m m mm ml 0 Code No. 42 225 0.500 1746073 226842 63 275 0.650 1952684 226863 E 2268 SPARE PARTS Description 0 Code No. Spare knife for 226842 0.080 1952692 226942 Spare knife for 226863 0.160 1952706 226963 Description 0 D Cutting wheel 53 Wheel bolt b 0 d 0 Code 11 8 0.020 4629690 0.010 4632210 No. 227255 227630 GEDORE 567 2268
