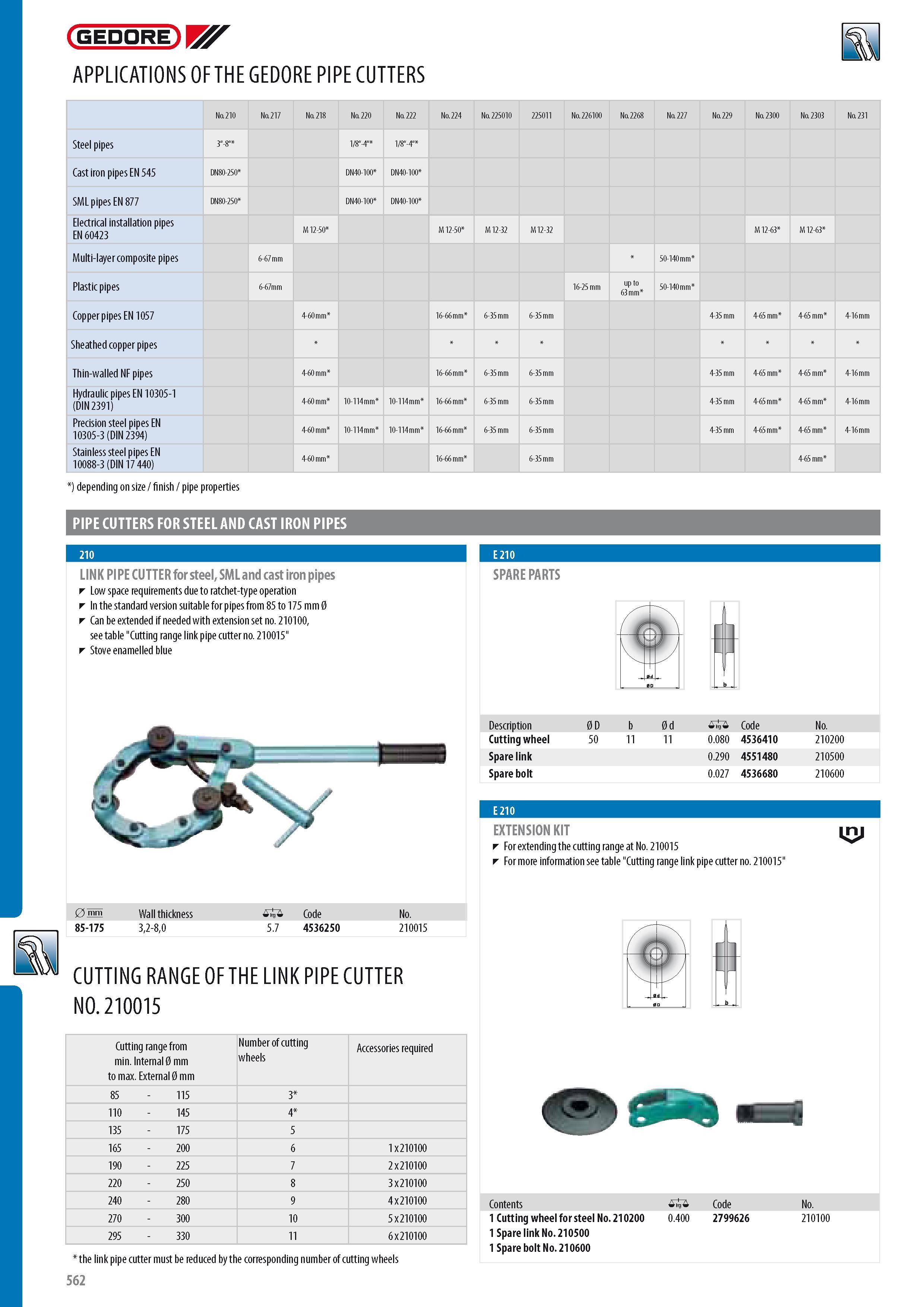

GEDORE APPLICATIONS OF THE GEDORE PIPE CUTTERS No. 210 No. 217 No. 218 No. 220 No. 222 No. 224 No. 225010 225011 Steel pipes 3"-8" 1 8"-4" 1 8"-4" Cast iron pipes EN 545 DN80-250 DN40-100 DN40-100 SML pipes EN 877 DN80-250 DN40-100 DN40-100 Electrical installation pipes EN 60423 M 12-50 M 12-50 M 12-32 M12-32 Multi-layer composite pipes 6-67 mm Plastic pipes 6-67mm Copper pipesEN1057 4-60 mm 16-66 mm 6-35 mm 6-35 mm Sheathed copper pipes Thin-walled NF pipes 4-60 mm 16-66 mm 6-35 mm 6-35 mm Hydraulic pipes EN 10305-1 (DIN 2391) 4-60 mm 10-114 mm 10-114 mm 16-66 mm 6-35 mm 6-35 mm Precision steel pipes EN 10305-3 (DIN 2394) 4-60 mm 10-114 mm 10-114 mm 16-66 mm 6-35 mm 6-35 mm Stainless steel pipes EN 10088-3 (DIN 17 440) 4-60 mm 16-66 mm 6-35 mm 50-140 mm 16-25 mm up to. 50-140 mm 63 mm No. 229 No. 2300 No. 2303 No. 231 M 12-63 M 12-63 4-35 mm 4-65 mm 4-65 mm 4-16 mm 4-35 mm 4-65 mm 4-65 mm 4-16 mm 4-35 mm 4-65 mm 4-65 mm 4-16 mm 4-35 mm 4-65 mm 4-65 mm 4-16 mm 4-65 mm ) depending on size finish pipe properties PIPE CUTTERS FOR STEEL AND CAST IRON PIPES LINK PIPE CUTTER for steel SML and cast iron pipes Low space requirements due to ratchet-type operation In the standard version suitable for pipes from 85 to 175 mm 0 Can be extended if needed with extension set no. 210100 see table "Cutting range link pipe cutter no. 210015" Stove enamelled blue SPARE PARTS B Description 0 D b 0 d 0 Code No. Cutting wheel 50 11 11 0.080 4536410 210200 Spare link 0.290 4551480 210500 Spare bolt 0.027 4536680 210600 E 210 EXTENSION KIT For extending the cutting range at No. 210015 For more information see table "Cutting range link pipe cutter no. 210015" G m Wall thickness 85-175 32-80 -i0 5.7 Code 4536250 No. 210015 CUTTING RANGE OF THE LINK PIPE CUTTER NO. 210015 Cutting range from min. Internal 0 mm to max. External 0 mm Number of cutting wheels Accessories required 85 - 115 3 110 - 145 4 135 - 175 5 165 - 200 6 1x210100 190 - 225 7 2x210100 220 - 250 8 3x210100 240 - 280 9 4x210100 270 - 300 10 5x210100 295 - 330 11 6x210100 the link pipe cutter must be reduced by the corresponding number of cutting wheels Contents 1 Cutting wheel for steel No. 210200 1 Spare link No. 210500 1 Spare bolt No. 210600 0 0.400 Code 2799626 No. 210100 562
