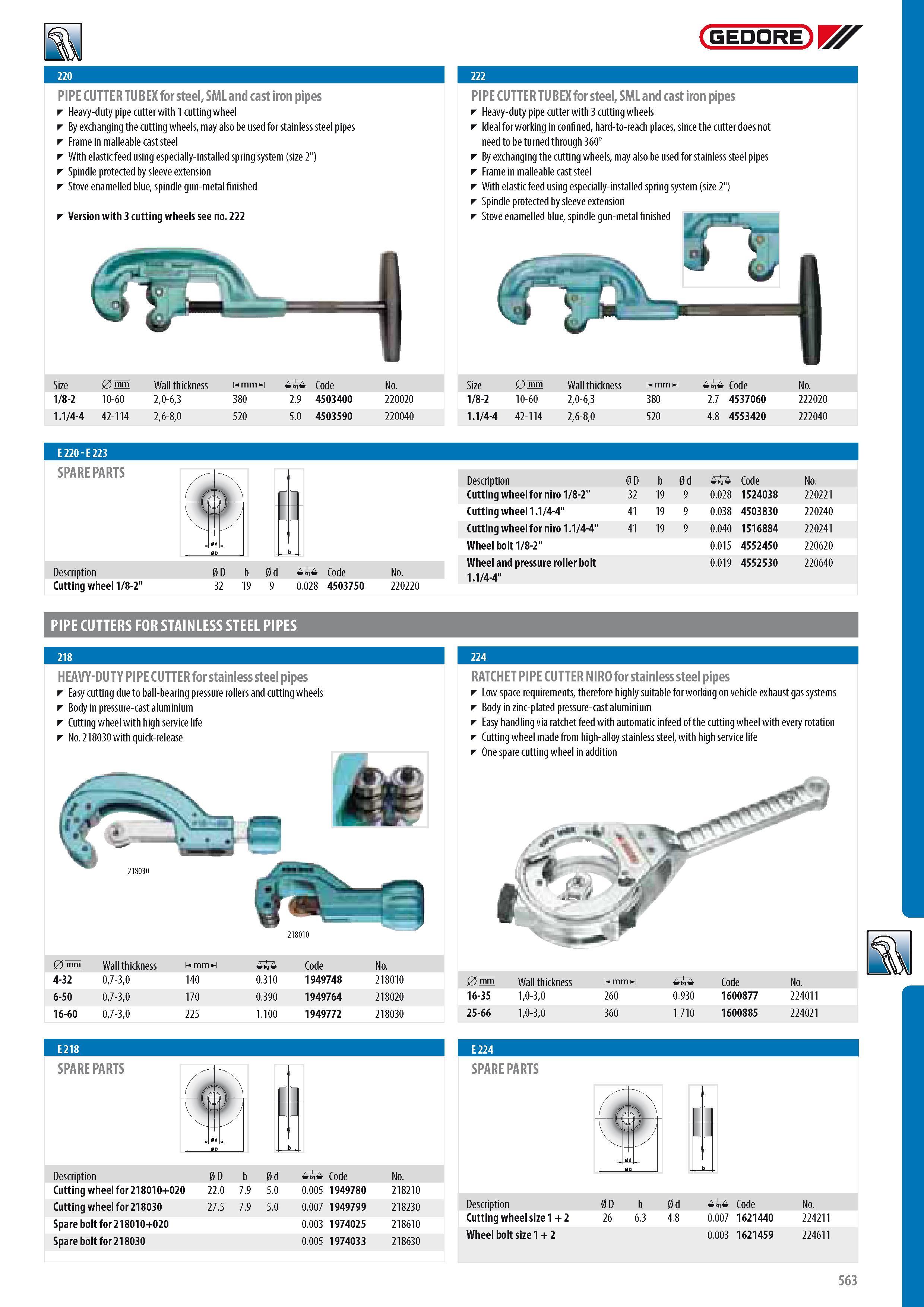

565 Каталог GEDORE 2014 Профессиональный слесарный инструмент и оборудование Стр.563

Каталог GEDORE 2014 Слесарный инструмент Стр. 563 0565 ENG Lab2u

GEDORE PIPE CUTTER TUBEX for steel SML and cast iron pipes Heavy-duty pipe cutterwith 1 cutting wheel By exchanging the cutting wheels may also be used for stainless steel pipes Frame in malleable cast steel With elastic feed using especially-installed spring system (size 2") Spindle protected by sleeve extension Stove enamelled blue spindle gun-metal finished Version with 3 cutting wheels see no. 222 Size 0 1 8-2 10-60 1.1 4-4 42-114 E220 - E223 SPARE PARTS Wall thickness mm- 20-63 380 26-80 520 0 Code No. 2.9 4503400 220020 5.0 4503590 220040 B Description Cutting wheel 1 8-2" 0 D b 0 d 0 Code No. 32 19 9 0.028 4503750 220220 PIPE CUTTER TUBEX for steel SML and cast iron pipes H eavy-duty pipe cutterwith 3 cutting wheels I deal forworking in confined hard-to-reach places since the cutter does not need to be turned through 360 By exchanging the cutting wheels may also be used for stainless steel pipes Frame in malleable cast steel With elastic feed using especially-installed spring system (size 2") Spindle protected by sleeve extension Stove enamelled blue spindle gun-metal finished 1 8-2 10-60 20-63 1.1 4-4 42-114 26-80 380 2.7 4537060 222020 520 4.8 4553420 222040 Description 0 D b 0 d 0 Code No. Cutting wheel for niro 1 8-2" Cutting wheel 1.1 4-4" 32 19 9 0.028 1524038 220221 41 19 9 0.038 4503830 220240 Cutting wheel for niro 1.1 4-4" 41 19 9 0.040 1516884 220241 Wheel bolt 1 8-2" 0.015 4552450 220620 Wheel and pressure roller bolt 1 .1 4-4" 0.019 4552530 220640 PIPE CUTTERS FOR STAINLESS STEEL PIPES HEAVY-DUTY PIPE CUTTER for stainless steel pipes Easy cutting due to ball-bearing pressure rollers and cutting wheels Body in pressure-cast aluminium Cutting wheel with high service life No. 218030 with quick-release RATCHET PIPE CUTTER NIRO for stainless steel pipes Low space requirements therefore highly suitable for working on vehicle exhaust gas systems Body in zinc-plated pressure-cast aluminium E asy handling via ratchet feed with automatic infeed of the cutting wheel with every rotation Cutting wheel made from high-alloy stainless steel with high service life One spare cutting wheel in addition 0 mm Wall thickness m 0 Code No. 4-32 07-30 140 0.310 1 949748 218010 0 mm Wall thickness m 0 Code No. 6-50 07-30 170 0.390 1 949764 218020 16-35 10-30 260 0.930 1600877 224011 16-60 07-30 225 1.100 1 949772 218030 25-66 10-30 360 1.710 1600885 224021 SPARE PARTS B SPARE PARTS Description 0 D b 0 d 0 Code No. Cutting wheel for 218010+020 22.0 7.9 5.0 0.005 1949780 218210 Cutting wheel for 218030 27.5 7.9 5.0 0.007 1949799 218230 Spare bolt for 218010+020 0.003 1 974025 218610 Spare bolt for 218030 0.005 1 974033 218630 Description 0 D b 0 d 0 Code No. Cutting wheel size 1 + 2 26 6.3 4.8 0.007 1 62 1 440 224211 Wheel bolt size 1 + 2 0.003 1621459 224611 220 222 224 563
