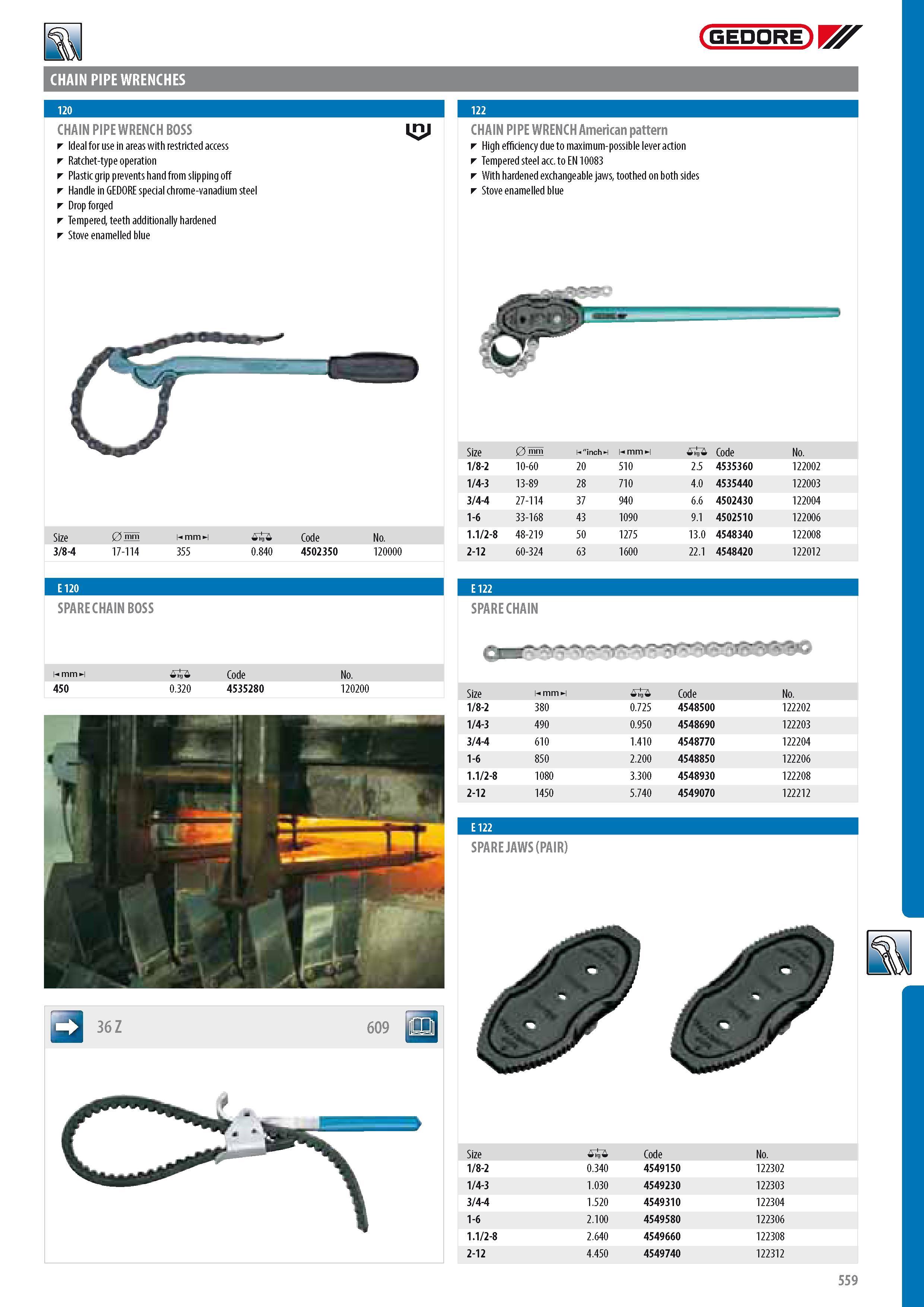

GEDORE CHAIN PIPE WRENCHES CHAIN PIPE WRENCH BOSS I deal for use in areas with restricted access Ratchet-type operation Plastic grip prevents hand from slipping off Handle in GEDORE special chrome-vanadium steel Drop forged Tempered teeth additionally hardened Stove enamelled blue G CHAIN PIPE WRENCH American pattern High efficiency due to maximum-possible lever action Tempered steel acc. to EN 10083 With hardened exchangeable jaws toothed on both sides Stove enamelled blue Size 3 8-4 m mm 17-114 Hmm 355 0 0.840 Code 4502350 No. 120000 Size m h"inchH m mm ml 0 Code No. 1 8-2 10-60 20 510 2.5 4535360 122002 1 4-3 13-89 28 710 4.0 4535440 122003 3 4-4 27-114 37 940 6.6 4502430 122004 1-6 33-168 43 1090 9.1 4502510 122006 1 .1 2-8 48-219 50 1275 13.0 4548340 122008 2-12 60-324 63 1600 22.1 4548420 122012 SPARE CHAIN BOSS SPARE CHAIN m 450 0 0.320 Code 4535280 No. 120200 J 9 0 6 Z 6 3 n Size m 0 Code No. 1 8-2 380 0.725 4548500 122202 1 4-3 490 0.950 4548690 122203 3 4-4 610 1.410 4548770 122204 1-6 850 2.200 4548850 122206 1 .1 2-8 1080 3.300 4548930 122208 2-12 1450 5.740 4549070 122212 SPARE JAWS (PAIR) Size 0 Code 1 8-2 0.340 4549150 1 4-3 1.030 4549230 3 4-4 1.520 4549310 1-6 2.100 4549580 1 .1 2-8 2.640 4549660 2-12 4.450 4549740 No. 122302 122303 122304 122306 122308 122312 E 120 E 122 E 122 559
