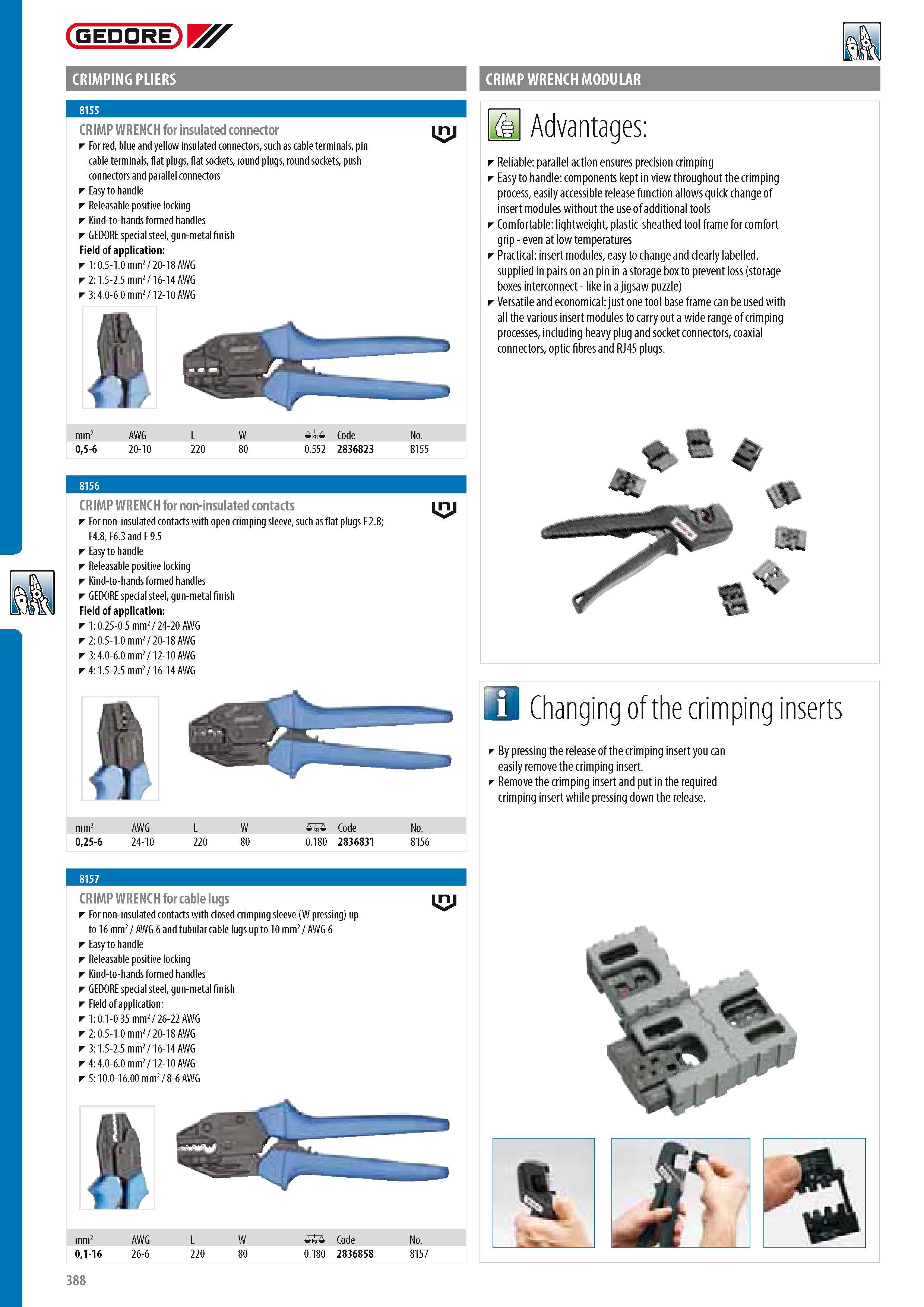

GEDORE CRIMPING PLIERS CRIMP WRENCH MODULAR CRIMP WRENCH for insulated connector For red blue and yellow insulated connectors such as cable terminals pin cable terminals flat plugs flat sockets round plugs round sockets push connectors and parallel connectors Easy to handle Releasable positive locking Kind-to-hands formed handles GEDORE special steel gun-metal finish Field of application Ti 05-1.0 mm2 20-18 AWG 2 1.5-2.5 mm2 16-14 AWG 3 4.0-6.0 mm2 12-10 AWG G mm2 AWG L W 0 Code No. 05-6 20-10 220 80 0.552 2836823 8155 8156 CRIMP WRENCH for non-insulated contacts For non-insulated contacts with open crimping sleeve such as flat plugs F 2.8 F4.8; F6.3 and F 9.5 Easy to handle Releasable positive locking Kind-to-hands formed handles GEDORE special steel gun-metal finish Field of application 1 0.25-0.5 mm2 24-20 AWG 2 0.5-1.0 mm2 20-18 AWG 3 4.0-6.0 mm2 12-10 AWG 4 1.5-2.5 mm2 16-14 AWG inj mm2 AWG L W 0 Code No. 025-6 24-10 220 80 0.180 2836831 8156 8157 CRIMP WRENCH for cable lugs For non-insulated contacts with closed crimping sleeve (W pressing) up to 16 mm2 AWG 6 and tubular cable lugs up to 10 mm2 AWG 6 Easy to handle Releasable positive locking Kind-to-hands formed handles GEDORE special steel gun-metal finish Field of application 1 0.1-0.35 mm2 26-22 AWG 2 0.5-1.0 mm2 20-18 AWG 3 1.5-2.5 mm2 16-14 AWG 4 4.0-6.0 mm2 12-10 AWG 5 10.0-16.00 mm2 8-6 AWG G mm2 01-16 AWG 26-6 L 220 W 80 0 Code 0.180 2836858 Advantages Reliable parallel action ensures precision crimping Easy to handle components kept in view throughout the crimping process easily accessible release function allows quick change of insert modules without the use of additional tools Comfortable lightweight plastic-sheathed tool frame for comfort grip - even at low temperatures Practical insert modules easy to change and clearly labelled supplied in pairs on an pin in a storage box to prevent loss (storage boxes interconnect - like in a jigsaw puzzle) Versatile and economical just one tool base frame can be used with all the various insert modules to carry out a wide range of crimping processes including heavy plug and socket connectors coaxial connectors optic fibres and RJ45 plugs. No. 8157 a Changing of the crimping inserts By pressing the release of the crimping insert you can easily remove the crimping insert. Remove the crimping insert and put in the required crimping insert while pressing down the release. 8155 388
