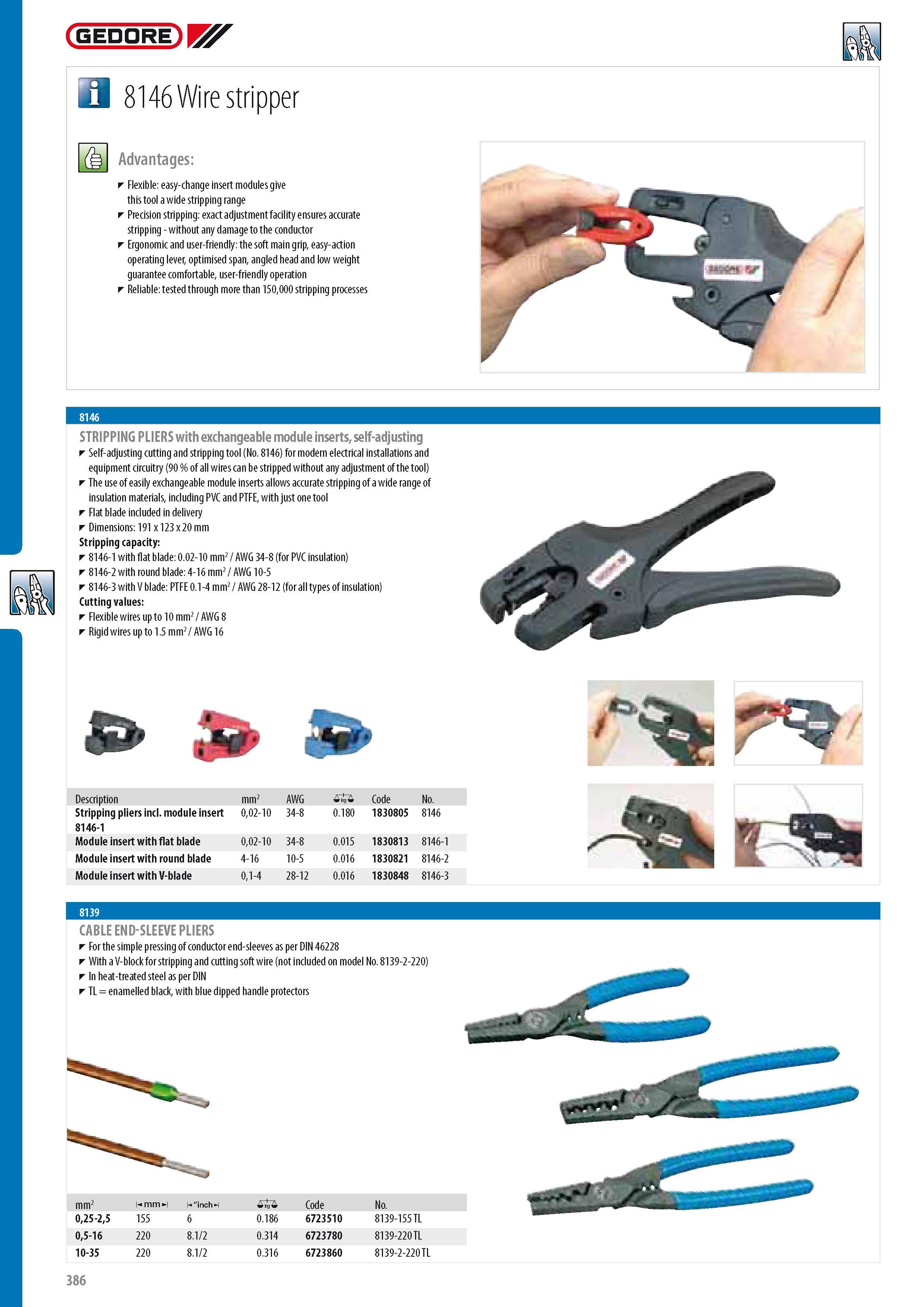

GEDORE 8146 Wire stripper Advantages Flexible easy-change insert modules give this tool a wide stripping range Precision stripping exact adjustment facility ensures accurate stripping - without any damage to the conductor Ergonomic and user-friendly the soft main grip easy-action operating lever optimised span angled head and low weight guarantee comfortable user-friendly operation Reliable tested through more than 150000 stripping processes STRIPPING PLIERS with exchangeable module inserts self-adjusting Self-adjusting cutting and stripping tool (No. 8146) for modern electrical installations and equipment circuitry (90 % of all wires can be stripped without any adjustment of the tool) The use of easily exchangeable module inserts allows accurate stripping of a wide range of insulation materials including PVC and PTFE with just one tool Flat blade included in delivery Dimensions 191 x 123 x 20 mm Stripping capacity 8146-1 with flat blade 0.02-10 mm2 AWG 34-8 (for PVC insulation) 8146-2 with round blade 4-16 mm2 AWG 10-5 8146-3 with V blade PTFE 0.1-4 mm2 AWG 28-12 (for all types of insulation) Cutting values Flexible wires up to 10 mm2 AWG 8 Rigid wires up to 1.5 mm2 AWG 16 Description mm2 AWG 0 Code No. Stripping pliers incl. module insert 8146-1 002-10 34-8 0.180 1830805 8146 Module insert with flat blade 002-10 34-8 0.015 1830813 8146-1 Module insert with round blade 4-16 10-5 0.016 1830821 8146-2 Module insert with V-blade 01-4 28-12 0.016 1830848 8146-3 CABLE END-SLEEVE PLIERS For the simple pressing of conductor end-sleeves as per DIN 46228 With a V-block for stripping and cutting soft wire (not included on model No. 8139-2-220) In heat-treated steel as per DIN TL enamelled black with blue dipped handle protectors mm2 m mm mi "inchH - 0 Code No. 025-25 155 6 0.186 6723510 8139-155 TL 05-16 220 8.1 2 0.314 6723780 8139-220 TL 10-35 220 8.1 2 0.316 6723860 8139-2-220 TL 386 8146 8139
