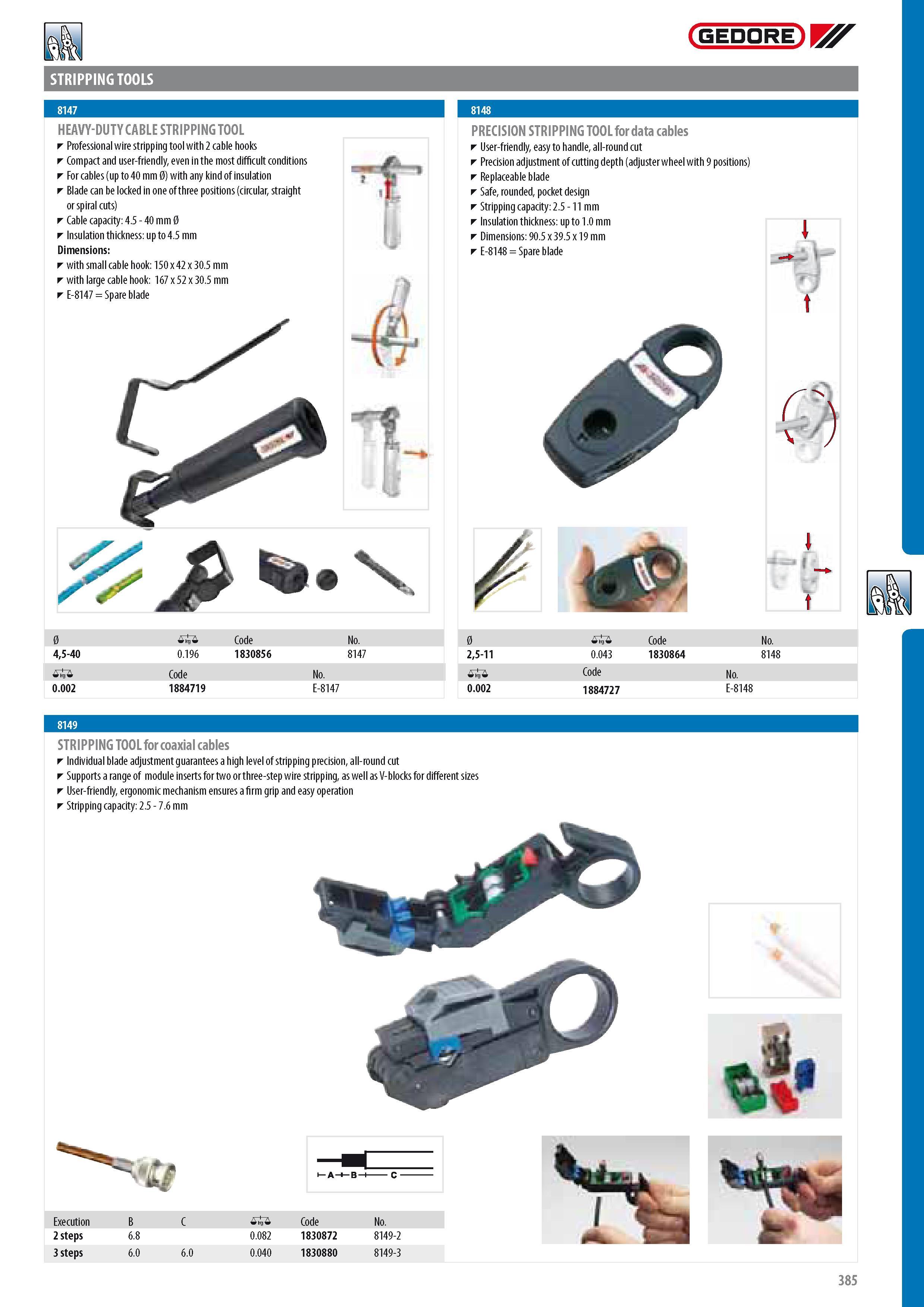

STRIPPING TOOLS GEDORE HEAVY-DUTY CABLE STRIPPING TOOL Professional wire stripping tool with 2 cable hooks Compact and user-friendly even in the most difficult conditions For cables (up to 40 mm 0) with any kind of insulation Blade can be locked in one of three positions (circular straight or spiral cuts) Cable capacity 4.5 - 40 mm 0 Insulation thickness up to 4.5 mm Dimensions with small cable hook 150 x 42 x 30.5 mm with large cable hook 167 x 52 x 30.5 mm E-8147 Spare blade PRECISION STRIPPING TOOL for data cables User-friendly easy to handle all-round cut Precision adjustment of cutting depth (adjuster wheel with 9 positions) Replaceable blade Safe rounded pocket design Stripping capacity 2.5 - 11 mm Insulation thickness up to 1.0 mm Dimensions 90.5 x 39.5 x 19 mm E-8148 Spare blade Bra 0 0 Code No. 0 0 Code No. 45-40 0.196 1830856 8147 25-11 0.043 1830864 8148 0 Code No. 0 Code No. 0.002 1884719 E-8147 0.002 1884727 E-8148 8149 STRIPPING TOOL for coaxial cables Individual blade adjustment guarantees a high level of stripping precision all-round cut Supports a range of module inserts for two or three-step wire stripping as well as V-blocks for different sizes User-friendly ergonomic mechanism ensures a firm grip and easy operation Stripping capacity 2.5 - 7.6 mm Execution B C 0 Code No. 2 steps 6.8 0.082 1830872 8149-2 3 steps 6.0 6.0 0.040 1830880 8149-3 %v 385 8147 8148
