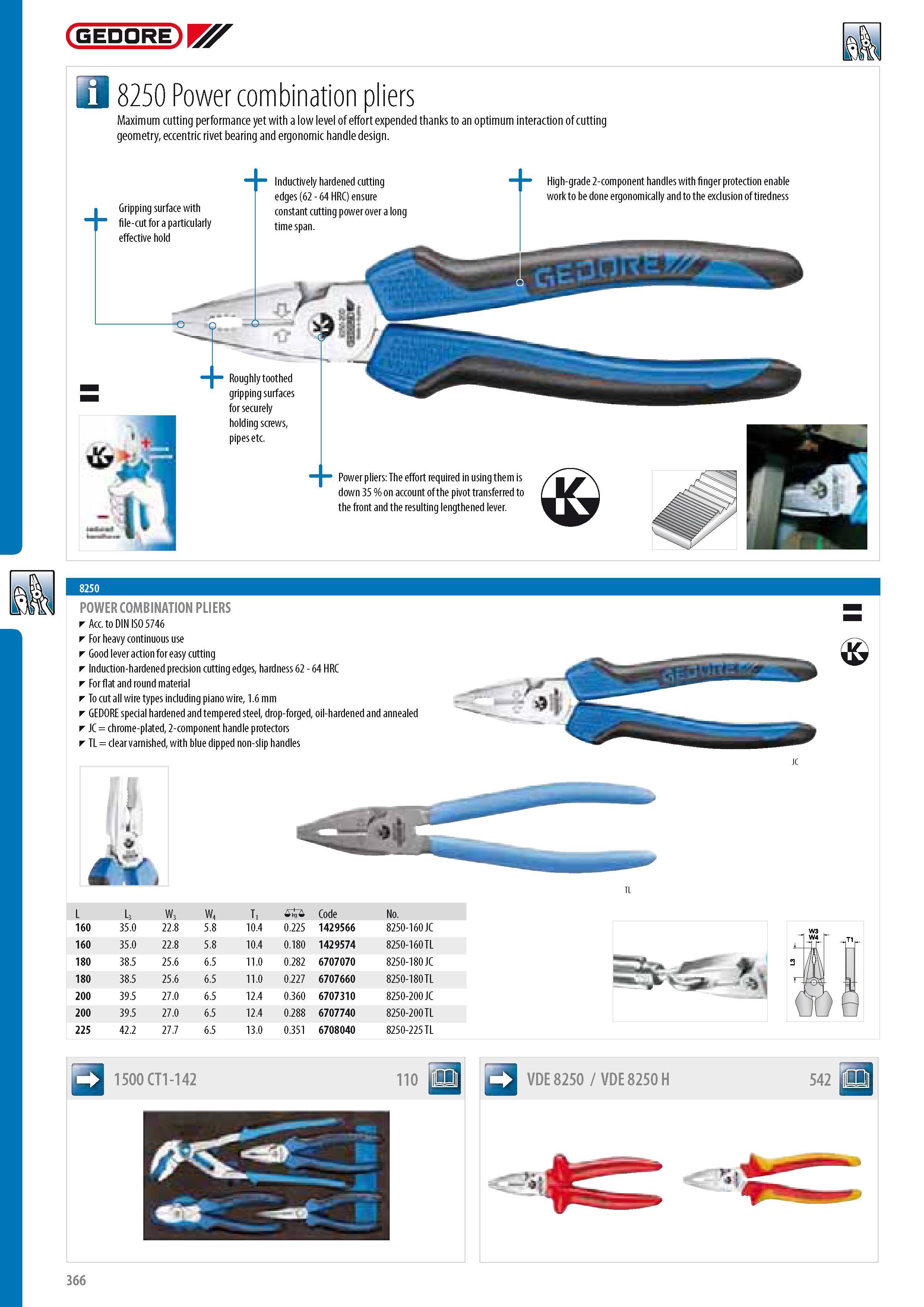

GEDORE a 8250 Power combination pliers Maximum cutting performance yet with a low level of effort expended thanks to an optimum interaction of cutting geometry eccentric rivet bearing and ergonomic handle design. Gripping surface with file-cut for a particularly effective hold Inductively hardened cutting edges (62 - 64 HRC) ensure constant cutting power over a long time span. High-grade 2-component handles with finger protection enable work to be done ergonomically and to the exclusion of tiredness Roughlytoothed gripping surfaces for securely holding screws pipes etc. Power pliers The effort required in using them is down 35 % on account of the pivot transferred to the front and the resulting lengthened lever. POWER COMBINATION PLIERS Acc. to DIN ISO 5746 For heavy continuous use Good lever action for easy cutting Induction-hardened precision cutting edges hardness 62 - 64 HRC For flat and round material To cut all wire types including piano wire 1.6 mm GEDORE special hardened and tempered steel drop-forged oil-hardened and annealed JC chrome-plated 2-component handle protectors TL clear varnished with blue dipped non-slip handles L L3 W3 W4 T1 0 Code No. 160 35.0 22.8 5.8 10.4 0.225 1429566 8250-160 JC 160 35.0 22.8 5.8 10.4 0.180 1429574 8250-160 TL 180 38.5 25.6 6.5 11.0 0.282 6707070 8250-180 JC 180 38.5 25.6 6.5 11.0 0.227 6707660 8250-180 TL 200 39.5 27.0 6.5 12.4 0.360 6707310 8250-200 JC 200 39.5 27.0 6.5 12.4 0.288 6707740 8250-200 TL 225 42.2 27.7 6.5 13.0 0.351 6708040 8250-225 TL 8250 JC TL 366
