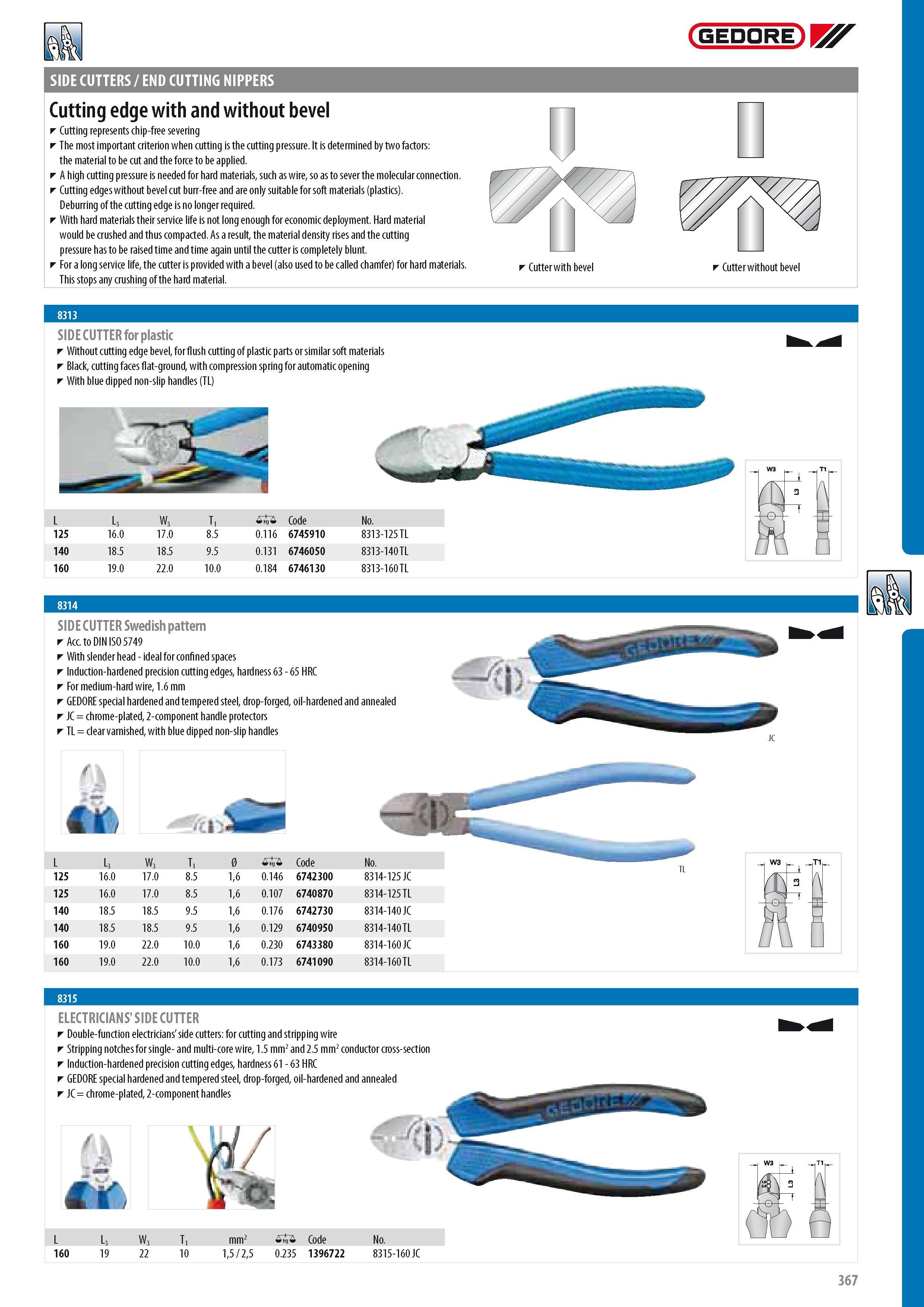

GEDORE SIDE CUTTERS END CUTTING NIPPERS Cutting edge with and without bevel Cutting represents chip-free severing The most important criterion when cutting is the cutting pressure. It is determined by two factors the material to be cut and the force to be applied. A high cutting pressure is needed for hard materials such as wire so as to sever the molecular connection. Cutting edges without bevel cut burr-free and are only suitable for soft materials (plastics). Deburring of the cutting edge is no longer required. With hard materials their service life is not long enough for economic deployment. Hard material would be crushed and thus compacted. As a result the material density rises and the cutting pressure has to be raised time and time again until the cutter is completely blunt. For a long service life the cutter is provided with a bevel (also used to be called chamfer) for hard materials. This stops any crushing of the hard material. Cutter with bevel SIDE CUTTER for plastic Without cutting edge bevel for flush cutting of plastic parts or similar soft materials Black cutting faces flat-ground with compression spring for automatic opening With blue dipped non-slip handles (TL) L L3 W3 T1 0 Code No. 125 16.0 17.0 8.5 0.116 6745910 8313-125TL 140 18.5 18.5 9.5 0.131 6746050 8313-140TL 160 19.0 22.0 10.0 0.184 6746130 8313-160TL SIDE CUTTER Swedish pattern Acc. to DIN ISO 5749 With slender head - ideal for confined spaces Induction-hardened precision cutting edges hardness 63 - 65 HRC For medium-hard wire 1.6 mm GEDORE special hardened and tempered steel drop-forged oil-hardened and annealed JC chrome-plated 2-component handle protectors TL clear varnished with blue dipped non-slip handles L L3 W3 T1 0 0 Code No. 125 16.0 17.0 8.5 16 0.146 6742300 8314-125JC 125 16.0 17.0 8.5 16 0.107 6740870 8314-125TL 140 18.5 18.5 9.5 16 0.176 6742730 8314-140JC 140 18.5 18.5 9.5 16 0.129 6740950 8314-140TL 160 19.0 22.0 10.0 16 0.230 6743380 8314-160 JC 160 19.0 22.0 10.0 16 0.173 6741090 8314-160 TL 8315 ELECTRICIANS' SIDE CUTTER Double-function electricians' side cutters for cutting and stripping wire Stripping notches for single- and multi-core wire 1.5 mm2 and 2.5 mm2 conductor cross-section Induction-hardened precision cutting edges hardness 61 - 63 HRC GEDORE special hardened and tempered steel drop-forged oil-hardened and annealed JC chrome-plated 2-component handles W3 L 160 L3 19 W3 22 T1 10 mm2 0 15 25 0.235 Code 1396722 No. 8315-160 JC a 8313 8314 IC TL 367
