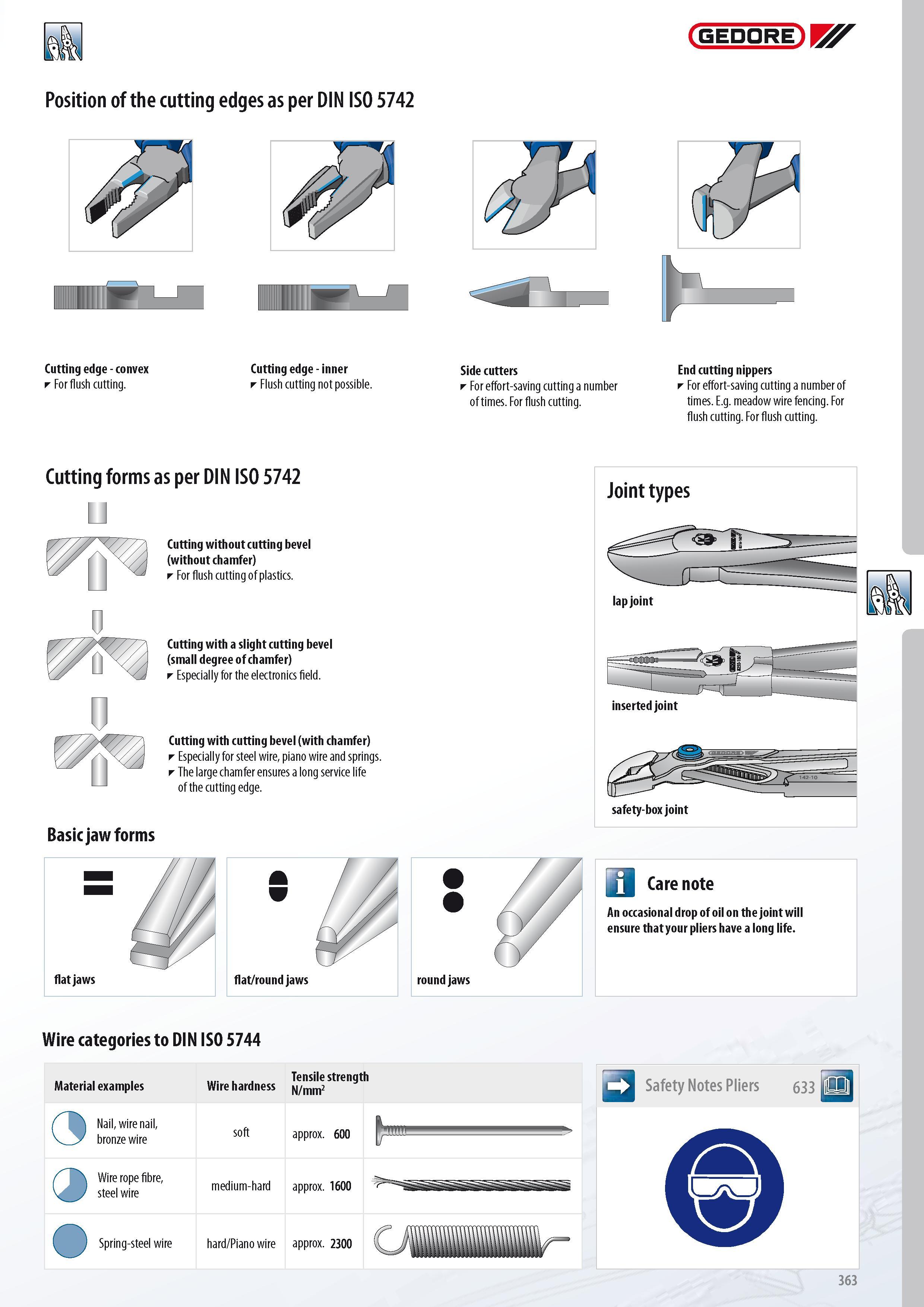

GEDORE Position of the cutting edges as per DIN ISO 5742 m w I- Cutting edge - convex For flush cutting. Cutting edge - inner Flush cutting not possible. Side cutters For effort-saving cutting a number of times. For flush cutting. End cutting nippers For effort-saving cutting a number of times. E.g. meadow wire fencing. For flush cutting. For flush cutting. Cutting forms as per DIN ISO 5742 u Cutting without cutting bevel yy (without chamfer) TFor flush cutting of plastics. Cutting with a slight cutting bevel (small degree of chamfer) Especially for the electronics field. U n u Cutting with cutting bevel (with chamfer) Especially for steel wire piano wire and springs. The large chamfer ensures a long service life of the cutting edge. Basic jaw forms flat jaws Joint types inserted joint safety-box joint Wire categories to DIN ISO 5744 Material examples 3 . Tensile strength Wire hardness N mm2 Nail wire nail bronze wire soft d Wire rope fibre steel wire approx. 600 approx. 1600 approx. 2300 f JIB I Safety Notes Pliers 633 363
