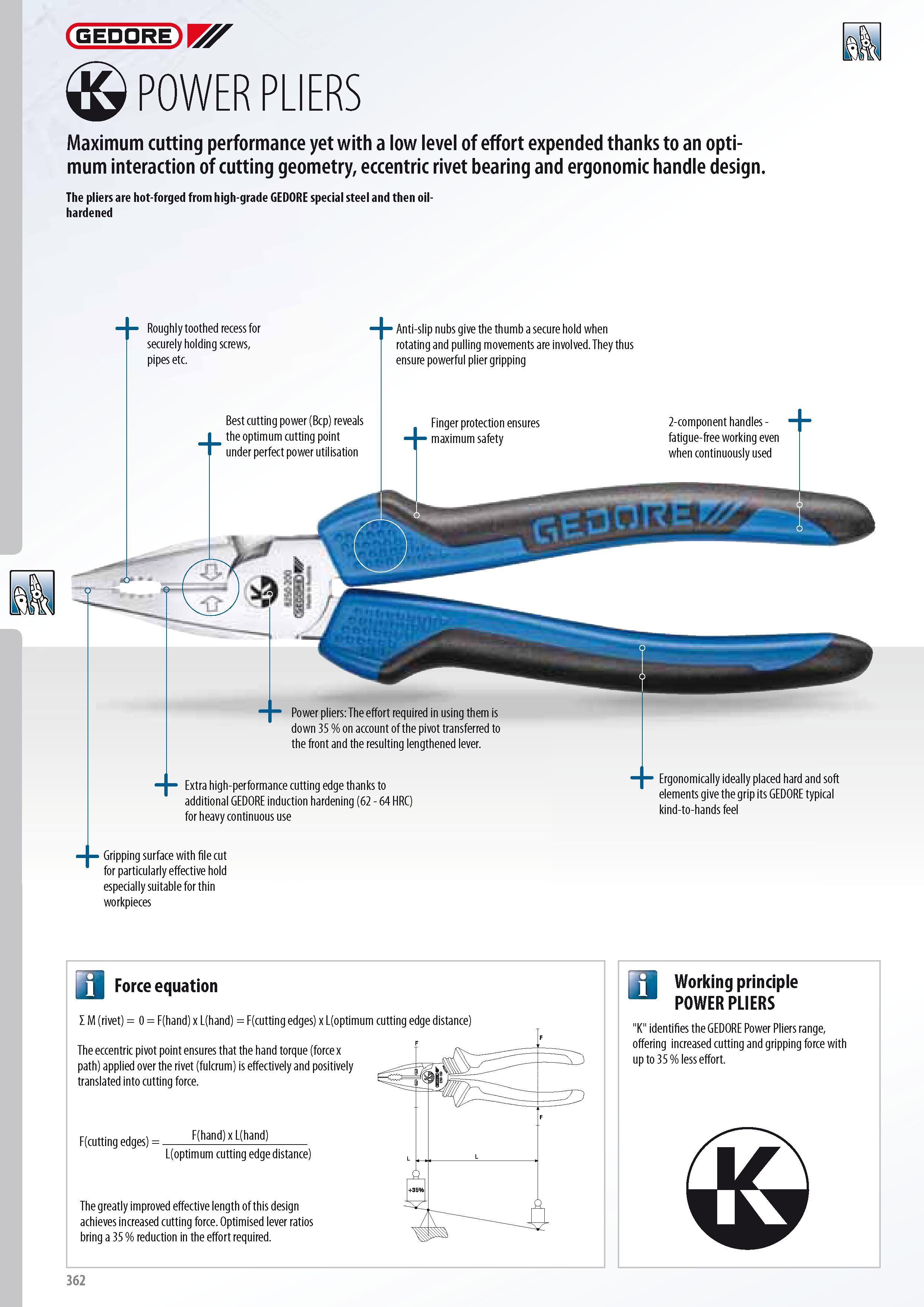

GEDORE POWER PLIERS Maximum cutting performance yet with a low level of effort expended thanks to an optimum interaction of cutting geometry eccentric rivet bearing and ergonomic handle design. The pliers are hot-forged from high-grade GEDORE special steel and then oil-hardened Roughly toothed recess for securely holding screws pipes etc. Anti-slip nubs give the thumb a secure hold when rotating and pulling movements are involved. They thus ensure powerful plier gripping Best cutting power (Bcp) reveals the optimum cutting point under perfect power utilisation Finger protection ensures maximum safety 2-component handles -fatigue-free working even when continuously used Power pliers The effort required in using them is down 35 % on account of the pivot transferred to the front and the resulting lengthened lever. Extra high-performance cutting edge thanks to additional GEDORE induction hardening (62 - 64 HRC) for heavy continuous use Ergonomically ideally placed hard and soft elements give the grip its GEDORE typical kind-to-hands feel Gripping surface with file cut for particularly effective hold especially suitable for thin workpieces Force equation I M (rivet) 0 F(hand) x L(hand) F(cutting edges) x L(optimum cutting edge distance) The eccentric pivot point ensures that the hand torque (force x path) applied over the rivet (fulcrum) is effectively and positively translated into cutting force. F(cutting edges) F(hand) x L(hand) L(optimum cutting edge distance) The greatly improved effective length of this design achieves increased cutting force. Optimised lever ratios bring a 35 % reduction in the effort required. Working principle POWER PLIERS "K" identifies the GEDORE Power Pliers range offering increased cutting and gripping force with up to 35 % less effort. 362
