25 Каталог GEDORE 2014 Профессиональный слесарный инструмент и оборудование Стр.23

Каталог GEDORE 2014 Слесарный инструмент Стр. 23 0025 ENG Lab2u

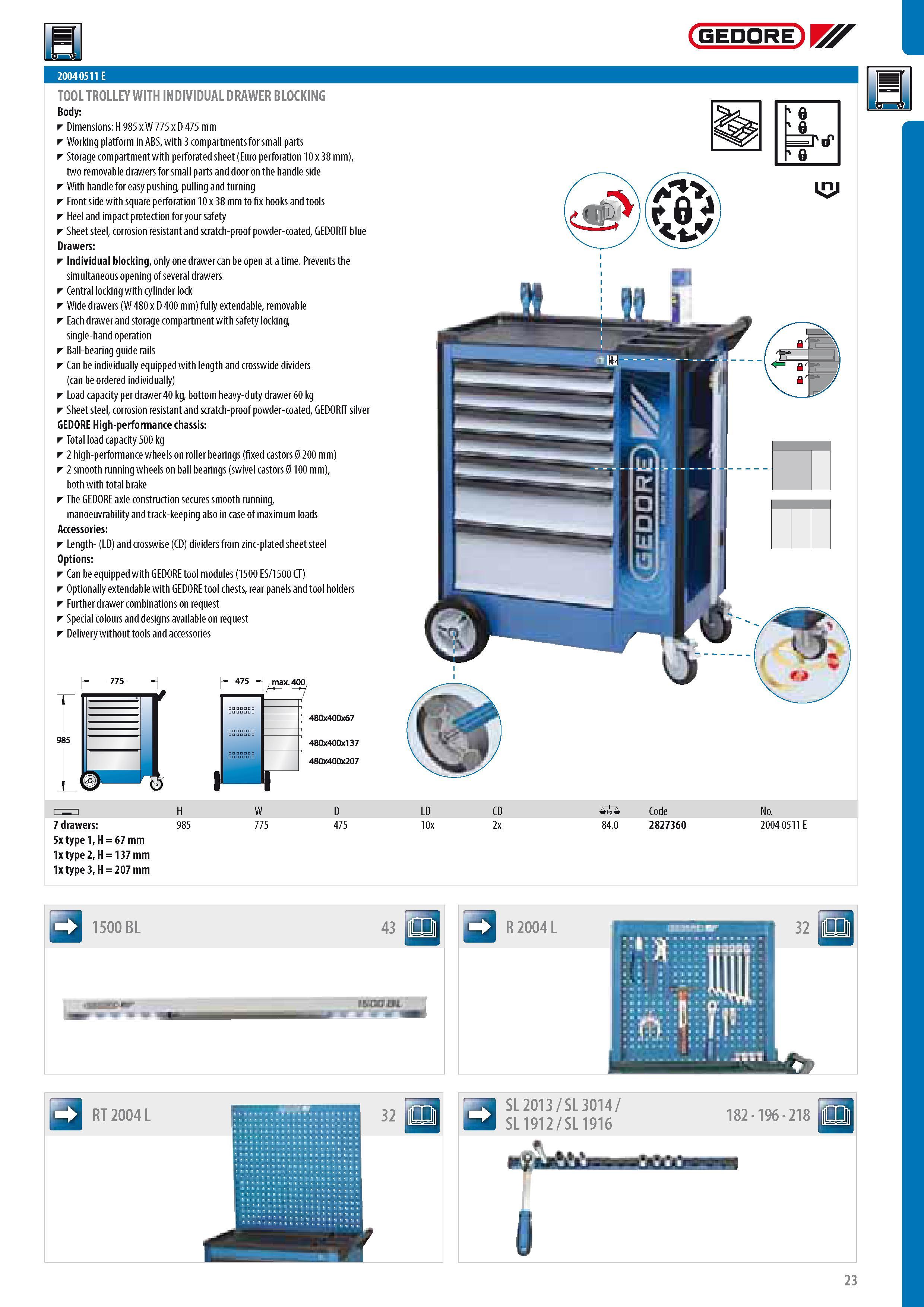

GEDORE 2004 0511 E TOOL TROLLEY WITH INDIVIDUAL DRAWER BLOCKING Body Dimensions H 985 x W 775 x D 475 mm Working platform in ABS with 3 compartments for small parts Storage compartment with perforated sheet (Euro perforation 10 x 38 mm) two removable drawers for small parts and door on the handle side With handle for easy pushing pulling and turning Front side with square perforation 10 x 38 mm to fix hooks and tools Heel and impact protection for your safety Sheet steel corrosion resistant and scratch-proof powder-coated GEDORIT blue Drawers Individual blocking only one drawer can be open at a time. Prevents the simultaneous opening of several drawers. Central locking with cylinder lock Wide drawers (W 480 x D 400 mm) fully extendable removable Each drawer and storage compartment with safety locking single-hand operation Ball-bearing guide rails Can be individually equipped with length and crosswide dividers (can be ordered individually) Load capacity per drawer 40 kg bottom heavy-duty drawer 60 kg Sheet steel corrosion resistant and scratch-proof powder-coated GEDORIT silver GEDORE High-performance chassis Total load capacity 500 kg 2 high-performance wheels on roller bearings (fixed castors 0 200 mm) 2 smooth running wheels on ball bearings (swivel castors 0 100 mm) both with total brake The GEDORE axle construction secures smooth running manoeuvrability and track-keeping also in case of maximum loads Accessories Length- (LD) and crosswise (CD) dividers from zinc-plated sheet steel Options Can be equipped with GEDORE tool modules (1500 ES 1500 CT) Optionally extendable with GEDORE tool chests rear panels and tool holders Further drawer combinations on request Special colours and designs available on request Delivery without tools and accessories 475 max. 400 F H W D LD CD 0 Code No. 7 drawers 985 775 475 10x 2x 84.0 2827360 2004 0511 E 5x type 1 H 67 mm 1x type 2 H 137 mm 1x type 3 H 207 mm SL 2013 SL 3014 SL 1912 SL 1916 182 196 218 23
