22 Каталог GEDORE 2014 Профессиональный слесарный инструмент и оборудование Стр.20

Каталог GEDORE 2014 Слесарный инструмент Стр. 20 0022 ENG Lab2u

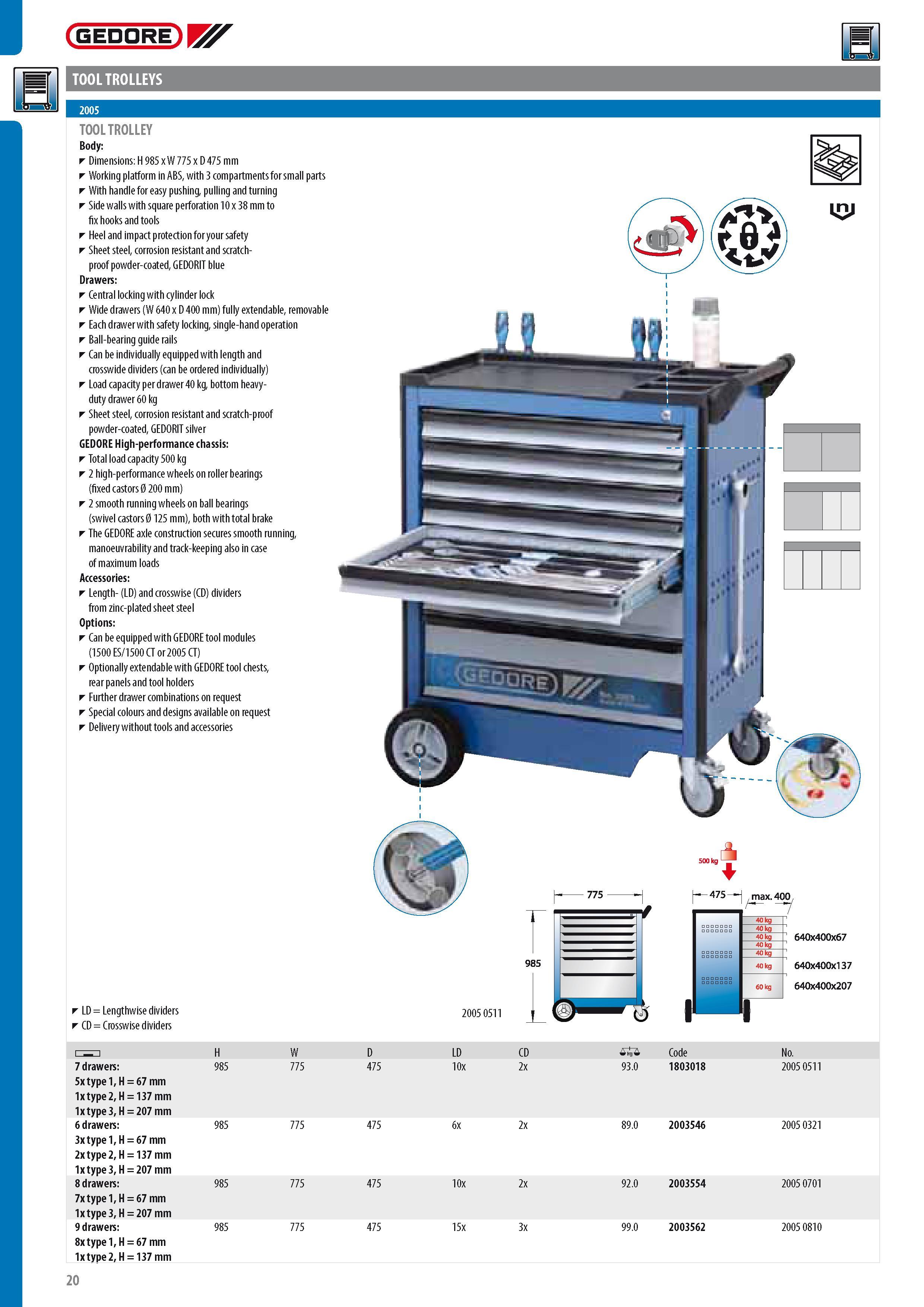

GEDORE U4 TOOL TROLLEYS TOOL TROLLEY Body Dimensions H 985 x W 775 x D 475 mm Working platform in ABS with 3 compartments for small parts With handle for easy pushing pulling and turning Side walls with square perforation 10 x 38 mm to fix hooks and tools Heel and impact protection for your safety Sheet steel corrosion resistant and scratch-proof powder-coated GEDORIT blue Drawers Central locking with cylinder lock Wide drawers (W 640 x D 400 mm) fully extendable removable Each drawer with safety locking single-hand operation Ball-bearing guide rails Can be individually equipped with length and crosswide dividers (can be ordered individually) Load capacity per drawer 40 kg bottom heavy-duty drawer 60 kg Sheet steel corrosion resistant and scratch-proof powder-coated GEDORIT silver GEDORE High-performance chassis Total load capacity 500 kg 2 high-performance wheels on roller bearings (fixed castors 0 200 mm) 2 smooth running wheels on ball bearings (swivel castors 0 125 mm) both with total brake The GEDORE axle construction secures smooth running manoeuvrability and track-keeping also in case of maximum loads Accessories Length- (LD) and crosswise (CD) dividers from zinc-plated sheet steel Options Can be equipped with GEDORE tool modules (1500 ES 1500 CT or 2005 CT) Optionally extendable with GEDORE tool chests rear panels and tool holders Further drawer combinations on request Special colours and designs available on request Delivery without tools and accessories LD Lengthwise dividers CD Crosswise dividers 40 kg 4Qkg I 640x400x67 40 kg 640x400x137 60 kg 640x400x207 2005 0511 i H W D LD CD 0 Code No. 7 drawers 985 5x type 1 H 67 mm 1x type 2 H 137 mm 1x type 3 H 207 mm 775 475 10x 2x 93.0 1803018 2005 0511 6 drawers 985 3x type 1 H 67 mm 2x type 2 H 137 mm 1x type 3 H 207 mm 775 475 6x 2x 89.0 2003546 2005 0321 8 drawers 985 7x type 1 H 67 mm 1x type 3 H 207 mm 775 475 10x 2x 92.0 2003554 2005 0701 9 drawers 985 8x type 1 H 67 mm 1x type 2 H 137 mm 775 475 15x 3x 99.0 2003562 20050810 2005 20
