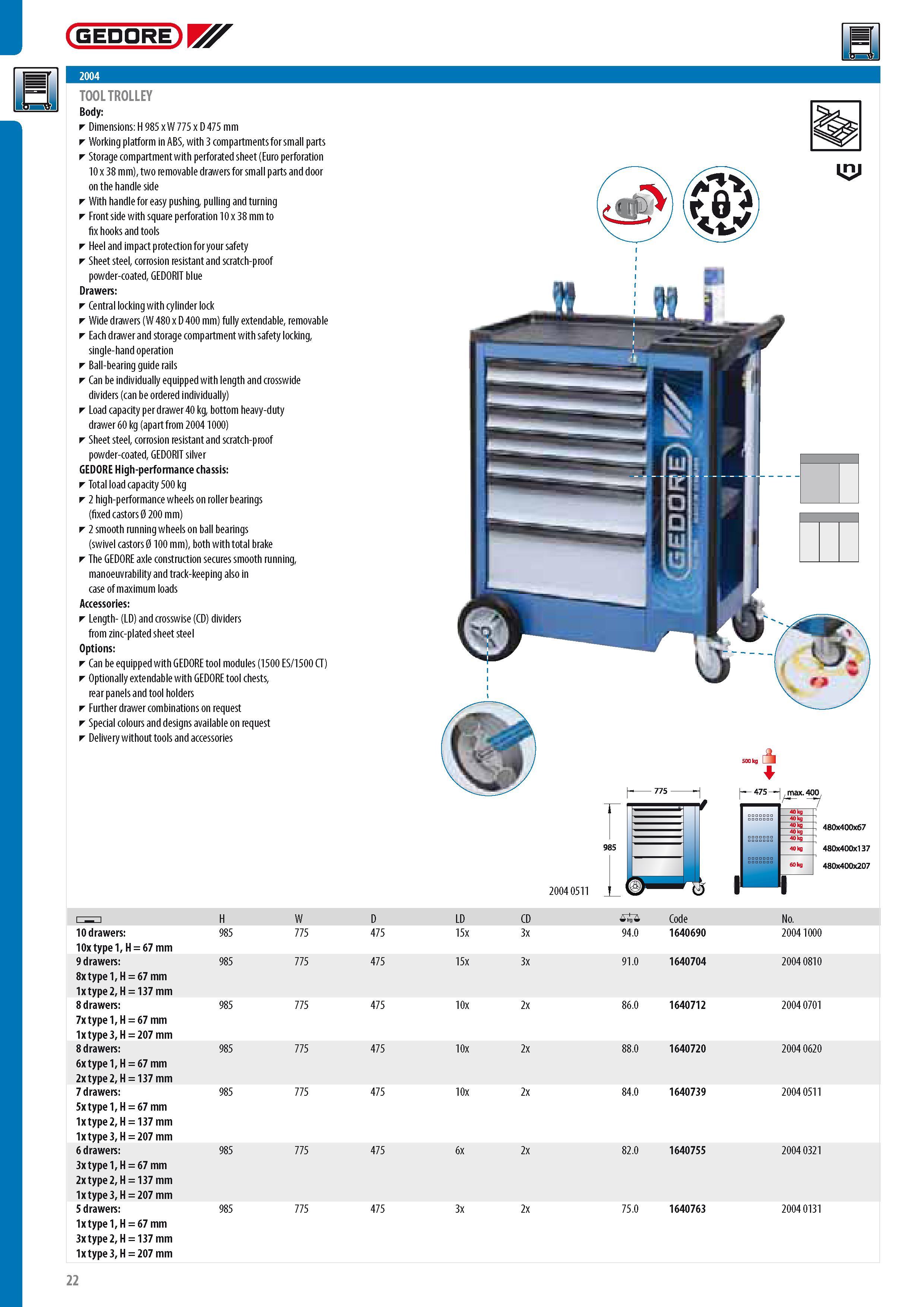

GEDORE U4 TOOL TROLLEY Body Dimensions H 985 x W 775 x D 475 mm Working platform in ABS with 3 compartments for small parts Storage compartment with perforated sheet (Euro perforation 10 x 38 mm) two removable drawers for small parts and door on the handle side With handle for easy pushing pulling and turning Front side with square perforation 10 x 38 mm to fix hooks and tools Heel and impact protection for your safety Sheet steel corrosion resistant and scratch-proof powder-coated GEDORIT blue Drawers Central locking with cylinder lock Wide drawers (W 480 x D 400 mm) fully extendable removable Each drawer and storage compartment with safety locking single-hand operation Ball-bearing guide rails Can be individually equipped with length and crosswide dividers (can be ordered individually) Load capacity per drawer 40 kg bottom heavy-duty drawer 60 kg (apart from 2004 1000) Sheet steel corrosion resistant and scratch-proof powder-coated GEDORIT silver GEDORE High-performance chassis Total load capacity 500 kg 2 high-performance wheels on roller bearings (fixed castors 0 200 mm) 2 smooth running wheels on ball bearings (swivel castors 0 100 mm) both with total brake The GEDORE axle construction secures smooth running manoeuvrability and track-keeping also in case of maximum loads Accessories Length- (LD) and crosswise (CD) dividers from zinc-plated sheet steel Options Can be equipped with GEDORE tool modules (1500 ES 1500 CT) Optionally extendable with GEDORE tool chests rear panels and tool holders Further drawer combinations on request Special colours and designs available on request Delivery without tools and accessories 480x400x137 480x400x207 2004 0511 H W D LD CD 0 Code No. 10 drawers 10x type 1 H 67 mm 985 775 475 15x 3x 94.0 1640690 20041000 9 drawers 8x type 1 H 67 mm 1x type 2 H 137 mm 985 775 475 15x 3x 91.0 1640704 20040810 8 drawers 7x type 1 H 67 mm 1x type 3 H 207 mm 985 775 475 10x 2x 86.0 1640712 2004 0701 8 drawers 6x type 1 H 67 mm 2x type 2 H 137 mm 985 775 475 10x 2x 88.0 1640720 2004 0620 7 drawers 5x type 1 H 67 mm 1x type 2 H 137 mm 1x type 3 H 207 mm 985 775 475 10x 2x 84.0 1640739 20040511 6 drawers 3x type 1 H 67 mm 2x type 2 H 137 mm 1x type 3 H 207 mm 985 775 475 6x 2x 82.0 1640755 2004 0321 5 drawers 1x type 1 H 67 mm 3x type 2 H 137 mm 1x type 3 H 207 mm 985 775 475 3x 2x 75.0 1640763 2004 0131 2004 22
