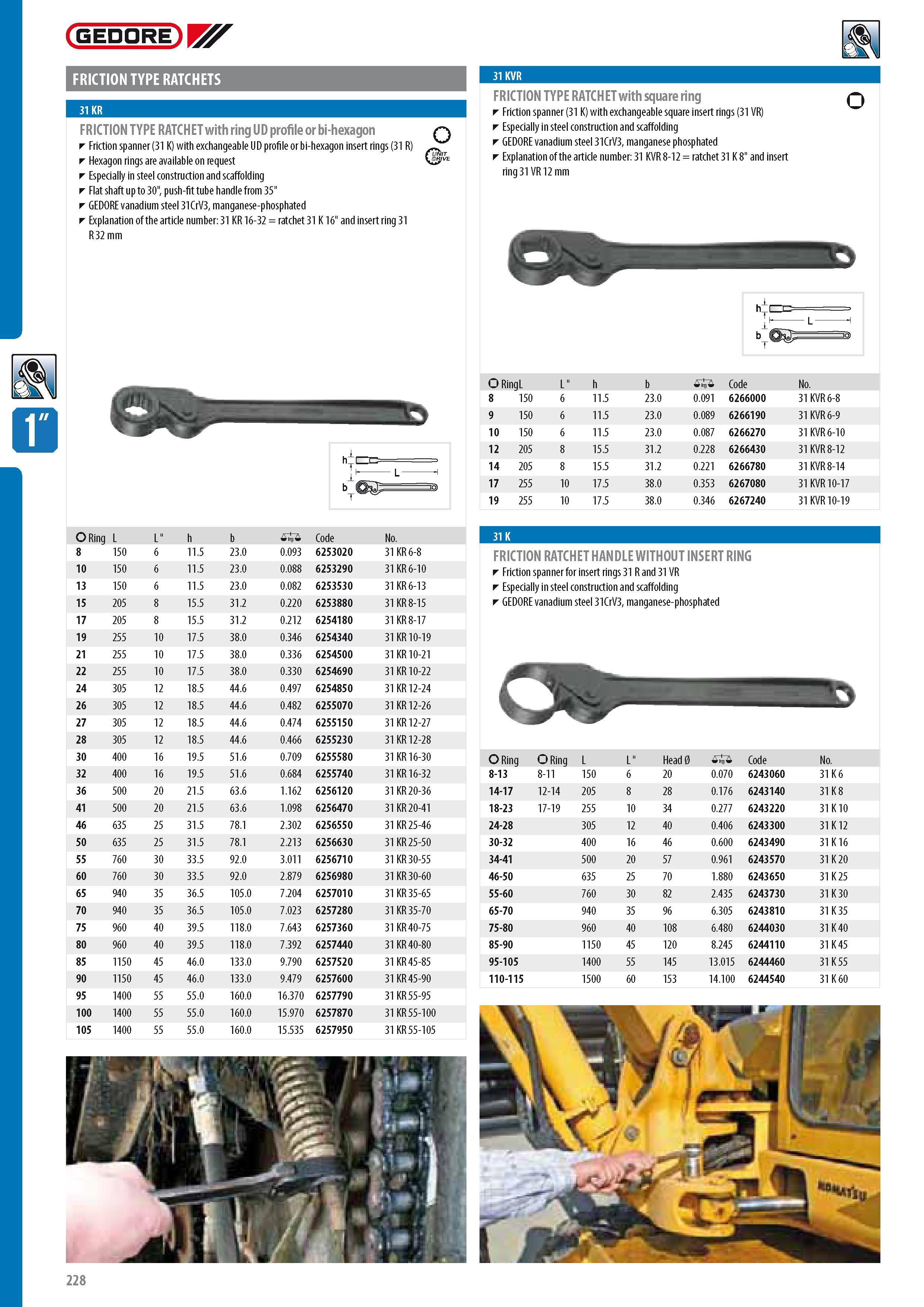

GEDORE FRICTION TYPE RATCHETS FRICTION TYPE RATCHET with ring UD profile or bi-hexagon Friction spanner (31 K) with exchangeable UD profile or bi-hexagon insert rings (31 R) Hexagon rings are available on request Especially in steel construction and scaffolding Flat shaft up to 30" push-fit tube handle from 35" GEDORE vanadium steel 31CrV3 manganese-phosphated Explanation of the article number 31 KR 16-32 ratchet 31 K 16" and insert ring 31 R 32 mm o fmiiT 3' a FRICTION TYPE RATCHET with square ring Friction spanner (31 K) with exchangeable square insert rings (31 VR) Especially in steel construction and scaffolding GEDORE vanadium steel 31CrV3 manganese phosphated Explanation of the article number 31 KVR 8-12 ratchet 31 K 8" and insert ring 31 VR 12 mm o O RingL L " h b 0 Code No. 0 5 CO 6 11.5 23.0 0.091 6266000 31 KVR 6-8 9 150 6 11.5 23.0 0.089 6266190 31 KVR 6-9 10 150 6 11.5 23.0 0.087 6266270 31 KVR 6-10 12 205 8 15.5 31.2 0.228 6266430 31 KVR 8-12 14 205 8 15.5 31.2 0.221 6266780 31 KVR 8-14 17 255 10 17.5 38.0 0.353 6267080 31 KVR 10-17 19 255 10 17.5 38.0 0.346 6267240 31 KVR 10-19 O Ring L L " h b 0 Code No. 8 150 6 11.5 23.0 0.093 6253020 31 KR6-8 10 150 6 11.5 23.0 0.088 6253290 31 KR 6-10 13 150 6 11.5 23.0 0.082 6253530 31 KR 6-13 15 205 8 15.5 31.2 0.220 6253880 31 KR 8-15 17 205 8 15.5 31.2 0.212 6254180 31 KR 8-17 19 255 10 17.5 38.0 0.346 6254340 31 KR10-19 21 255 10 17.5 38.0 0.336 6254500 31 KR10-21 22 255 10 17.5 38.0 0.330 6254690 31 KR 10-22 24 305 12 18.5 44.6 0.497 6254850 31 KR12-24 26 305 12 18.5 44.6 0.482 6255070 31 KR 12-26 27 305 12 18.5 44.6 0.474 6255150 31 KR12-27 28 305 12 18.5 44.6 0.466 6255230 31 KR 12-28 30 400 16 19.5 51.6 0.709 6255580 31 KR16-30 32 400 16 19.5 51.6 0.684 6255740 31 KR16-32 36 500 20 21.5 63.6 1.162 6256120 31 KR20-36 41 500 20 21.5 63.6 1.098 6256470 31 KR 20-41 46 635 25 31.5 78.1 2.302 6256550 31 KR25-46 50 635 25 31.5 78.1 2.213 6256630 31 KR25-50 55 760 30 33.5 92.0 3.011 6256710 31 KR 30-55 60 760 30 33.5 92.0 2.879 6256980 31 KR30-60 65 940 35 36.5 105.0 7.204 6257010 31 KR35-65 70 940 35 36.5 105.0 7.023 6257280 31 KR35-70 75 960 40 39.5 118.0 7.643 6257360 31 KR 40-75 80 960 40 39.5 118.0 7.392 6257440 31 KR 40-80 85 1150 45 46.0 133.0 9.790 6257520 31 KR 45-85 90 1150 45 46.0 133.0 9.479 6257600 31 KR45-90 95 1400 55 55.0 160.0 16.370 6257790 31 KR55-95 100 1400 55 55.0 160.0 15.970 6257870 31 KR55-100 105 1400 55 55.0 160.0 15.535 6257950 31 KR55-105 FRICTION RATCHET HANDLE WITHOUT INSERT RING Friction spanner for insert rings 31 R and 31 VR Especially in steel construction and scaffolding GEDORE vanadium steel 31CrV3 manganese-phosphated O Ring O Ring L L " Head 0 0 Code No. 8-13 8-11 150 6 20 0.070 6243060 31 K 6 14-17 12-14 205 8 28 0.176 6243140 31 K 8 18-23 17-19 255 10 34 0.277 6243220 31 K 10 24-28 305 12 40 0.406 6243300 31 K 12 30-32 400 16 46 0.600 6243490 31 K 16 34-41 500 20 57 0.961 6243570 31 K 20 46-50 635 25 70 1.880 6243650 31 K 25 55-60 760 30 82 2.435 6243730 31 K 30 65-70 940 35 96 6.305 6243810 31 K 35 75-80 960 40 108 6.480 6244030 31 K 40 85-90 1150 45 120 8.245 6244110 31 K 45 95-105 1400 55 145 13.015 6244460 31 K 55 110-115 1500 60 153 14.100 6244540 31 K 60 228 31 KVR 31 KR 31 K
