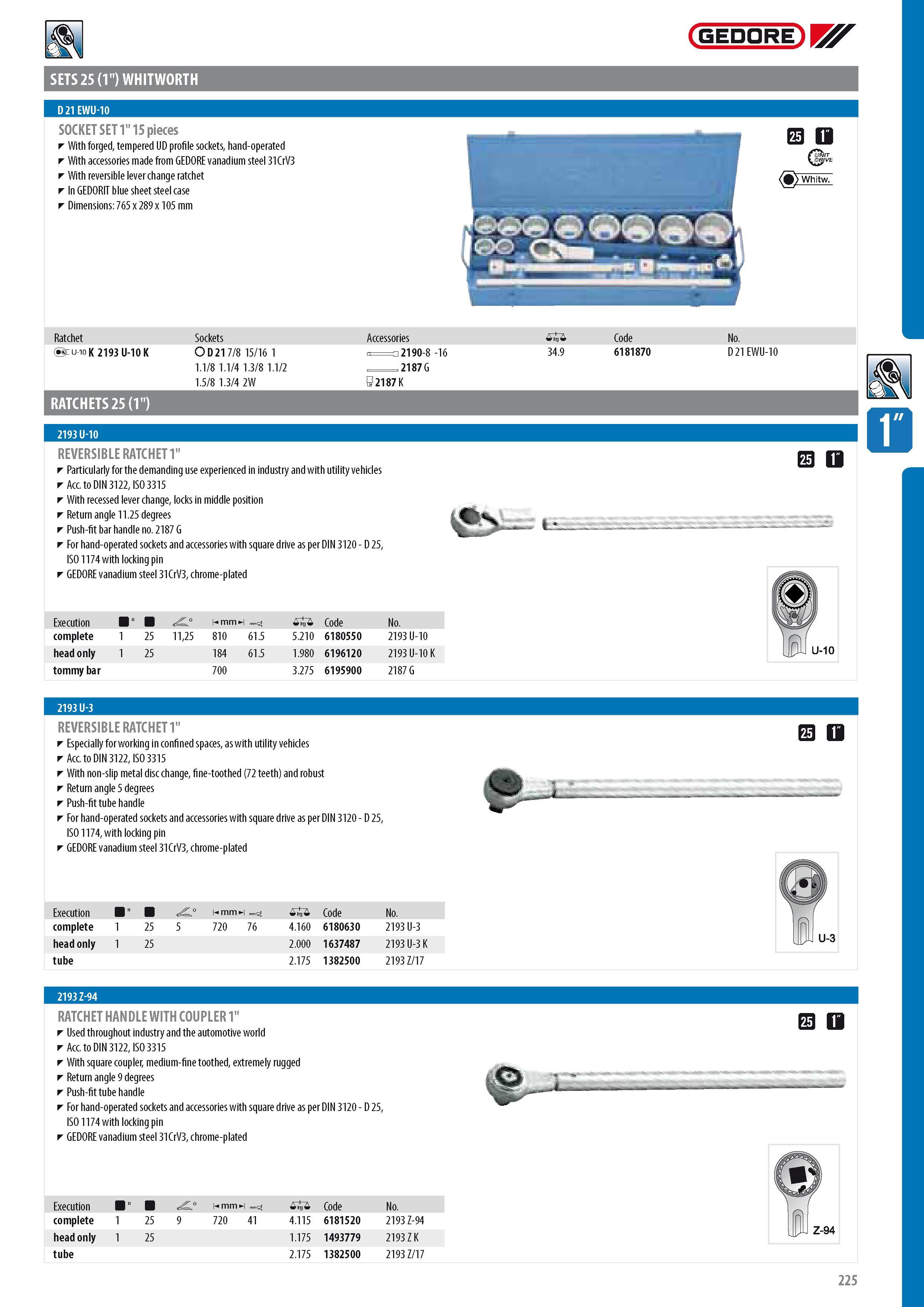

GEDORE SETS 25 (1") WHITWORTH D 21 EWU-10 SOCKET SET 1" 15 pieces With forged tempered UD profile sockets hand-operated With accessories made from GEDORE vanadium steel 31CrV3 With reversible lever change ratchet In GEDORIT blue sheet steel case Dimensions 765 x 289 x 105 mm r a fmiiT 3' Whitw. Ratchet u-io K 2193 U-10 K RATCHETS 25 (1") Sockets O D21 7 8 15 16 1 1.1 8 1.1 4 1.3 8 1.1 2 1.5 8 1.3 4 2W Accessories 2190-8 -16 2187G 52187K 0 34.9 Code 6181870 No. D 21 EWU-10 REVERSIBLE RATCHET 1" Particularly for the demanding use experienced in industry and with utility vehicles Acc. to DIN 3122 ISO 3315 With recessed lever change locks in middle position Return angle 11.25 degrees Push-fit bar handle no. 2187 G For hand-operated sockets and accessories with square drive as per DIN 3120 - D 25 ISO 1174 with locking pin GEDORE vanadium steel 31CrV3 chrome-plated m a Execution " complete 1 25 head only 1 25 tommy bar A mrnn ..3 0 Code No. 1125 810 61.5 5.210 6180550 2193 U-10 184 61.5 1.980 6196120 2193 U-10 K 700 3.275 6195900 2187 G REVERSIBLE RATCHET 1" Especially for working in confined spaces as with utility vehicles Acc. to DIN 3122 ISO 3315 With non-slip metal disc change fine-toothed (72 teeth) and robust Return angle 5 degrees Push-fit tube handle For hand-operated sockets and accessories with square drive as per DIN 3120 - D 25 ISO 1174 with locking pin GEDORE vanadium steel 31CrV3 chrome-plated m S Execution " complete 1 head only 1 tube 25 25 A 5 m 720 76 0 4.160 2.000 2.175 Code 6180630 1637487 1382500 No. 2193 U-3 2193 U-3 K 2193Z 17 U-3 RATCHET HANDLE WITH COUPLER 1" Used throughout industry and the automotive world Acc. to DIN 3122 ISO 3315 With square coupler medium-fine toothed extremely rugged Return angle 9 degrees Push-fit tube handle For hand-operated sockets and accessories with square drive as per DIN 3120 - D 25 ISO 1174 with locking pin GEDORE vanadium steel 31CrV3 chrome-plated Execution " A m -i 0 Code No. complete 1 25 9 720 41 4.115 6181520 2193 Z-94 i head only 1 25 1.175 1493779 2193 Z K lil-w tube 2.175 1382500 2193 Z 17 Z-94 2193 U-10 2193 U-3 225
