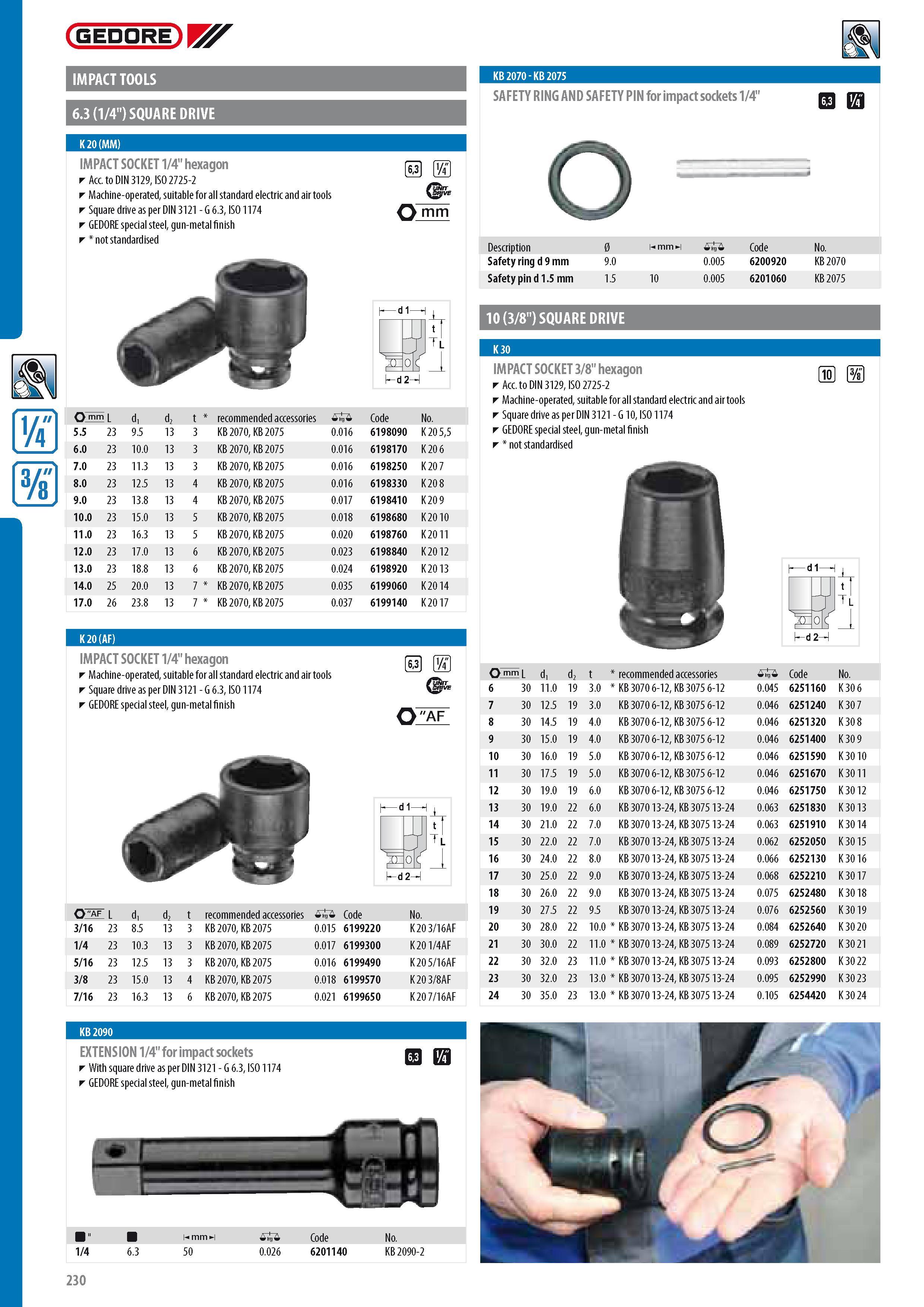

232 Каталог GEDORE 2014 Профессиональный слесарный инструмент и оборудование Стр.230

Каталог GEDORE 2014 Слесарный инструмент Стр. 230 0232 ENG Lab2u

GEDORE IMPACT TOOLS 6.3 (1 4") SQUARE DRIVE K 20 (MM) IMPACT SOCKET 1 4" hexagon Acc. to DIN 3129 ISO 2725-2 Machine-operated suitable for all standard electric and air tools Square drive as per DIN 3121 - G 6.3 ISO 1174 GEDORE special steel gun-metal finish not standardised S M G Q mm h d 1 H kd2 mm L d1 d2 recommended accessories 0 Code No. 5.5 23 9.5 13 3 KB 2070 KB 2075 0.016 6198090 K 20 55 6.0 23 10.0 13 3 KB 2070 KB 2075 0.016 6198170 K 20 6 7.0 23 11.3 13 3 KB 2070 KB 2075 0.016 6198250 K 20 7 8.0 23 12.5 13 4 KB 2070 KB 2075 0.016 6198330 K 20 8 9.0 23 13.8 13 4 KB 2070 KB 2075 0.017 6198410 K 20 9 10.0 23 15.0 13 5 KB 2070 KB 2075 0.018 6198680 K 20 10 11.0 23 16.3 13 5 KB 2070 KB 2075 0.020 6198760 K 20 11 12.0 23 17.0 13 6 KB 2070 KB 2075 0.023 6198840 K 20 12 13.0 23 18.8 13 6 KB 2070 KB 2075 0.024 6198920 K 20 13 14.0 25 20.0 13 7 KB 2070 KB 2075 0.035 6199060 K 20 14 17.0 26 23.8 13 7 KB 2070 KB 2075 0.037 6199140 K 20 17 IMPACT SOCKET 1 4" hexagon Machine-operated suitable for all standard electric and air tools Square drive as per DIN 3121 - G 6.3 ISO 1174 GEDORE special steel gun-metal finish M Q"af b d 1 H KB 2070 - KB 2075 SAFETY RING AND SAFETY PIN for impact sockets 1 4" m b Description 0 m mm ml 0 Code No. Safety ring d 9 mm 9.0 0.005 6200920 KB 2070 Safety pin d 1.5 mm 1.5 10 0.005 6201060 KB 2075 10 (3 8") SQUARE DRIVE IMPACT SOCKET 3 8" hexagon Acc. to DIN 3129 ISO 2725-2 Machine-operated suitable for all standard electric and air tools Square drive as per DIN 3121 - G 10 ISO 1174 GEDORE special steel gun-metal finish not standardised N SI O" L d1 d2 recommended accessories 0 Code No. 3 16 23 8.5 13 3 KB 2070 KB 2075 0.015 6199220 K 20 3 16AF 1 4 23 10.3 13 3 KB 2070 KB 2075 0.017 6199300 K20 1 4AF 5 16 23 12.5 13 3 KB 2070 KB 2075 0.016 0 9 4 9 9 v K 20 5 16AF 3 8 23 15.0 13 4 KB 2070 KB 2075 0.018 0 7 5 9 9 V K 20 3 8AF 7 16 23 16.3 13 6 KB 2070 KB 2075 0.021 6199650 K 20 7 16AF m L d1 d2 recommended accessories 0 Code No. 6 30 11.0 19 3.0 KB 3070 6-12 KB 3075 6-12 0.045 6251160 K 30 6 7 30 12.5 19 3.0 KB 3070 6-12 KB 3075 6-12 0.046 6251240 K 30 7 8 30 14.5 19 4.0 KB 3070 6-12 KB 3075 6-12 0.046 6251320 K 30 8 9 30 15.0 19 4.0 KB 3070 6-12 KB 3075 6-12 0.046 6251400 K 30 9 10 30 16.0 19 5.0 KB 3070 6-12 KB 3075 6-12 0.046 6251590 K 30 10 11 30 17.5 19 5.0 KB 3070 6-12 KB 3075 6-12 0.046 6251670 K 30 11 12 30 19.0 19 6.0 KB 3070 6-12 KB 3075 6-12 0.046 6251750 K 30 12 13 30 19.0 22 6.0 KB 3070 13-24 KB 3075 13-24 0.063 6251830 K 30 13 14 30 21.0 22 7.0 KB 3070 13-24 KB 3075 13-24 0.063 6251910 K 30 14 15 30 22.0 22 7.0 KB 3070 13-24 KB 3075 13-24 0.062 6252050 K 30 15 16 30 24.0 22 8.0 KB 3070 13-24 KB 3075 13-24 0.066 6252130 K 30 16 17 30 25.0 22 9.0 KB 3070 13-24 KB 3075 13-24 0.068 6252210 K 30 17 18 30 26.0 22 9.0 KB 3070 13-24 KB 3075 13-24 0.075 6252480 K 30 18 19 30 27.5 22 9.5 KB 3070 13-24 KB 3075 13-24 0.076 6252560 K 30 19 20 30 28.0 22 10.0 KB 3070 13-24 KB 3075 13-24 0.084 6252640 K 30 20 21 30 30.0 22 11.0 KB 3070 13-24 KB 3075 13-24 0.089 6252720 K 30 21 22 30 32.0 23 11.0 KB 3070 13-24 KB 3075 13-24 0.093 6252800 K 30 22 23 30 32.0 23 13.0 KB 3070 13-24 KB 3075 13-24 0.095 6252990 K 30 23 24 30 35.0 23 13.0 KB 3070 13-24 KB 3075 13-24 0.105 6254420 K 30 24 EXTENSION 1 4" for impact sockets With square drive as per DIN 3121 - G 6.3 ISO 1174 GEDORE special steel gun-metal finish 11 1 4 Code 6201140 No. KB 2090-2 230
