209 Каталог GEDORE 2014 Профессиональный слесарный инструмент и оборудование Стр.207

Каталог GEDORE 2014 Слесарный инструмент Стр. 207 0209 ENG Lab2u

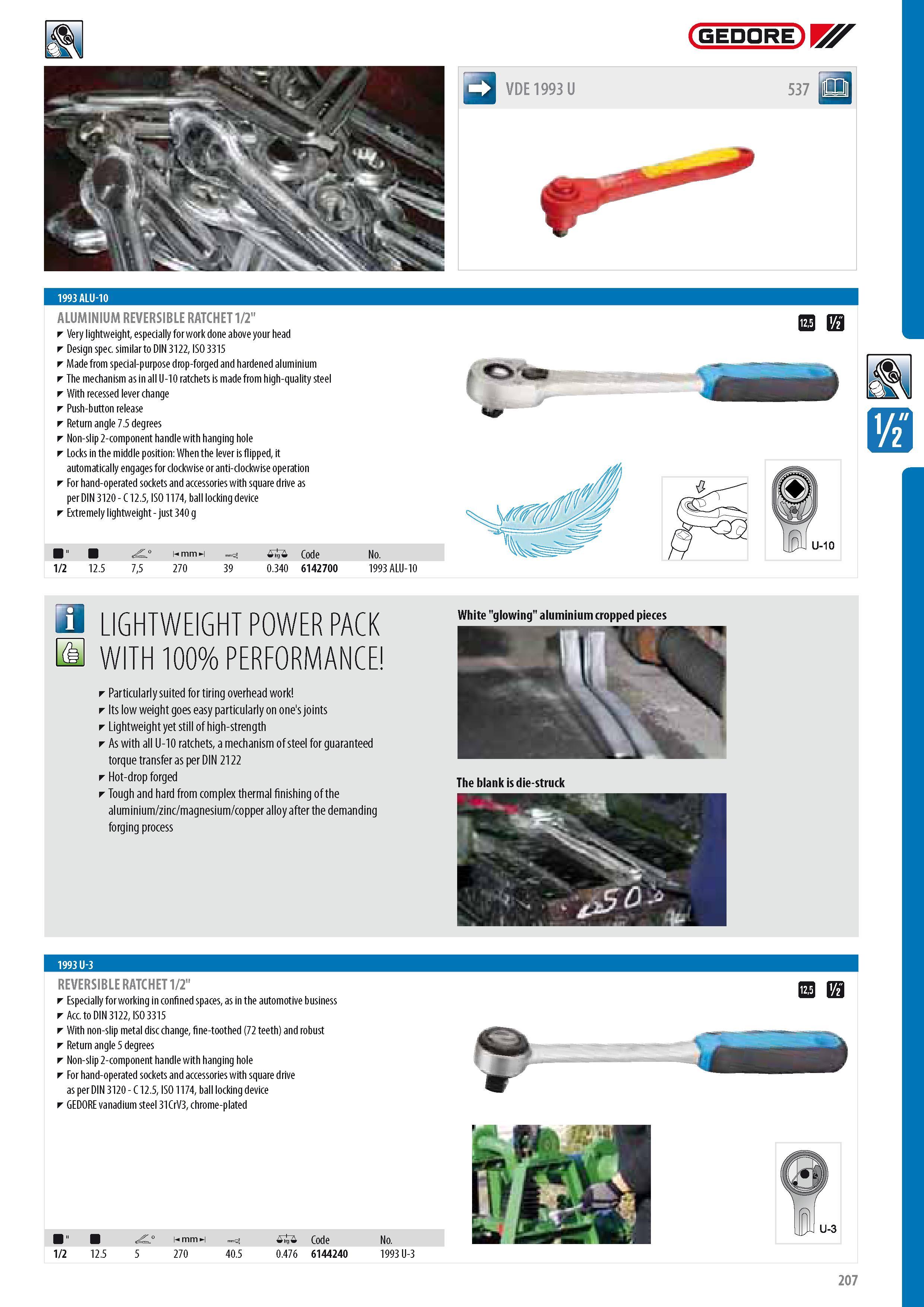

GEDORE A VDE1993U 1993 ALU-10 ALUMINIUM REVERSIBLE RATCHET 1 2" Very lightweight especially for work done above your head Design spec. similar to DIN 3122 ISO 3315 Made from special-purpose drop-forged and hardened aluminium The mechanism as in all U-10 ratchets is made from high-quality steel With recessed lever change Push-button release Return angle 7.5 degrees Non-slip 2-component handle with hanging hole Locks in the middle position When the lever is flipped it automatically engages for clockwise or anti-clockwise operation For hand-operated sockets and accessories with square drive as per DIN 3120 - C 12.5 ISO 1174 ball locking device Extremely lightweight - just 340 g - 1 2 12.5 A 75 270 39 0 Code 0.340 6142700 No. 1993 ALU-10 d U-10 3 LIGHTWEIGHT POWER PACK WITH 100% PERFORMANCE Particularly suited for tiring overhead work Its low weight goes easy particularly on one's joints Lightweight yet still of high-strength As with all U-10 ratchets a mechanism of steel for guaranteed torque transfer as per DIN 2122 Hot-drop forged Tough and hard from complex thermal finishing of the aluminium zinc magnesium copper alloy after the demanding forging process White "glowing" aluminium cropped pieces The blank is die-struck REVERSIBLE RATCHET 1 2" Especially for working in confined spaces as in the automotive business Acc. to DIN 3122 ISO 3315 With non-slip metal disc change fine-toothed (72 teeth) and robust Return angle 5 degrees Non-slip 2-component handle with hanging hole For hand-operated sockets and accessories with square drive as per DIN 3120 - C 12.5 ISO 1174 ball locking device GEDORE vanadium steel 31CrV3 chrome-plated - 1 2 12.5 270 40.5 0 0.476 Code 6144240 No. 1993 U-3 U-3 207 1993 U-3
