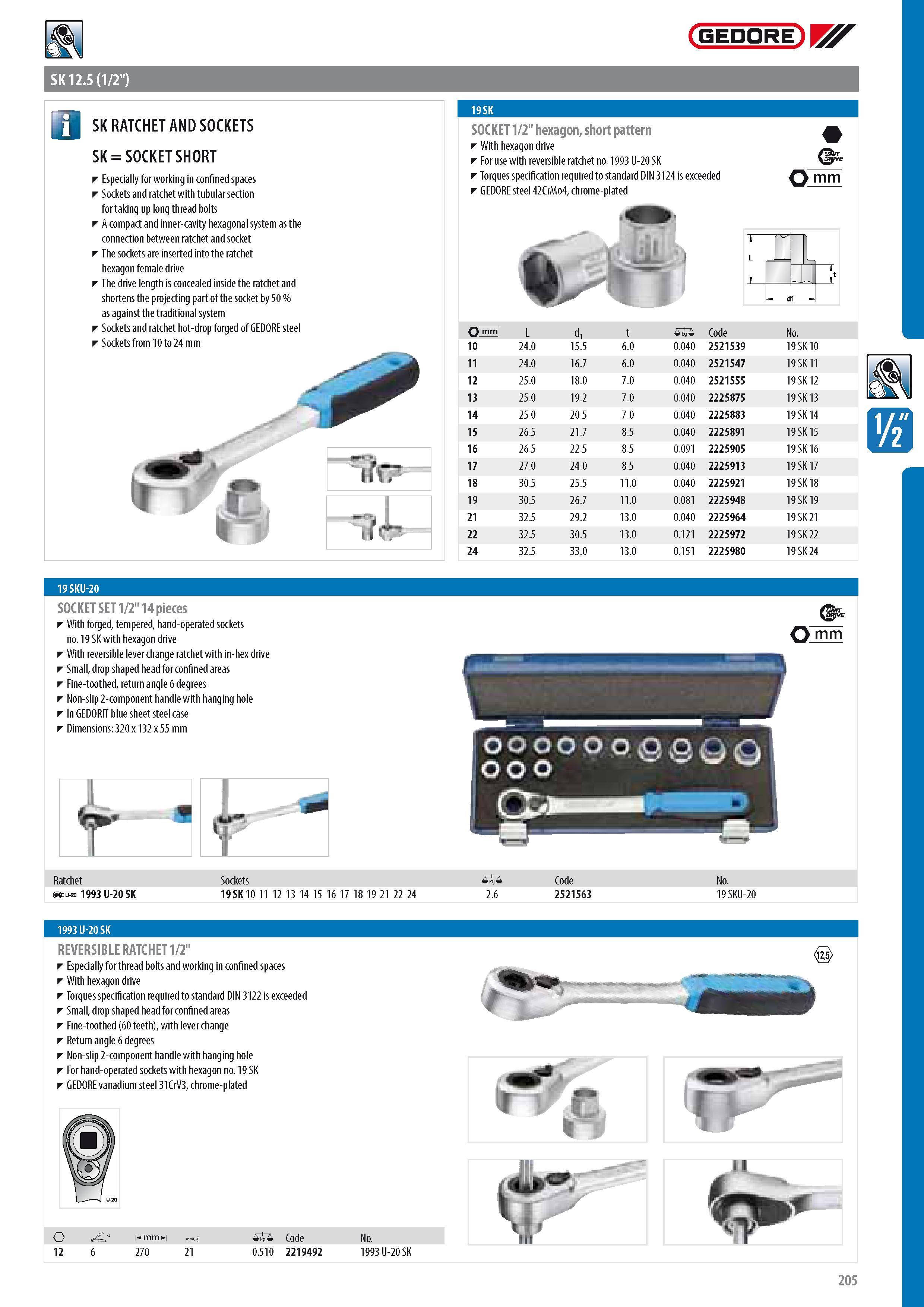

SK RATCHET AND SOCKETS SK SOCKET SHORT Especially for working in confined spaces Sockets and ratchet with tubular section for taking up long thread bolts A compact and inner-cavity hexagonal system as the connection between ratchet and socket The sockets are inserted into the ratchet hexagon female drive The drive length is concealed inside the ratchet and shortens the projecting part of the socket by 50 % as against the traditional system Sockets and ratchet hot-drop forged of GEDORE steel Sockets from 10 to 24 mm nra GEDORE '.ft SOCKET 1 2" hexagon short pattern With hexagon drive For use with reversible ratchet no. 1993 U-20 SK Torques specification required to standard DIN 3124 is exceeded GEDORE steel 42CrMo4 chrome-plated k m L mm L d1 -i0 Code No. 10 24.0 15.5 6.0 0.040 2521539 19 SK 10 11 24.0 16.7 6.0 0.040 2521547 19SK 11 12 25.0 18.0 7.0 0.040 2521555 19SK 12 13 25.0 19.2 7.0 0.040 2225875 19SK 13 14 25.0 20.5 7.0 0.040 2225883 19SK 14 15 26.5 21.7 8.5 0.040 2225891 19SK 15 16 26.5 22.5 8.5 0.091 2225905 19 SK 16 17 27.0 24.0 8.5 0.040 2225913 19SK 17 18 30.5 25.5 11.0 0.040 2225921 19 SK 18 19 30.5 26.7 11.0 0.081 2225948 19 SK 19 21 32.5 29.2 13.0 0.040 2225964 19 SK 21 22 32.5 30.5 13.0 0.121 2225972 19 SK 22 24 32.5 33.0 13.0 0.151 2225980 19 SK 24 d SOCKET SET 1 2" 14 pieces With forged tempered hand-operated sockets no. 19 SK with hexagon drive With reversible lever change ratchet with in-hex drive Small drop shaped head for confined areas Fine-toothed return angle 6 degrees Non-slip 2-component handle with hanging hole In GEDORIT blue sheet steel case Dimensions 320 x 132 x 55 mm REVERSIBLE RATCHET 1 2" Especially for thread bolts and working in confined spaces With hexagon drive Torques specification required to standard DIN 3122 is exceeded Small drop shaped head for confined areas Fine-toothed (60 teeth) with lever change Return angle 6 degrees Non-slip 2-component handle with hanging hole For hand-operated sockets with hexagon no. 19 SK GEDORE vanadium steel 31CrV3 chrome-plated m Ratchet Sockets 0 Code No. 1993 U-20 SK 19 SK 10 11 12 13 14 15 16 17 18 19 21 22 24 2.6 2521563 19SKU-20 1993 U-20 SK 1T % 1 o A m mm ml ..3 0 Code No. 111 El 12 270 0.510 2219492 1993 U-20 SK 6 21 205
