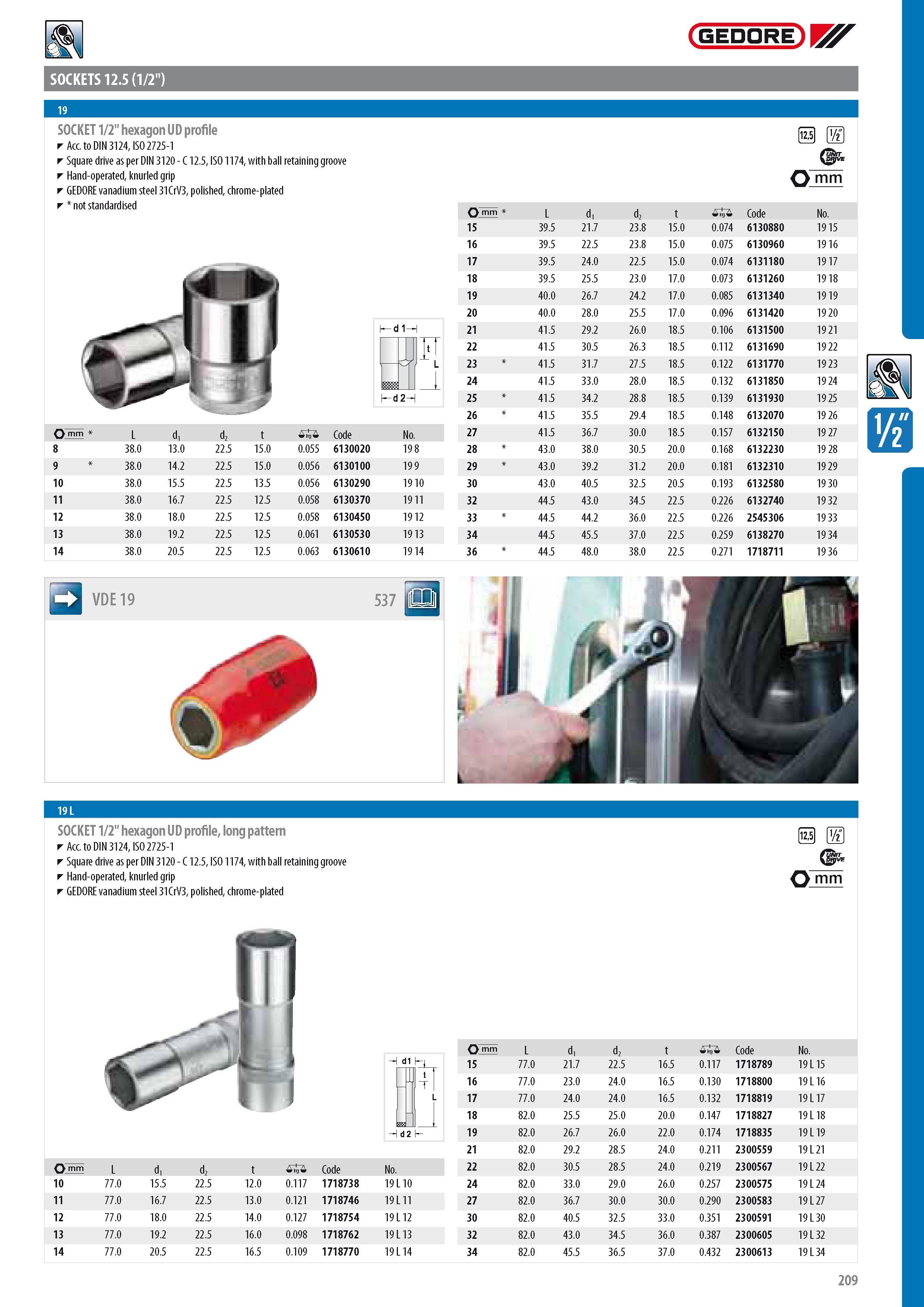

GEDORE SOCKETS 12.5 (1 2) 19 SOCKET 1 2 hexagon UD profile Acc. to DIN 3124 ISO 2725-1 Square drive as per DIN 3120 - C 12.5 ISO 1174 with ball retaining groove Hand-operated knurled grip GEDORE vanadium steel 31CrV3 polished chrome-plated not standardised O T jTtokr Wsmve Q mm hdH F d2H mm L d1 d2 0 Code No. 8 38.0 13.0 22.5 15.0 0.055 6130020 19 8 9 38.0 14.2 22.5 15.0 0.056 6130100 19 9 10 38.0 15.5 22.5 13.5 0.056 6130290 19 10 11 38.0 16.7 22.5 12.5 0.058 6130370 19 11 12 38.0 18.0 22.5 12.5 0.058 6130450 19 12 13 38.0 19.2 22.5 12.5 0.061 6130530 19 13 14 38.0 20.5 22.5 12.5 0.063 6130610 19 14 m L d1 d2 0 Code No. 15 39.5 21.7 23.8 15.0 0.074 6130880 19 15 16 39.5 22.5 23.8 15.0 0.075 6130960 19 16 17 39.5 24.0 22.5 15.0 0.074 6131180 19 17 18 39.5 25.5 23.0 17.0 0.073 6131260 19 18 19 40.0 26.7 24.2 17.0 0.085 6131340 19 19 20 40.0 28.0 25.5 17.0 0.096 6131420 19 20 21 41.5 29.2 26.0 18.5 0.106 6131500 19 21 22 41.5 30.5 26.3 18.5 0.112 6131690 19 22 23 41.5 31.7 27.5 18.5 0.122 6131770 19 23 24 41.5 33.0 28.0 18.5 0.132 6131850 19 24 25 41.5 34.2 28.8 18.5 0.139 6131930 19 25 26 41.5 35.5 29.4 18.5 0.148 6132070 19 26 27 41.5 36.7 30.0 18.5 0.157 6132150 19 27 28 43.0 38.0 30.5 20.0 0.168 6132230 19 28 29 43.0 39.2 31.2 20.0 0.181 6132310 19 29 30 43.0 40.5 32.5 20.5 0.193 6132580 19 30 32 44.5 43.0 34.5 22.5 0.226 6132740 19 32 33 44.5 44.2 36.0 22.5 0.226 2545306 19 33 34 44.5 45.5 37.0 22.5 0.259 6138270 19 34 36 44.5 48.0 38.0 22.5 0.271 1718711 19 36 J VDE 19 H d1 H H d 2 h- m L d1 d2 0 Code No. 10 77.0 15.5 22.5 12.0 0.117 1718738 19 L 10 11 77.0 16.7 22.5 13.0 0.121 1718746 19 L 11 12 77.0 18.0 22.5 14.0 0.127 1718754 19 L 12 13 77.0 .2 9. 22.5 16.0 0.098 1718762 19 L 13 14 77.0 20.5 .5 2. 2 16.5 0.109 1718770 19 L 14 d 1 19 L SOCKET 1 2 hexagon UD profile long pattern Acc. to DIN 3124 ISO 2725-1 O T Square drive as per DIN 3120 - C 12.5 ISO 1174 with ball retaining groove Hand-operated knurled grip GEDORE vanadium steel 31CrV3 polished chrome-plated m m L d1 d2 0 Code No. 15 77.0 21.7 22.5 16.5 0.117 1718789 19 L 15 16 77.0 23.0 24.0 16.5 0.130 1718800 19 L 16 17 77.0 24.0 24.0 16.5 0.132 1718819 19 L 17 18 82.0 25.5 25.0 20.0 0.147 1718827 19 L 18 19 82.0 26.7 26.0 22.0 0.174 1718835 19 L 19 21 82.0 29.2 28.5 24.0 0.211 2300559 19 L 21 22 82.0 30.5 28.5 24.0 0.219 2300567 19 L 22 24 82.0 33.0 29.0 26.0 0.257 2300575 19 L 24 27 82.0 36.7 30.0 30.0 0.290 2300583 19 L 27 30 82.0 40.5 32.5 33.0 0.351 2300591 19 L 30 32 82.0 43.0 34.5 36.0 0.387 2300605 19 L 32 34 82.0 45.5 36.5 37.0 0.432 2300613 19 L 34 209
