794 Каталог FACOM 2013 Профессиональный ручной инструмент и оборудование Стр.768

Каталог FACOM 2013 Инструмент Оборудование Стр. 768 0794 ENG Lab2u

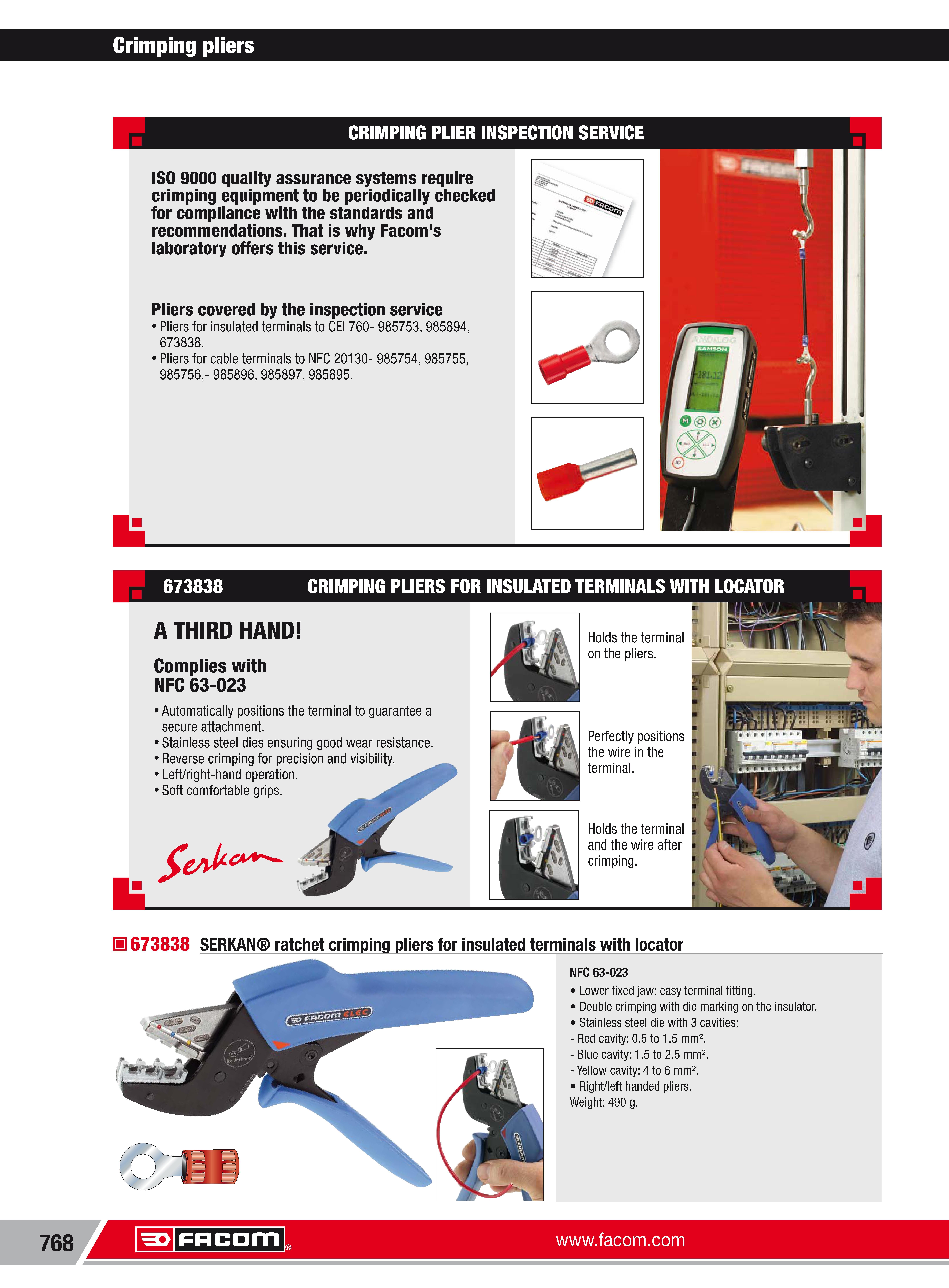

Crimping pliers ISO 9000 quality assurance systems require crimping equipment to be periodically checked for compliance with the standards and recommendations. That is why Facom's laboratory offers this service. Pliers covered by the inspection service Pliers for insulated terminals to CEI760- 985753985894 673838. Pliers for cable terminals to NFC 20130- 985754985755 985756- 985896985897985895. 673838 CRIMPING PLIERS FOR INSULATED TERMINALS WITH LOCATOR A THIRD HAND Complies with NFC 63-023 Automatically positions the terminal to guarantee a secure attachment. Stainless steel dies ensuring good wear resistance. Reverse crimping for precision and visibility. Left right-hand operation. Soft comfortable grips. Holds the terminal on the pliers. Perfectly positions the wire in the terminal. Holds the terminal and the wire after crimping. H 673838 SERKAN ratchet crimping pliers for insulated terminals with locator NFC 63-023 Lower Axed jaw easy terminal fitting. Double crimping with die marking on the insulator. Stainless steel die with 3 cavities Red cavity 0.5 to 1.5 mm2. Blue cavity 1.5 to 2.5 mm2. Yellow cavity 4to6 mm2. Right left handed pliers. Weight 490 g. 768 Facom
