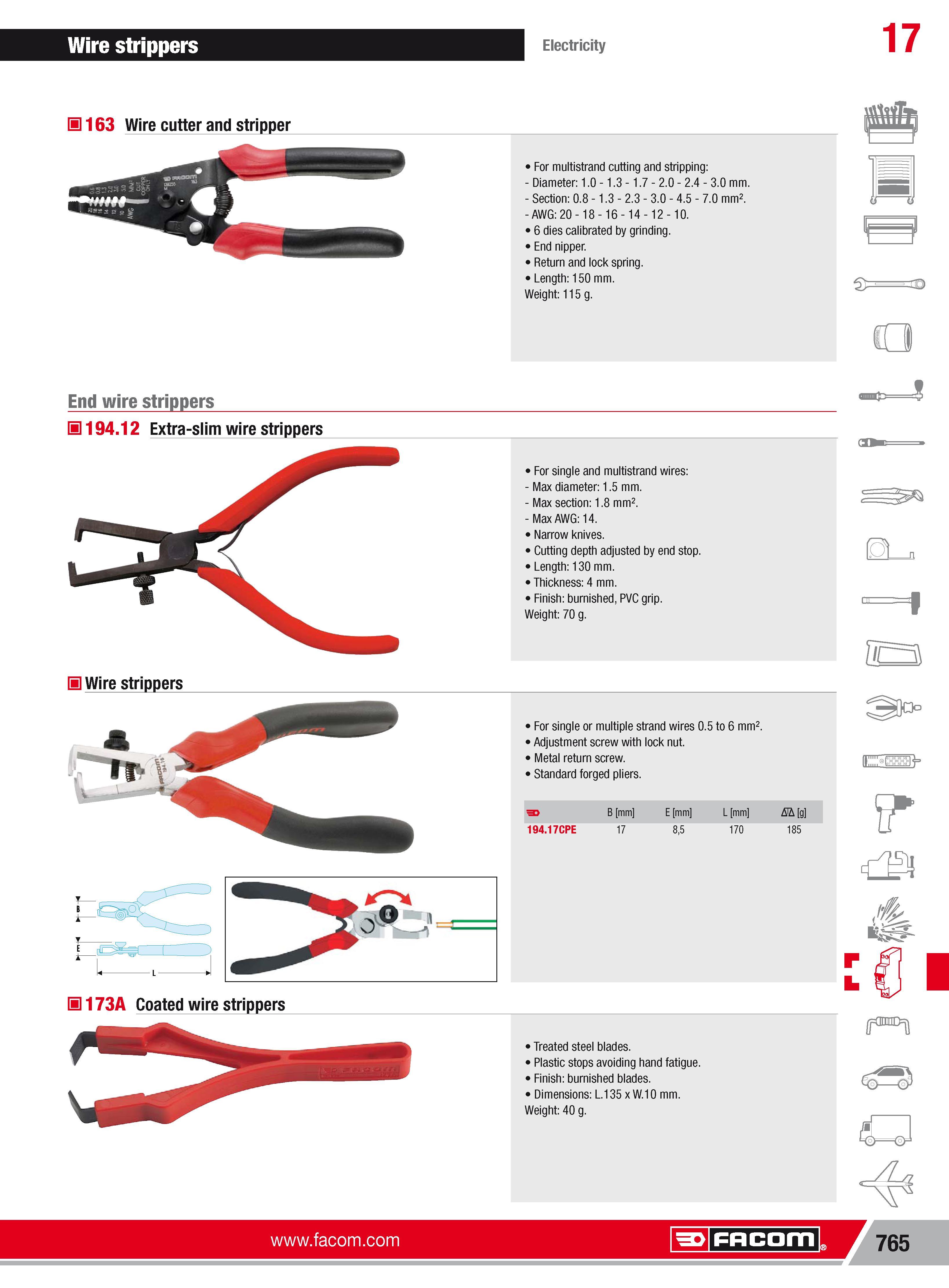

Wire strippers Electricity 17 H163 Wire cutter and stripper For multistrand cutting and stripping Diameter 1.0-1.3-1.7-2.0- 2.4 3.0 mm. Section 0.8 -1.3- 2.3 3.0 4.5 7.0 mm2. -AWG 20-18-16-14-12-10. 6 dies calibrated by grinding. End nipper. Return and lock spring. Length 150 mm. Weight 115g. 4 End wire strippers c H 194.12 Extra-slim wire strippers Wire strippers H173A Coated wire strippers For single and multistrand wires Max diameter 1.5 mm. Max section 1.8 mm2. -Max AWG 14. Narrow knives. Cutting depth adjusted by end stop. Length 130 mm. Thickness 4 mm. Finish burnished PVC grip. Weight 70 g. For single or multiple strand wires 0.5 to 6 mm2. Adjustment screw with lock nut. Metal return screw. Standard forged pliers. B mm E mm L mm Nh g 194.17CPE 17 85 170 185 r Treated steel blades. Plastic stops avoiding hand fatigue. Finish burnished blades. Dimensions L.135x W.10 mm. Weight 40 g. Facom 765
