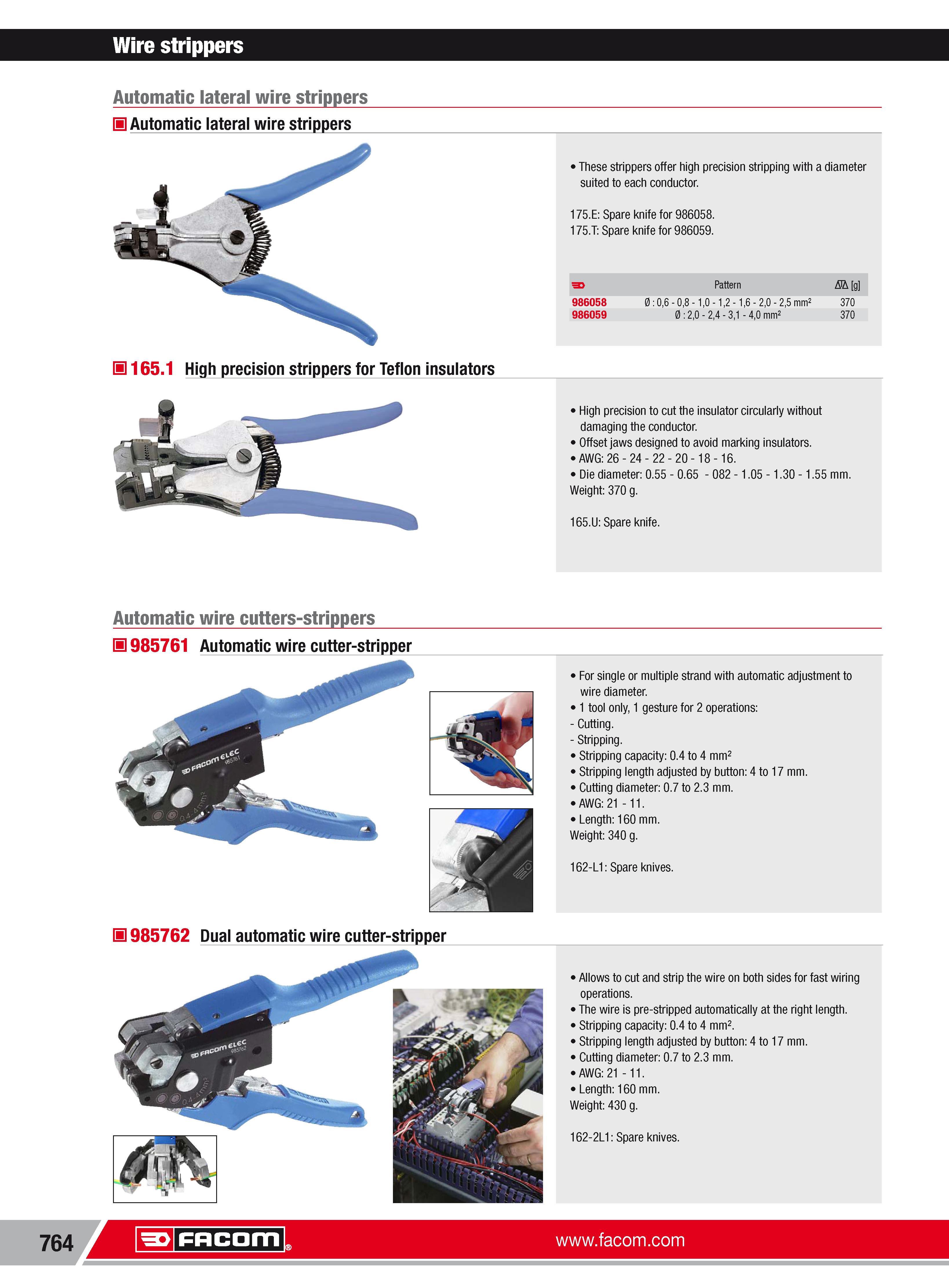

790 Каталог FACOM 2013 Профессиональный ручной инструмент и оборудование Стр.764

Каталог FACOM 2013 Инструмент Оборудование Стр. 764 0790 ENG Lab2u

Wire strippers Automatic lateral wire strippers H Automatic lateral wire strippers H 165.1 High precision strippers for Teflon insulators These strippers offer high precision stripping with a diameter suited to each conductor. 175.E Spare knife for 986058. 175.T Spare knife for 986059. Pattern Nh g 986058 0:O6-O8-1O-12-16-2O-25 mm2 370 986059 0:20- 24 31 40 mm2 370 High precision to cut the insulator circularly without damaging the conductor. Offsetjaws designed to avoid marking insulators. AWG 26- 24- 22- 20- 18- 16. Die diameter 0.55 0.65 082- 1.05 1.30- 1.55 mm. Weight 370 g. 165.U Spare knife. Automatic wire cutters-strippers H 985761 Automatic wire cutter-stripper For single or multiple strand with automatic adjustment to wire diameter. 1 tool only 1 gesture for 2 operations Cutting. Stripping. Stripping capacity 0.4 to 4 mm2 Stripping length adjusted by button 4to17 mm. Cutting diameter 0.7 to 2.3 mm. AWG 21-11. Length 160 mm. Weight 340 g. 162-L1 Spare knives. H 985762 Dual automatic wire cutter-stripper 764 Allows to cut and strip the wire on both sides for fast wiring operations. The wire is pre-stripped automatically at the right length. Stripping capacity 0.4 to 4 mm2. Stripping length adjusted by button 4to17 mm. Cutting diameter 0.7 to 2.3 mm. AWG 21-11. Length 160 mm. Weight 430 g. 162-2L1 Spare knives. Facom
