795 Каталог FACOM 2013 Профессиональный ручной инструмент и оборудование Стр.769

Каталог FACOM 2013 Инструмент Оборудование Стр. 769 0795 ENG Lab2u

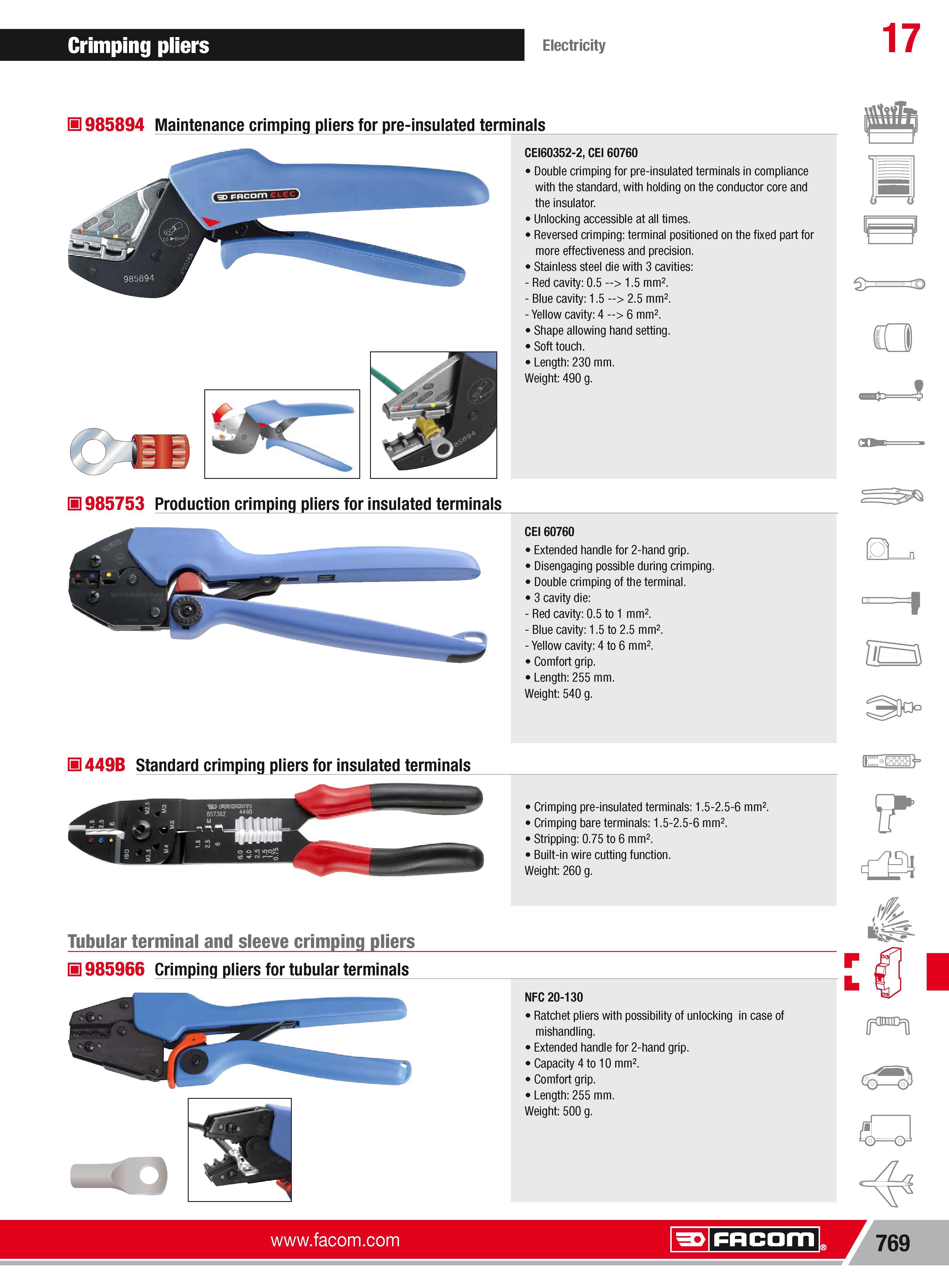

Crimping pliers Electricity 17 H 985894 Maintenance crimping pliers for pre-insulated terminals CEI60352-2 CEI 60760 Double crimping for pre-insulated terminals in compliance with the standard with holding on the conductor core and the insulator. Unlocking accessible at all times. Reversed crimping terminal positioned on the fixed part for more effectiveness and precision. Stainless steel die with 3 cavities Red cavity 0.5 1.5 mm2. Blue cavity 1.5 2.5 mm2. Yellow cavity 4 6 mm2. Shape allowing hand setting. Soft touch. Length 230 mm. Weight 490 g. 4 H 985753 Production crimping pliers for insulated terminals CEI 60760 Extended handle for 2-hand grip. Disengaging possible during crimping. Double crimping of the terminal. 3 cavity die Red cavity 0.5 to 1 mm2. Blue cavity 1.5 to 2.5 mm2. Yellow cavity 4to6 mm2. Comfort grip. Length 255 mm. Weight 540 g. r H449B Standard crimping pliers for insulated terminals Tubular terminal and sleeve crimping pliers H 985966 Crimping pliers for tubular terminals Crimping pre-insulated terminals 1.5-2.5-6 mm2. Crimping bare terminals 1.5-2.5-6 mm2. Stripping 0.75 to 6 mm2. Built-in wire cutting function. Weight 260 g. NFC 20-130 Ratchet pliers with possibility of unlocking in case of mishandling. Extended handle for 2-hand grip. Capacity 4to10 mm2. Comfort grip. Length 255 mm. Weight 500 g. Facom 769
