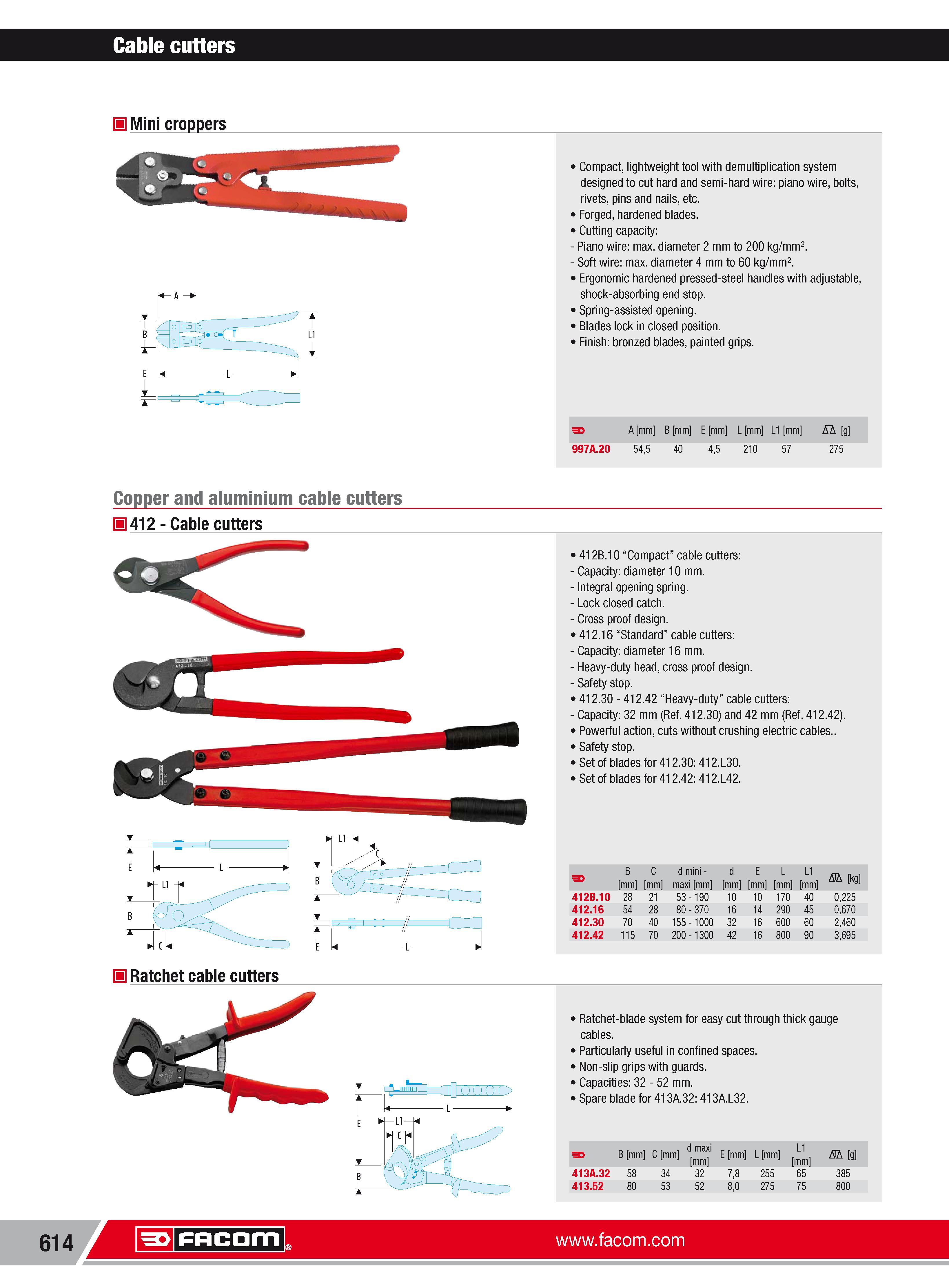

640 Каталог FACOM 2013 Профессиональный ручной инструмент и оборудование Стр.614

Каталог FACOM 2013 Инструмент Оборудование Стр. 614 0640 ENG Lab2u

Cable cutters H Mini croppers L1 1 Compact lightweight tool with demultiplication system designed to cut hard and semi-hard wire piano wire bolts rivets pins and nails etc. Forged hardened blades. Cutting capacity Piano wire max. diameter 2 mm to 200 kg mm2. Soft wire max. diameter 4 mm to 60 kg mm2. Ergonomic hardened pressed-steel handles with adjustable shock-absorbing end stop. Spring-assisted opening. Blades lock in closed position. Finish bronzed blades painted grips. A mm B mm E mm L mm L1 mm Nh g 997A.20 545 40 45 210 57 275 Copper and aluminium cable cutters 412 Cable cutters 412B.10 Compact cable cutters Capacity diameterlO mm. Integral opening spring. Lock closed catch. Cross proof design. 412.16 Standard cable cutters Capacity diameter 16 mm. Heavy-duty head cross proof design. Safety stop. 412.30 412.42 Heavy-duty cable cutters Capacity 32 mm (Ref. 412.30) and 42 mm (Ref. 412.42). Powerful action cuts without crushing electric cables.. Safety stop. Set of blades for 412.30:412.L30. Set of blades for 412.42:412.L42. H Ratchet cable cutters r -minni j --J ()()() Ratchet-blade system for easy cut through thick gauge cables. Particularly useful in confined spaces. Non-slip grips with guards. Capacities 32 52 mm. Spare blade for 413A.32:413A.L32. B mm C mm d maxi mm E mm L mm L1 mm Nh g 413A.32 58 34 32 78 cn Cn 65 385 413.52 80 53 52 80 275 75 800 614 Facom
