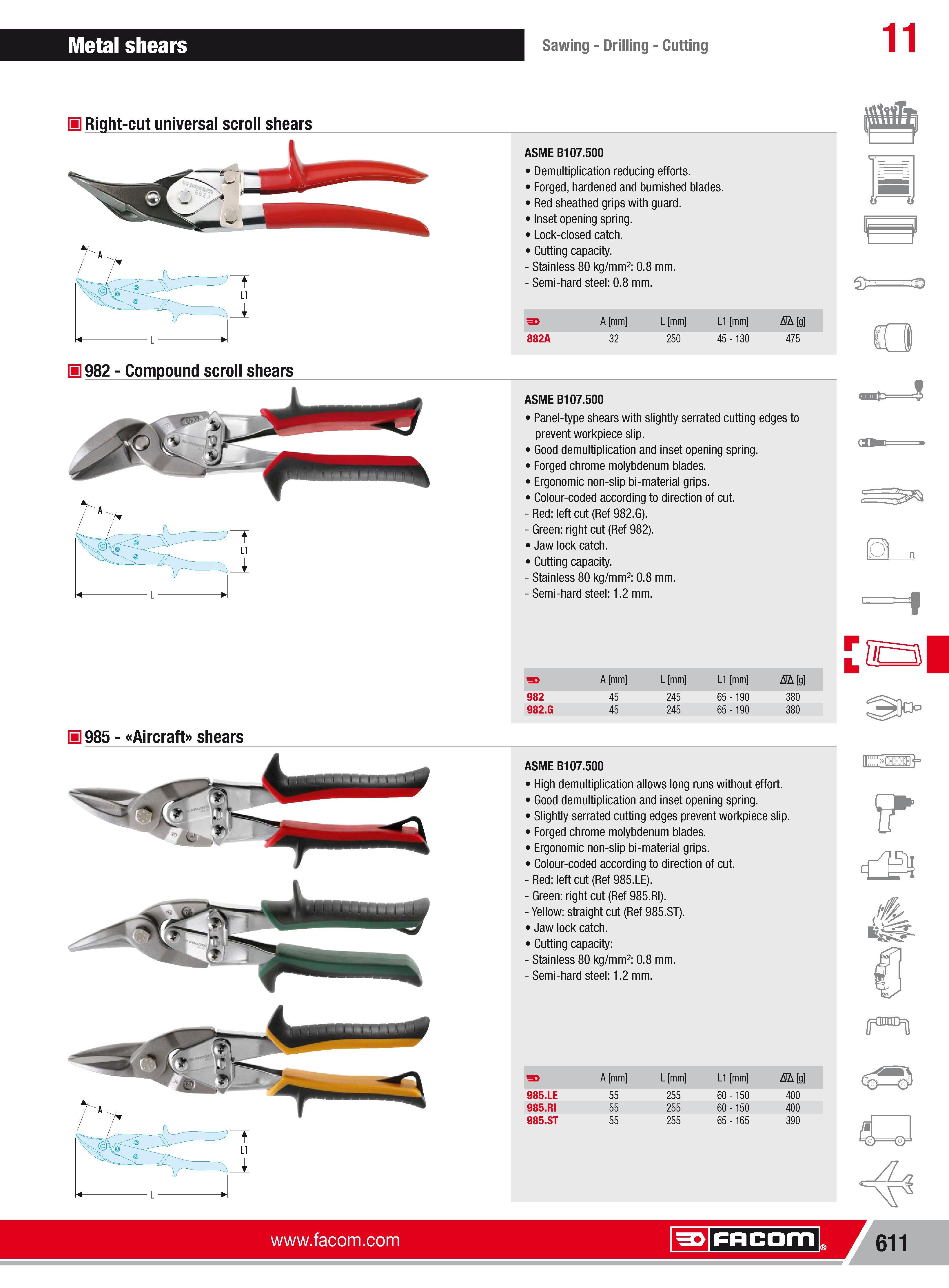

637 Каталог FACOM 2013 Профессиональный ручной инструмент и оборудование Стр.611

Каталог FACOM 2013 Инструмент Оборудование Стр. 611 0637 ENG Lab2u

Metal shears Sawing Drilling Cutting 11 H Right-cut universal scroll shears 982 Compound scroll shears t L1 985 Aircraft shears ASME B107.500 Demultiplication reducing efforts. Forged hardened and burnished blades. Red sheathed grips with guard. Inset opening spring. Lock-closed catch. Cutting capacity. Stainless 80 kg mm2 0.8 mm. Semi-hard steel 0.8 mm. A mm L mm L1 mm Nh g 882A 32 250 45 -130 475 s ASME B107.500 Panel-type shears with slightly serrated cutting edges to prevent workpiece slip. Good demultiplication and inset opening spring. Forged chrome molybdenum blades. Ergonomic non-slip bi-material grips. Colour-coded according to direction of cut. Red left cut (Ref 982.G). Green right cut (Ref 982). Jaw lock catch. Cutting capacity. Stainless 80 kg mm2 0.8 mm. Semi-hard steel 1.2 mm. c r A mm L mm L1 mm Nh g 982 45 245 65 -190 380 982.G 45 245 65 -190 380 S3 ASME B107.500 High demultiplication allows long runs without effort. Good demultiplication and inset opening spring. Slightly serrated cutting edges prevent workpiece slip. Forged chrome molybdenum blades. Ergonomic non-slip bi-material grips. Colour-coded according to direction of cut. Red left cut (Ref 985.LE). Green right cut (Ref 985.RI). Yellow straight cut (Ref 985.ST). Jaw lock catch. Cutting capacity Stainless 80 kg mm2 0.8 mm. Semi-hard steel 1.2 mm. A mm L mm L1 mm Nh g 985.LE 55 cn Cn 60 -150 400 985.RI 55 cn Cn 60 -150 400 985.ST 55 Cn Cn Cn 390 Facom 611 Facom
