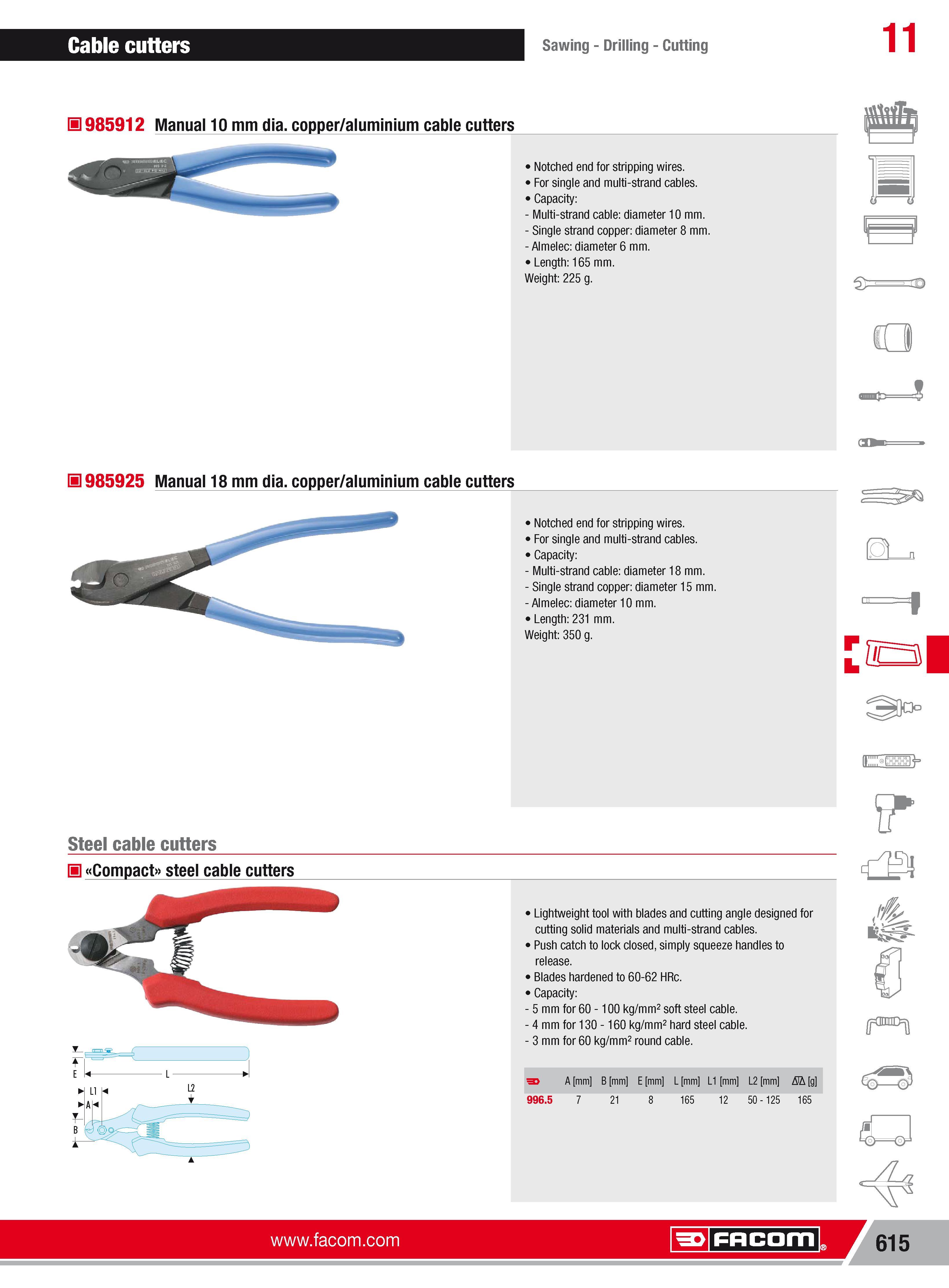

641 Каталог FACOM 2013 Профессиональный ручной инструмент и оборудование Стр.615

Каталог FACOM 2013 Инструмент Оборудование Стр. 615 0641 ENG Lab2u

Cable cutters Sawing Drilling Cutting H 985912 Manual 10 mm dia. copper aluminium cable cutters Notched end for stripping wires. For single and multi-strand cables. Capacity Multi-strand cable diameterlO mm. Single strand copper diameter 8 mm. Almelec diameter 6 mm. Length 165 mm. Weight 225 g. H 985925 Manual 18 mm dia. copper aluminium cable cutters Notched end for stripping wires. For single and multi-strand cables. Capacity Multi-strand cable diameter18 mm. Single strand copper diameter15 mm. Almelec diameter 10 mm. Length 231 mm. Weight 350 g. Steel cable cutters H Compact steel cable cutters E Lightweight tool with blades and cutting angle designed for cutting solid materials and multi-strand cables. Push catch to lock closed simply squeeze handles to release. Blades hardened to 60-62 HRc. Capacity 5 mm for 60- 100 kg mm2 soft steel cable. 4 mm for 130 160 kg mm2 hard steel cable. 3 mm for 60 kg mm2 round cable. 3 A mm B mm E mm L mm L1 mm L2 mm Nh g 996.5 7 21 8 165 12 50- 125 165 11 cr Facom 615
