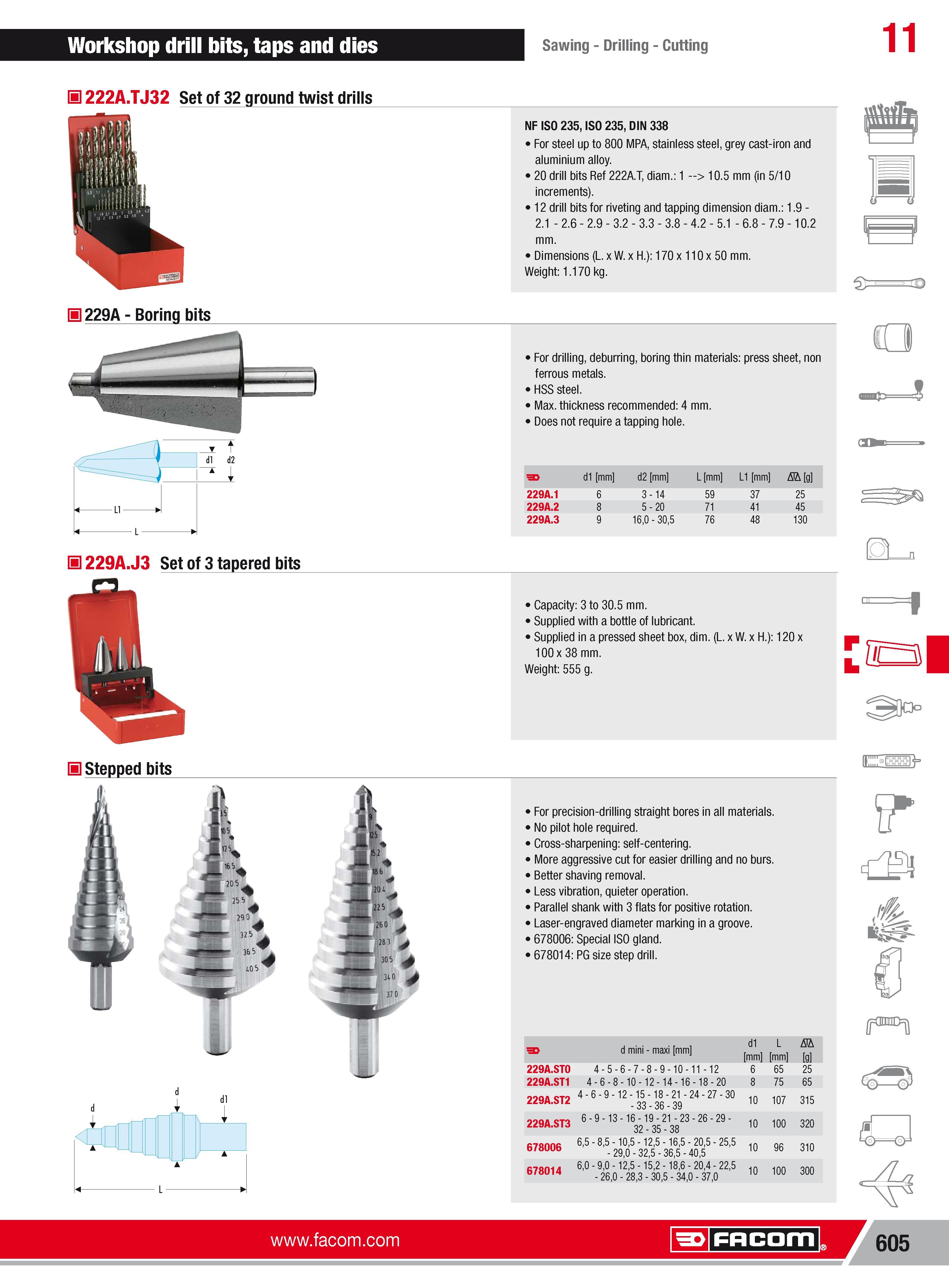

631 Каталог FACOM 2013 Профессиональный ручной инструмент и оборудование Стр.605

Каталог FACOM 2013 Инструмент Оборудование Стр. 605 0631 ENG Lab2u

Workshop drill bits taps and dies Sawing Drilling Cutting 11 H 222A.TJ32 Set of 32 ground twist drills H 229A Boring bits 'Ti t dl d2 A 1 Ll 1 L H 229A.J3 Set of 3 tapered bits H Stepped bits d 1 i-N A U' di i A NF ISO 235 ISO 235 DIN 338 For steel up to 800 MPA stainless steel grey cast-iron and aluminium alloy. 20 drill bits Ref 222A.T diam. 1 10.5 mm (in 5 10 increments). 12 drill bits for riveting and tapping dimension diam. 1.9 -2.1 2.6 2.9 3.2 3.3 3.8 4.2 5.1 6.8 7.9 -10.2 mm. Dimensions (L.xW.x H.) 170x 110x50 mm. Weight 1.170 kg. For drilling deburring boring thin materials press sheet non ferrous metals. HSS steel. Max. thickness recommended 4 mm. Does not require a tapping hole. d1 mm d2 mm L mm L1 mm Nh g 229A.1 6 3-14 59 37 25 229A.2 8 5-20 71 41 45 229A.3 9 160-305 76 48 130 Capacity 3to30.5mm. Supplied with a bottle of lubricant. Supplied in a pressed sheet box dim. (L.xW.x H.) 120x 100x38 mm. Weight 555 g. For precision-drilling straight bores in all materials. No pilot hole required. Cross-sharpening self-centering. More aggressive cut for easier drilling and no burs. Better shaving removal. Less vibration quieter operation. Parallel shank with 3 flats for positive rotation. Laser-engraved diameter marking in a groove. 678006 Special ISO gland. 678014 PG size step drill. d mini maxi mm d1 mm L mm Nh g 229A.ST0 4-5-6-7-8-9-10-11-12 6 65 25 229A.ST1 4-6-8-10-12-14-16-18-20 8 75 65 229A.ST2 4- 6 -9 12 15 18 21 24- 27 -30 33 -36 -39 10 107 315 229A.ST3 6 -9 13 16 19 21 23 26 29 -32 35 38 10 100 320 678006 65 -85 105 125 165 205- 255 290 325 365 405 10 96 310 678014 60 -90 125 152 186 204- 225 260 283 305 340 370 10 100 300 Facom 4 cr- -Hr. 605 d L Facom
